Fishman POWERTAP INFINITY Installation Manual page 6

Tap Body Sensor Installation continued...
3. With both locator pins inserted, gently push the
sensor into place on the bridge plate. Hold
against the bridge plate with firm pressure for
30 seconds.
Once the sensor is attached to the bridge plate
remove the mounting tool and golf tees.
VOLUME & TONE MODULE and BLEND
MODULE
The PowerTap Infinity comes ready to install into a steel
string instrument. For steel string instruments, move to
the next step: Volume & Tone Module Installation
For Control Module Installation in a Nylon String Guitar
see: Classical Style Control Modules on page 8
Volume & Tone module Installation
Control Module locations:
Test the area where you will mount the Volume & Tone
control module. Remove any lacquer and/or buffing
compound from this area using fine grit sandpaper. Clean this
surface with an alcohol wipe or a cotton swab moistened with
rubbing alcohol. Let dry.
Note: For the strongest bond we recommend a water-based
primer/sealer be applied to the bare wood inside the
soundhole. A light film of yellow wood glue spread by
fingertip works well for this application. Let the primer/ sealer
dry before continuing.
Peel back the release film on the bottom of the control
module, add a small dot of gel type cyanoacrylate to the
center of the adhesive and fasten the preamp to the
underside of the soundhole. Locate the module flush with the
edge of the soundhole, on the bass side, between the

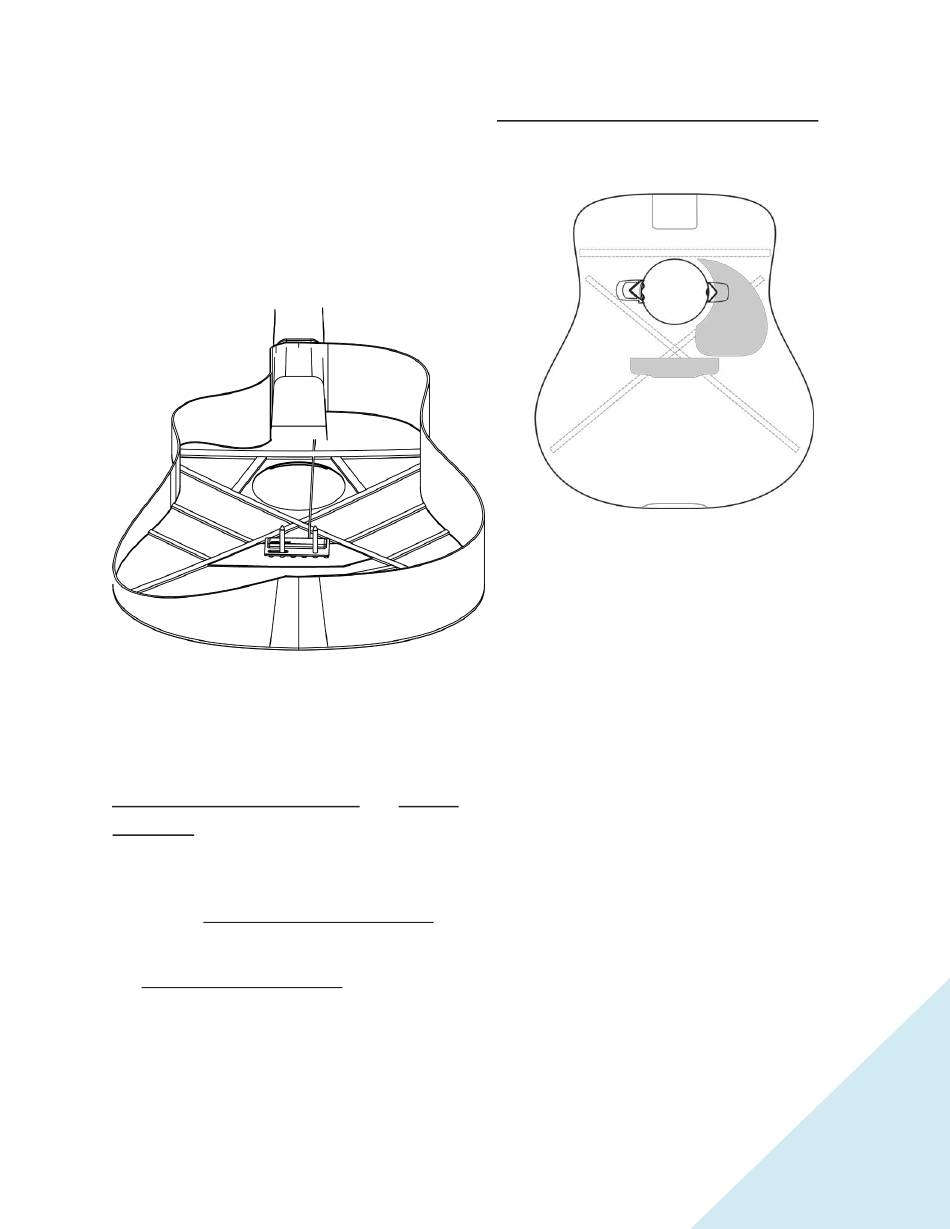

transverse brace and the bass-side x-brace (see illustration).
Apply even, steady pressure to the module for 30-45 seconds
to set the adhesive. The adhesive achieves maximum hold
after 24 hours.
- 6 -
