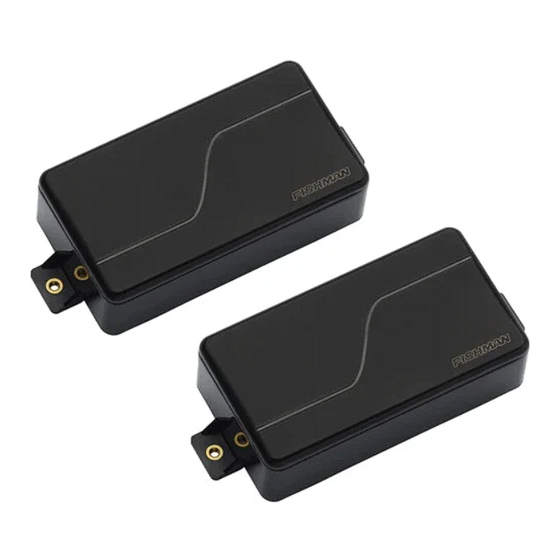

FLUENCE SIGNATURE SERIES STEPHEN CARPENTER
INSTALLATION GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLUENCE SIGNATURE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fishman FLUENCE SIGNATURE Series

Summary of Contents for Fishman FLUENCE SIGNATURE Series

  • Page 1 FLUENCE SIGNATURE SERIES STEPHEN CARPENTER INSTALLATION GUIDE...

  • Page 2: System Requirements

    TARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE OR ANY OTHER FAULT of Fishman, including but not limited to equipment malfunction from whatever cause, or any other fault of Fishman. Additionally, you agree to indemnify, defend...

  • Page 3: Getting Started

    Fishman Fluence Pickups are low impedance and perform ideally with 25K audio taper potentiometers.
  • Page 4 The preamps on Fishman Fluence pickups are not suitable for use with other brands of guitar pickups. 4. All Pickup Voicing, High Frequency Tilt (HF Tilt) and Gain reduction features are selected by connecting their leads to Ground.
  • Page 5 Fluence Stephen Carpenter - Connection Points & Functions 1. Voice-2 Select Wire - Voice-1 is the default voice with no voice pins grounded/selected. To select Voice-2, connect this pin to ground through a switch contact or permanently by soldering it to any ground or by using one of the included jumpers across the pins.
  • Page 6 3. Voice-3 Inner Single Coil Select Wire - To select Voice-3 with Inner Coil, connect this pin to ground through a switch contact. In the most common Modern set configuration (Ceramic in the bridge position and Alnico in the neck) this pin engages Voice-3 with the inner coils active (Neck side / South Coil for Ceramic and Bridge side / North Coil for Alnico).
  • Page 7 5. SCO (South Coil Out) - This solder pad is used to conveniently access the south coil output on each pickup for HSH (Humbucker, Single, Humbucker) and HSS pickup combina- tions using the Fluence SSA Single width pickup. The south coil is on the neck side of each pickup. The SSA pickup is a north coil, allowing hum cancelling combinations in the 2&4 positions on a 5-way pickup switch.
  • Page 8 9V Battery Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) Volume Tone - Pull for Voice-2 (1,3,& 5 positions) Oak Grigsby 5-way Superswitch Voice-1 Lo-Gain mode suggested when using in Neck position. Select via jumper as shown or use the cable wired Ring to Ground.
  • Page 9 9V Battery Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) Volume, Tone (Pull for V3 Coil Flip) 3-way Blade Pickup Selector Mini Toggles for Voice Select Voice-1 Lo-Gain mode suggested when using in Neck position. Select via jumper Bridge as shown or use the cable wired...
  • Page 10 9V Battery Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) Volume, Tone (Pull for V3 Coil Flip) 3-way Toggle Pickup Selector Mini Toggles for Voice Select Voice-1 Lo-Gain mode suggested when using in Neck position. Select via jumper Bridge as shown or use the cable wired...
  • Page 11 Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) Volume 3-way Mini Toggle for Voice Select Voice-1 Lo-Gain mode suggested when using in Neck position. 9V Battery Select via jumper Output as shown or use Ring the cable wired Jack to Ground.
  • Page 12 Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) Volume: Pull for Voice-3 (Single Coil) Bridge & Neck Tone: Pull for Voice-2 Bridge & Neck Voice-1 Lo-Gain mode suggested when using in Neck position. 9V Battery Select via jumper Output as shown or use Ring...
  • Page 13 Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) Bridge Volume Neck Volume: Pull for Voice-3 (Single Coil) Bridge & Neck Tone: Pull for Voice-2 Bridge & Neck Voice-1 Lo-Gain mode suggested when using in Neck position. 9V Battery Select via jumper Output as shown or use...
  • Page 14 Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) 2 x Volume Bridge Tone: Pull for Voice-2 Bridge & Neck Neck Tone: Pull for Voice-3 (Single Coil) Bridge & Neck Voice-1 Lo-Gain mode suggested when using in Neck position. 9V Battery Select via jumper Output...
  • Page 15 Stephen Carpenter V2 Set 6, 7, & 8-string (6-string shown) Bridge Volume: Pull for Voice-3 Outer Coil Select (Inner Coil Default) Neck Volume: Pull for Voice-3 (Single Coil) Bridge & Neck Tone: Pull for Voice-2 Bridge & Neck Voice-1 Lo-Gain mode suggested when using in Neck position.
  • Page 16 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 514-300-247_r0 08/21 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 514-300-258_r0 04/24...
