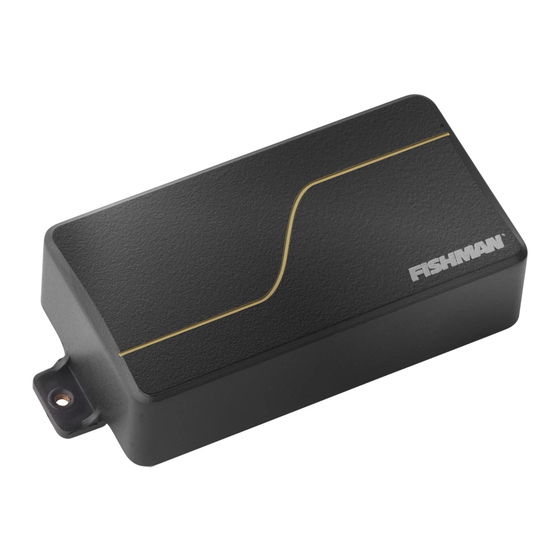

- Page 1 ELLIE MITCHELL PHOTOGRAPHY FLUENCE CUSTOM SERIES MATT HEAFY PICKUP SET INSTALLATION GUIDE...
-
Page 2: System Requirements
TARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE OR ANY OTHER FAULT of Fishman, including but not limited to equipment malfunction from whatever cause, or any other fault of Fishman. Additionally, you agree to indemnify, defend... -
Page 3: Getting Started
Fishman Fluence Pickups are low impedance and perform ideally with 25K audio taper potentiometers. - Page 4 The preamps on Fishman Fluence pickups are not suitable for use with other brands of guitar pickups. 4. All Pickup Voicing, High Frequency Tilt (HF Tilt) and Gain reduction features are selected by connecting their leads to Ground.
- Page 5 Fluence Custom Series Matt Heafy – Connection Points & Functions 1. Voice-2 Select - To select Voice-2, connect this pin either to ground through a switch contact, or permanently by soldering it to any ground or by using one of the included jumpers across the pins.
- Page 6 4. Single Coil Mode Select - A row of three solder pads is used to select the active coil in Single Coil / Voice-3 mode. The active coil is selected by a solder bridge connecting the corresponding outer pad to the center one.
- Page 7 Custom Series Matt Heafy Set Wiring Custom Series Matt Heafy Set and Standard wiring with dual voice switching. Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Pot Controls: 1. Neck Volume 2.
- Page 8 Custom Series Matt Heafy Set Wiring Custom Series Matt Heafy Set and Custom Series Matt Heafy Set and Standard wiring with dual voice switching. Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) 9V Battery Bridge Volume Pot Controls:...
- Page 9 Custom Series Matt Heafy Set Wiring Custom Series Matt Heafy Set and Standard wiring with dual voice switching. Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Pot Controls: 1. Neck Volume 2.
- Page 10 Custom Series Matt Heafy Set Wiring Custom Series Matt Heafy Set and Standard wiring with dual voice switching. Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Pot Controls: 1. Neck Volume 2.
- Page 11 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 514-300-251_r1 08/21...
