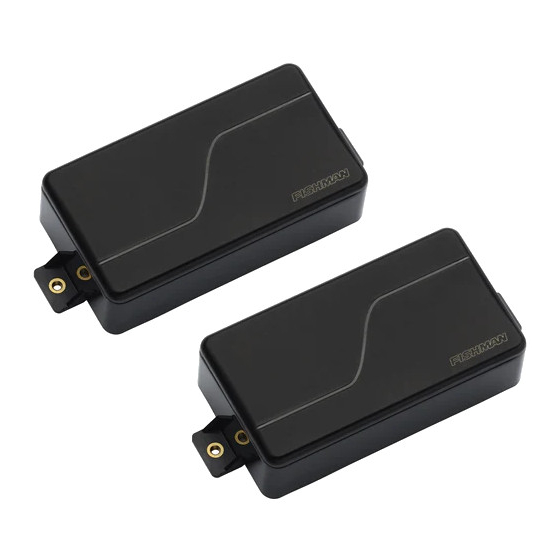

- Page 1 FLUENCE SIGNATURE SERIES MICK THOMSON INSTALLATION GUIDE ELLIE MITCHELL PHOTOGRAPHY...
-
Page 2: System Requirements
TARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE OR ANY OTHER FAULT of Fishman, including but not limited to equipment malfunction from whatever cause, or any other fault of Fishman. Additionally, you agree to indemnify, defend... -
Page 3: Getting Started
Fishman Fluence Pickups are low impedance and perform ideally with 25K audio taper potentiometers. - Page 4 The preamps on Fishman Fluence pickups are not suitable for use with other brands of guitar pickups. 4. All Pickup Voicing, High Frequency Tilt (HF Tilt) and Gain reduction features are selected by connecting their leads to Ground.
- Page 5 Fluence Mick Thomson - Connection Points & Functions 1. Voice-2 Select Wire - Voice-1 is the default voice with no voice pins grounded/selected. To select Voice-2, connect this pin to ground through a switch contact or permanently by soldering it to any ground or by using one of the included jumpers across the pins. This pin is an electronically controlled switch and has no signal on it.
- Page 6 4. Voice-1 Bass Boost (Bridge Pickup Only) - Voice-1 is fine tuned for tight chugging tone. This option provides a subtle bass boost for extra punch and fullness. It can be useful to optimize and fine tune the response of various guitar/amp combinations.
- Page 7 9V Battery Mick Thomson Humbucker Set Volume - Pull for Bridge Pickup Voice-1 Bass Boost Tone - Pull for Voice-2 (1,3,& 5 positions) Oak Grigsby 5-way Superswitch Ring Sleeve Output Jack Mick Thomson Neck Mick Thomson Bridge Bridge Ground Rev 2.0 0.22uF “224”...
- Page 8 Mick Thomson Humbucker Set 9V Battery Volume - Pull for Bridge Pickup Voice-1 Bass Boost Tone - Pull for Voice-3 Outer Coils (Inner Coils Default) Mini Toggle for Voice Select Output Ring Jack Sleeve Mick Thomson Neck Mick Thomson Bridge Bridge Ground 0.22uF...
- Page 9 Mick Thomson Humbucker Set 9V Battery Volume - Pull for Bridge Pickup Voice-1 Bass Boost Mini Toggle for Voice Select Output Ring Jack Sleeve Mick Thomson Neck Mick Thomson Bridge Bridge Ground Voice Voice-1 Lo-Gain Voice-3 Outer Coil mode suggested Select Wires (Not Used) when using in...
- Page 10 Mick Thomson Humbucker Set 9V Battery Volume - Pull for Voice-3 Outer Coils (Inner Coils Default) Mini Toggle for Voice Select Voice-1 Bass Boost Connect to Ground to activate or apply Output jumper across the Ring Jack two pins. Sleeve Mick Thomson Neck Mick Thomson Bridge Bridge...
- Page 11 Mick Thomson Humbucker Set 9V Battery Bridge Volume - Pull for Bridge Voice-1 Bass Boost Neck Volume - Pull for Voice-3 Inner Coils Tone - Pull for Voice-2 Output Ring Jack Sleeve Mick Thomson Neck Mick Thomson Bridge Bridge Ground Pickup Selector 0.22uF “Import”...
- Page 12 Mick Thomson Humbucker Set 9V Battery Bridge Volume - Pull for Bridge Voice-1 Bass Boost Neck Volume - Pull for Voice-3 Inner Coils Tone - Pull for Voice-2 Output Ring Jack Sleeve Mick Thomson Neck Mick Thomson Bridge Bridge Ground Pickup Selector 0.22uF 3-Way Blade...
- Page 13 PRODUCT PAGE & INSTALL GUIDE Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 514-300-257_r0 10/23...
