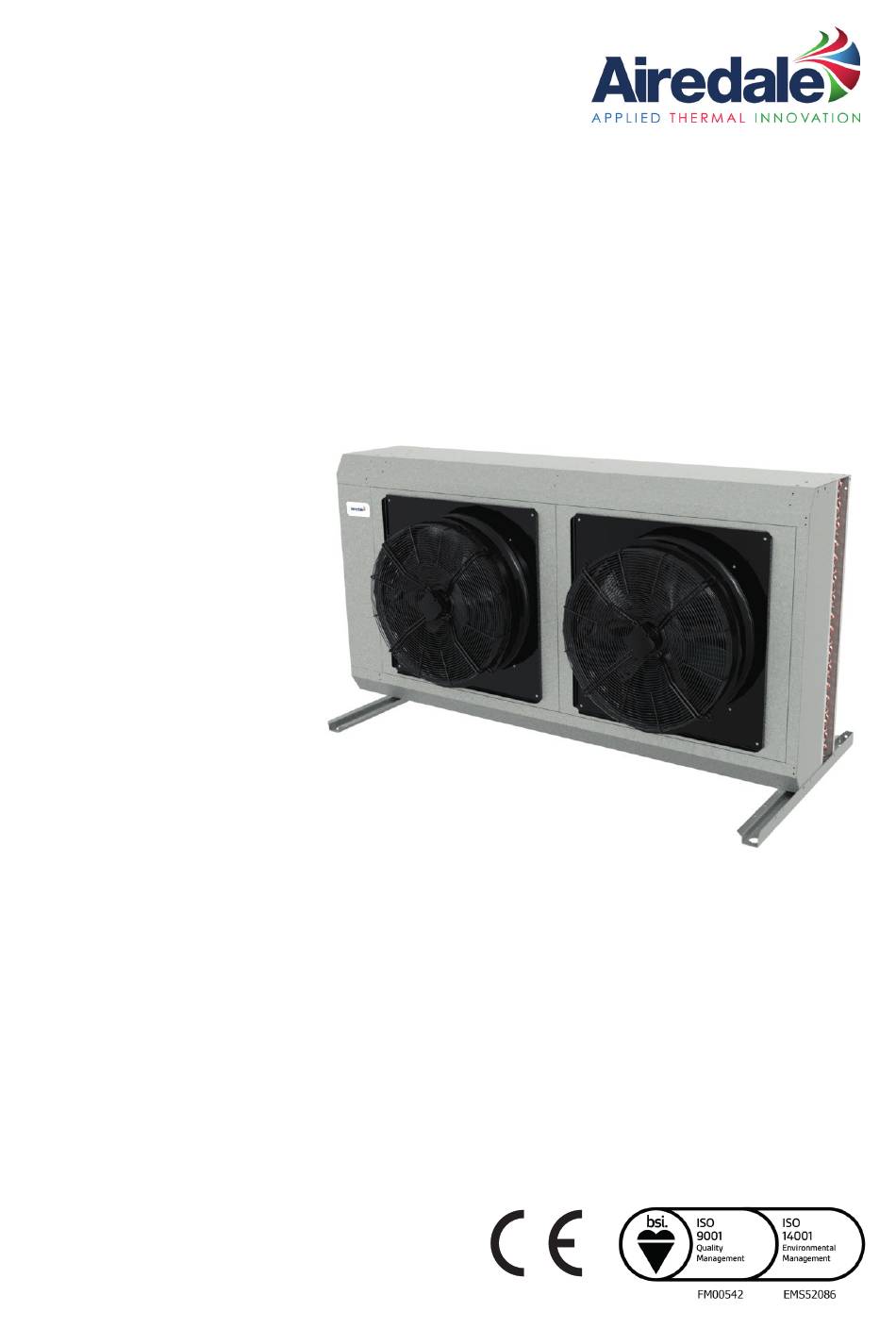

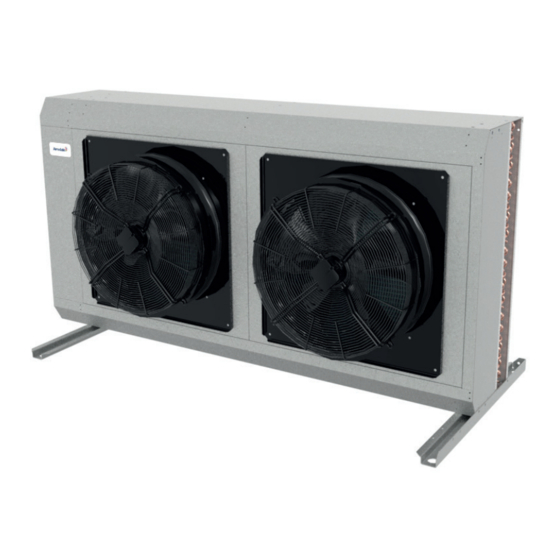

- Page 1 CONDENSERS 50Hz - 60Hz R410A 12kW - 165kW TECHNICAL MANUAL...
- Page 2 Airedale Ltd endeavours to ensure that the information in this document is correct and fairly stated, but none of the statements are to be relied upon as a statement or representation of fact. Airedale Ltd does not accept liability for any error or omission, or for any reliance placed on the information contained in this document.
- Page 3 Airedale recommends that personal protective equipment is used whilst installing, maintaining and commissioning Freeze Protection equipment. Airedale recommends the following actions to help protect the unit during low temperature operation. This also includes the units subject to low ambient temperatures. Manual Handling Units with supply water temperatures below +5°C...
-
Page 4: Table Of Contents
CR12 - CR165 50/60Hz CONDENSERS Contents General Description Nomenclature Introduction Fan & Motor Assembly Refrigeration Electrical Head Pressure Control (Variable) Electronically Commutated (EC) Fan Motor Installation Data Dimensions Unit Lifting - Condenser Re-Orientation To Vertical Discharge Positioning Mounting Siting Recommendations... -
Page 5: General Description
The range has been designed and optimised for operation with ozone benign refrigerant R410A. 50Hz This range covers condensers from CR12 - CR165 60Hz This range covers condensers from CR12 - CR105... -
Page 6: Refrigeration
Each fan incorporates electronically commutated DC motor control using semi-conductor modules responding to a signal from the Airedale indoor unit. EC motors are DC motors with integrated AC to DC conversion; this gives the flexibility of connecting to AC mains with the efficiency and simple speed control of a DC motor. The EC fan offers significant power reduction in comparison with equivalent AC fan at both full and modulated fan speeds. -
Page 7: Installation Data
CONDENSERS CR12 - CR165 50/60Hz Installation Data Dimensions Unit diagrams can be supplied on request. IMPORTANT The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed and stored safely if not required. Only 2 units may be stacked together. - Page 8 CR12 - CR165 50/60Hz CONDENSERS Installation Data Dimensions Unit diagrams can be supplied on request. IMPORTANT The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed and stored safely if not required. Only 2 units may be stacked together.
- Page 9 CONDENSERS CR12 - CR165 50/60Hz Installation Data Dimensions Unit diagrams can be supplied on request. IMPORTANT The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed and stored safely if not required. Only 2 units may be stacked together.
- Page 10 CR12 - CR165 50/60Hz CONDENSERS Installation Data Dimensions Unit diagrams can be supplied on request. IMPORTANT The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed and stored safely if not required. Only 2 units may be stacked together.
- Page 11 CONDENSERS CR12 - CR165 50/60Hz Installation Data Minimum Clearances 3000mm 500mm 500mm 500mm 500mm 500mm 500mm 500mm A vertical air discharge unit is recommended for installation in windy locations or wherever a CAUTION horizontal airflow would be obstructed. Condenser Technical Manual 6666879 V2_02_2020...
-
Page 12: Unit Lifting - Condenser
Ensure that chains/slings DO NOT crush the casework, coil or fan assemblies. • If the unit is dropped it should immediately be checked for damage and reported to Airedale. • Airedale will accept no responsibility for mishandling during the positioning of the equipment. -
Page 13: Re-Orientation To Vertical Discharge
CONDENSERS CR12 - CR165 50/60Hz Installation Data Vertical Air Discharge LIFT Use lifting eyes attached to individual slings/chains (supplied by others) and attach 1 to the top of every leg using the holes provided as illustrated. Maximum of 8 slings/chains. -
Page 14: Positioning
CR12 - CR165 50/60Hz CONDENSERS Installation Data Positioning • Unit must be positioned on an even base to ensure correct operation • Observe airflow and maintenance clearances • Where multiple units are installed, due care should be taken to avoid the discharge air from each unit adversely affecting other units in the vicinity •... -
Page 15: Pipework Installation - Good Practices
Pipework Installation - Good Practices CAUTION The following information is based on a complete matched Airedale system using R410A. • Remove burrs to the ends of the copper tube, holding the tube downward to avoid allowing dirt to contaminate the tube •... - Page 16 CR12 - CR165 50/60Hz CONDENSERS Installation Data Pressure Testing In accordance with PED 97/23/EC, a strength test should be carried out in order to ensure that all interconnecting joints, pipework and components are sufficiently strong to cater for maximum permissible operating pressures. Once installation is completed, the high pressure side of the system should be strength tested with dry nitrogen.
-
Page 17: Electrical Data
CONDENSERS CR12 - CR165 50/60Hz Installation Data Electrical Data IMPORTANT The following information is for general guidance; refer to the certified drawings provided for installation. ALL work MUST be carried out by technically trained competent personnel. CAUTION The equipment contains live electrical and moving parts, ISOLATE prior to maintenance or repair work. -
Page 18: Technical Data
Optional On/Off Head Pressure Control -0°C Minimum Ambient Air DB °C Maximum Ambient Air DB °C For conditions outside those quoted, please contact Airedale. Low ambient kits are available for applications with temperatures below those quoted, please contact Airedale. Condenser Technical Manual 6666879 V2_02_2020... - Page 19 Optional On/Off Head Pressure Control -0°C Minimum Ambient Air DB °C Maximum Ambient Air DB °C For conditions outside those quoted, please contact Airedale. Low ambient kits are available for applications with temperatures below those quoted, please contact Airedale. Condenser Technical Manual 6666879 V2_02_2020...
-
Page 20: Mechanical Data
CR12 - CR165 50/60Hz CONDENSERS Technical Data Mechanical Data CR12 CR16 CR22 CR26 CR30 CR35 Total Heat of Rejection (1) kW 14.1 18.6 24.6 29.9 31.3 39.7 Dimensions - Horizontal (2) 972 x 1000 x 972 x 1000 x 1167 x 1000 x... - Page 21 CONDENSERS CR12 - CR165 50/60Hz Technical Data Mechanical Data CR50 CR60 CR65 CR75 CR80 Total Heat of Rejection (1) kW 53.8 67.2 70.6 89.0 87.8 Dimensions - Horizontal (2) 1167 x 1000 x 1167 x 1000 x 1167 x 1000 x...
- Page 22 CR12 - CR165 50/60Hz CONDENSERS Technical Data Mechanical Data CR95 CR105 CR130 CR140 CR165 Total Heat of Rejection CR (1) kW 109.9 113.2 149.7 150.1 195.7 Dimensions - Horizontal 1167 x 1000 x 1167 x 1000 x 1167 x 1000 x...
-
Page 23: Electrical Data
CONDENSERS CR12 - CR165 50/60Hz Technical Data Electrical Data CR12 CR16 CR22 CR30 Mains Supply 230V / 1Ph + N / 50Hz Unit Data Nominal Run Amps Maximum Start Amps Recommended Mains Fuse mm² Max Mains Cable Incoming Fan - Per Fan Quantity 0.22... - Page 24 CR12 - CR165 50/60Hz CONDENSERS Technical Data Electrical Data CR50 CR65 CR80 CR105 Mains Supply 230V / 1Ph + N / 50Hz Unit Data Nominal Run Amps Maximum Start Amps 11.2 11.2 16.8 16.8 Recommended Mains Fuse mm² Max Mains Cable Incoming...
- Page 25 CONDENSERS CR12 - CR165 50/60Hz Technical Data Electrical Data CR130 CR140 CR165 Mains Supply 400V / 3Ph / 50Hz 230V / 1Ph + N / 50Hz 400V / 3Ph / 50Hz Unit Data 4.94 10.48 Nominal Run Amps Maximum Start Amps 18.3...
- Page 26 IMPORTANT The sound data quoted is based on the unit having the STANDARD FAN running at FULL SPEED under normal operating conditions. For sound data of optional fan selections, please contact Airedale. Measurement of Sound Data All sound data quoted has been measured in the third-octave band limited values, using a Real Time Analyser calibrated sound intensity meter in accordance with BS EN ISO9614 Part 1 : 1995.
-
Page 27: Noise Data - Horizontal
CONDENSERS CR12 - CR165 50/60Hz Sound Data Noise Data - Horizontal Sound Overall Frequency (Hz) dB Measurement dB(A) 1000 2000 4000 8000 Power CR12 Pressure @10m Power CR16 Pressure @10m Power CR22 Pressure @10m Power CR26 Pressure @10m Power CR30... -
Page 28: Noise Data - Vertical
CR12 - CR165 50/60Hz CONDENSERS Sound Data Noise Data - Vertical Sound Overall Frequency (Hz) dB Measurement dB(A) 1000 2000 4000 8000 Power CR12 Pressure @ 10m Power CR16 Pressure @ 10m Power CR22 Pressure @ 10m Power CR26 Pressure... -
Page 29: Commissioning Procedure
The equipment contains live electrical and moving parts, ISOLATE prior to maintenance or repair work. The following commissioning information is based on a complete matched Airedale system using R410A. Start-Up Switch on the power supply to the condenser and switch the isolator to the on position. -
Page 30: Operating Limits
Control Device Adjustment Standard AC Type Fans When the condenser is matched to an Airedale indoor unit, head pressure control is provided by the indoor unit. Unmatched condensers are supplied with a head pressure control device which can be either:... - Page 31 Optional EC Fans When the condenser is matched to an Airedale indoor unit, head pressure control is provided by the indoor unit. The fan speed of unmatched condensers is controlled by the onboard EC fan electronics connected to a pressure transducer on the outlet manifold.
-
Page 32: Commissioning Data
CR12 - CR165 50/60Hz CONDENSERS Commissioning Data Refrigerant Charging It is important that the system is charged with the correct amount of refrigerant. Remember, a seriously over or undercharged system may lead to major component failure. The final refrigerant charge level should be set by the design evaporating and condensing pressures, together with a full or nearly full sight glass. - Page 33 CONDENSERS CR12 - CR165 50/60Hz Troubleshooting FAULT POSSIBLE CAUSE REMEDY / ACTION No power Check power supply to the controller Check wire connections in accordance Wired incorrectly Unit will not start with wiring diagram on control box lid Check all wires, connections,...
-
Page 34: Maintenance
CR12 - CR165 50/60Hz CONDENSERS Maintenance CAUTION ALL work MUST be carried out by technically trained competent personnel. The equipment contains live electrical and moving parts, ISOLATE prior to maintenance or repair work. IMPORTANT Ensure relevant F-Gas Regulation checks are carried out at the appropriate period. - Page 35 All Airedale products or parts (non consumable) supplied for installation within the UK mainland and commissioned by an Airedale engineer, carry a full Parts & Labour warranty for a period of 12 months from the date of commissioning or 18 months from the date of despatch, whichever is the sooner.
- Page 36 Head Office Airedale International Air Conditioning Ltd Leeds Road Rawdon Leeds LS19 6JY Tel: +44 (0) 113 2391000 Fax:+44 (0) 113 2507219 E-mail connect@airedale.com Web: www.airedale.com...
