AIREDALE Artus Installation And Commissioning Manual



Unpacking and Parts



    
(BLUE) (RED) (GREY)


Mounting and Levelling

A


Water Pipework







Condensate Drain

Artus Installation and Commissioning Guide
No Qty Description

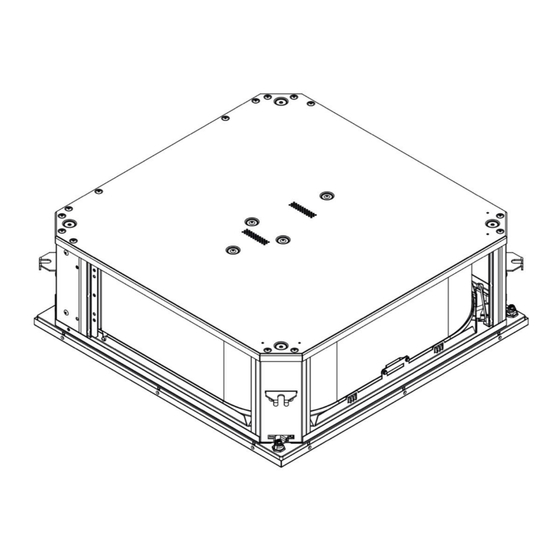

 1 Artus Chassis and Fascia fitted
 3 Filters (2 short, 1 long)

 1 Return Air Sensor
 1 Return Air Sensor Bracket
6 Return Air Sensor Clips


1 Electrical Connection Tool

1 Cooling Commisioning Plug (Blue)

1 Heating Commissioning Plug (Red)
 
1 Mains Cable Plug

1 Return Air Sensor Plug (Grey)

1 KNX Cable Plug (Pink)
(PINK)
No Unit Connection Adapter Customer Termination
15mm Compression 15mm to 1/2" 1/2" Hose Connection

15mm Compression N/A 15mm PEX Tube Connection

15mm Compression N/A 15mm Copper Pipe Connection

Bypass Leg Option N/A N/A

HW INLET
CW INLET
CW OUTLET
HW OUTLET
CONDENSATE DRAIN
15mm COMPRESSION (X4)
(6mm ID HOSE)
1/50 - 1/100


Wiring

 
X2 X6
1-2-3 1-2
BACNET MSTP KNX
1 X2.1 & X2.2
X3

SENSOR-B2
BACnet / IP
2
X1

230V 50Hz
N PEL
Note: Shielded Cat 5e cable is recommended for Ethernet connections.
±2mm
NTC
Room Sensor

Temperature Sensor
(fitted by others)


Opening the Unit

4mm
Item
230V/1PH/50Hz Mains Incoming Connector




KNX Display Connection to Room Operator Unit






L 
X1 PE Mains Incoming 230V / 1Ph + N / 50Hz/60Hz

N 
1 Return Air Temperature Sensor

X3
2  To Unit (Supplied Loose)
AR - E
1 + KNX / PL -Link Bus Communication Connection

X6
2  - Room Operator Unit (Optional, Supplied Loose)
1  
X2 Ethernet RJ45 BACnet/IP 2 Port Ethernet Switch
2
 
RJ45 BMS / Scheduler / Third Party
KNX NTC NTC NTC
Wall Mounted Display
Sensor Mounting
Bracket
ARTUS_ 9456351_A3 Guide_V1.0.0_08_2018
Description
Return Air Temperature Sensor
BACnet MSTP Connection (optional)
BACnet IP 2 Port RJ45 (optional)
On/Off switch (green illuminated switch)
6A Unit Mains Fuse
Return Air Sensor
