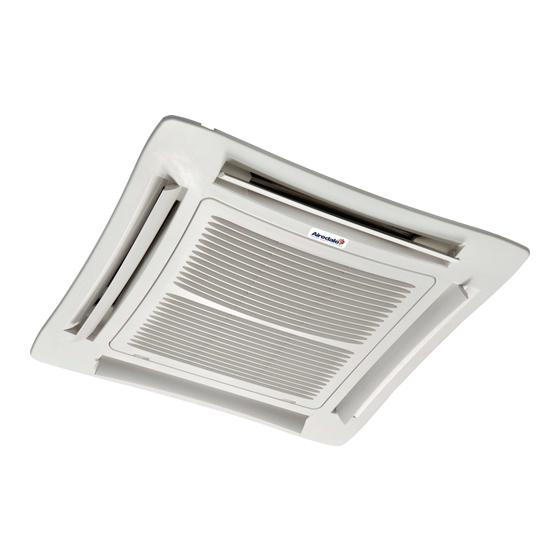

- Page 1 AIR 8-105.5 September, 2012 The SLIMLINE PERFORMER Ceiling Cassette Ductless Mini-Split Models CSD, CSH and CCW T E C H N I C A L M A N U A L 3087217...
-
Page 2: Table Of Contents
Airedale Cassettes are available in a choice of three models – DX cooling and heat pumps in five model sizes and chilled water cooling in six model sizes – to properly match units to job requirements. -
Page 3: Model Identification
Ceiling Cassette General Description MODEL CEILING CASSETTE UNITS IDENTIFICATION Base Model: CSD, CSH CSD = Ceiling Cassette Unit – DX Cooling or CCW CSH = Ceiling Cassette Unit – Heat Pump CCW = Ceiling Cassette Unit – Chilled Water Cabinet Size: 2/ or _ (blank) 2/ = Small Body (2 X 2 Series) _ = Medium Body (3 X 3 Series) or Large Body (3 X 4 Series) -
Page 4: Options
24V wall mounted thermostat required for unit operation. Controls Option 2: A custom designed microprocessor is fitted to the Airedale Cassette to enable room conditions to be maintained at a user defined set point. Communication to the controller is by a hand held infrared Microprocessor transmitter or a wall mounted ‘pendant’... -
Page 5: Accessories
Ceiling Cassette FIELD INSTALLED ACCESSORIES Thermostats Aquastat Mechanical thermostat: cooling only Mechanical thermostat with manual changeover: cooling + 1 stage of heat Digital thermostat with auto changeover: up to 2 stages of cooling and heating Digital programmable thermostat with auto changeover: up to 2 stages of cooling and heating Carel Wall Sensor For units fitted with the Carel microprocessor controller, a temperature sensor and set point adjustment module with overrride button shall be mounted on the wall. - Page 6 Ceiling Cassette Table 6.1 – Cooling Performance – DX Cooling Only and Heat Pump Units Fan Speed High Medium Entering Air DB ºF @ Model BTU/h BTU/h BTU/h BTU/h BTU/h BTU/h 50% RH 16500 14400 16300 13900 15800 13100 CSD/CSH 18 17500 14900 17200...
-
Page 7: Chilled Water Units
Ceiling Cassette Table 7.1 – Performance – DX Cooling Only Units Cooling Model BTU/h SEER 21500 CSD 18 25400 CSD 24 34800 CSD 30 41800 CSD 36 45500 CSD 42 Table 7.2 – Performance – Heat Pump Units Cooling Heating... - Page 8 Ceiling Cassette Table 8.1 – Heating Performance – Chilled Water Units with Optional Hot Water Coil Hot Water 180ºF Inlet / 160ºF Outlet Entering Air Heating Capacity Flowrate Pressure Drop Model DB ºF @ 50% RH BTU/h 16,819 CCW2/8 15,292 13,799 CCW2/12 35,763...
- Page 9 Ceiling Cassette Table 9.1 – Heating Performance – Chilled Water Units – Two Pipe Changeover Hot Water 180ºF Inlet / 160ºF Outlet Entering Air Heating Capacity Flowrate Pressure Drop Model DB ºF @ 50% RH BTU/h 28,389 11.0 CCW2/8 25,903 23,605 33,471 CCW2/12...
- Page 10 Ceiling Cassette Figure 10.1 – Dimensions – Small Chassis Model CCW2/8 and CCW2/12 25 3/16 CW Inlet CW Outlet HW Coil Inlet (Optional) HW Coil Outlet (Optional) Branch Duct Opening (x3) Fresh Air Intake (x2) Pump Inspection Port 25 3/16 Condensate Drain Control Panel 10.
- Page 11 Ceiling Cassette Figure 11.1 – Dimensions – Medium Chassis Model CCW 18 and CCW 20 CW Coil Inlet CW Coil Outlet HW Coil Inlet (Optional) HW Coil Outlet (Optional) Fresh Air Intake (x3) Branch Duct Opening (x4) Pump Inspection Port Condensate Drain Control Panel 10.
- Page 12 Ceiling Cassette Figure 12.1 – Dimensions – Large Chassis Model CCW 33 and CCW 36 CW Coil Inlet CW Coil Outlet HW Coil Inlet (Optional) HW Coil Outlet (Optional) Fresh Air Intake (x3) Branch Duct Opening (x4) Pump Inspection Port Condensate Drain Control Panel 10.
- Page 13 Ceiling Cassette Figure 13.1 – Dimensions – Medium Chassis Model CSD/CSH 18 and CSD/CSH 24 DX Suction Line 11/16 DX Liquid Line HW Coil Inlet (Optional) HW Coil Outlet (Optional) Fresh AIr Intake (x3) Branch Duct Opening (x4) Pump Inspection Port Condensate Drain Control Panel 10.
- Page 14 Ceiling Cassette Figure 14.1 – Dimensions – Large Chassis Model CSD/CSH 30, CSD/CSH 36 and CSD/CSH 42 1 1/8 DX Suction Line DX Liquid Line HW Coil Inlet (Optional) HW Coil Outlet (Optional) Fresh AIr Intake (x3) Branch Duct Opening (x4) Pump Inspection Port Condensate Drain Control Panel...
-
Page 15: Condensate Pump
Ceiling Cassette Table 15.1 – Technical Data – DX Cooling Only and Heat Pump Units Units CSD/CSH 18 CSD/CSH 24 CSD/CSH 30 CSD/CSH 36 CSD/CSH 42 Nominal Cooling Capacity (1) BTU/h 19200 23000 31400 38200 42500 Nominal Heating Capacity (2) BTU/h 16400 21400... -
Page 16: Technical Data – Chilled Water Units
Ceiling Cassette Table 16.1 – Technical Data – Chilled Water Units CCW2/8 CCW2/12 CCW 18 CCW 20 CCW 33 CCW 36 Units Nominal Cooling Capacity (1) BTU/h 6,601 11,091 17,592 19,087 29,722 35,258 Construction Material: Fascia High Impact Polystyrene Material: Chassis Galvanized Steel Color: Fascia Pearl Grey... - Page 17 Ceiling Cassette Table 17.1 – Technical Data – Condensers for DX Cooling Only Units Cassette Unit CSD 18 CSD 24 CSD 30 CSD 36 CSD 42 Condenser Model YCJD18 YCJD24 YCJD30 YCJD36 YCJD42 Units Performance Nominal System Cooling Capacity BTU/h...
- Page 18 Ceiling Cassette Table 18.1 – Technical Data – Condensers for Heat Pump Units Cassette Unit CSH 18 CSH 24 CSH 30 CSH 36 CSH 42 Condenser Model YHJD18 YHJD24 YHJD30 YHJD36 YHJD42 Units Performance Nominal System Cooling Capacity BTU/h 18,000 24,000 30,000 36,000...
-
Page 19: Electrical Data
(2) Standard unit fitted with optional booster transformer for connection to a 115V electrical supply. Electric heat not available in conjunction with this option. Table 19.2 – Electrical Data – Condensers for DX Cooling Only Units Cassette Unit CSD 18 CSD 24 CSD 30 CSD 36... -
Page 20: Sound Data
Ceiling Cassette Table 20.1 – Electrical Data – Condensers for Heat Pump Units Cassette Unit CSH 18 CSH 24 CSH 30 CSH 36 CSH 42 Condenser Model YHJD18 YHJD24 YHJD30 YHJD36 YHJD42 Units Standard Data Power Supply 208-230V/1Ph/60Hz 11.9 11.2 14.1 19.7 28.6... - Page 21 Ceiling Cassette Table 21.1 – Sound Data – Condensers for DX Cooling Only and Heat Pump Units Model Units Cooling Heating YCJD18 YCJD24 YCJD30 YCJD36 YCJD42 YHJD18 70.1 70.9 YHJD24 75.8 75.0 YHJD30 74.7 74.8 YHJD36 76.5 76.5 YHJD42 72.0 76.0 Rated in accordance with ARI 270-95 standards The SLIMLINE PERFORMER Ceiling Cassette –...
-
Page 22: Standard Features
Ceiling Cassette Features Air Conditioning System Condensing Units Up Flow Condenser, Model: YCJD18S41S1H through YCJD42S41S1H Standard Features •Quality Condenser Coils – The coil is constructed of aluminum microchannel tubing and enhanced aluminum fins for increased efficiency and corrosion protection. •Protected Compressor – The compressor is internally protected against high pressure, temperature, and externally by a factory installed high pressure switch. - Page 23 Ceiling Cassette Features Heat Pump System Condenser Units Up Flow Condenser, Model: YHJD18S41S1 through YHJD42S41S1 Standard Features •Quality Condenser Coils – The coil is constructed of copper tubing and enhanced aluminum fins for increased efficiency and corrosion protection. •Protected Compressor – The compressor is internally protected against high pressure, temperature, and externally by a factory installed high pressure switch.
- Page 24 Ceiling Cassette Commercial Products Group Modine Manufacturing Company 1500 DeKoven Avenue Racine, WI 53403-2552 Phone: 1.866.823.1631 (toll free) Fax: 1.800.204.6011 www.airedaleusa.com © Modine Manufacturing Company 2012 Litho in USA The SLIMLINE PERFORMER Ceiling Cassette – Ductless Mini-Split Technical Manual : AIR 8-105.5...
