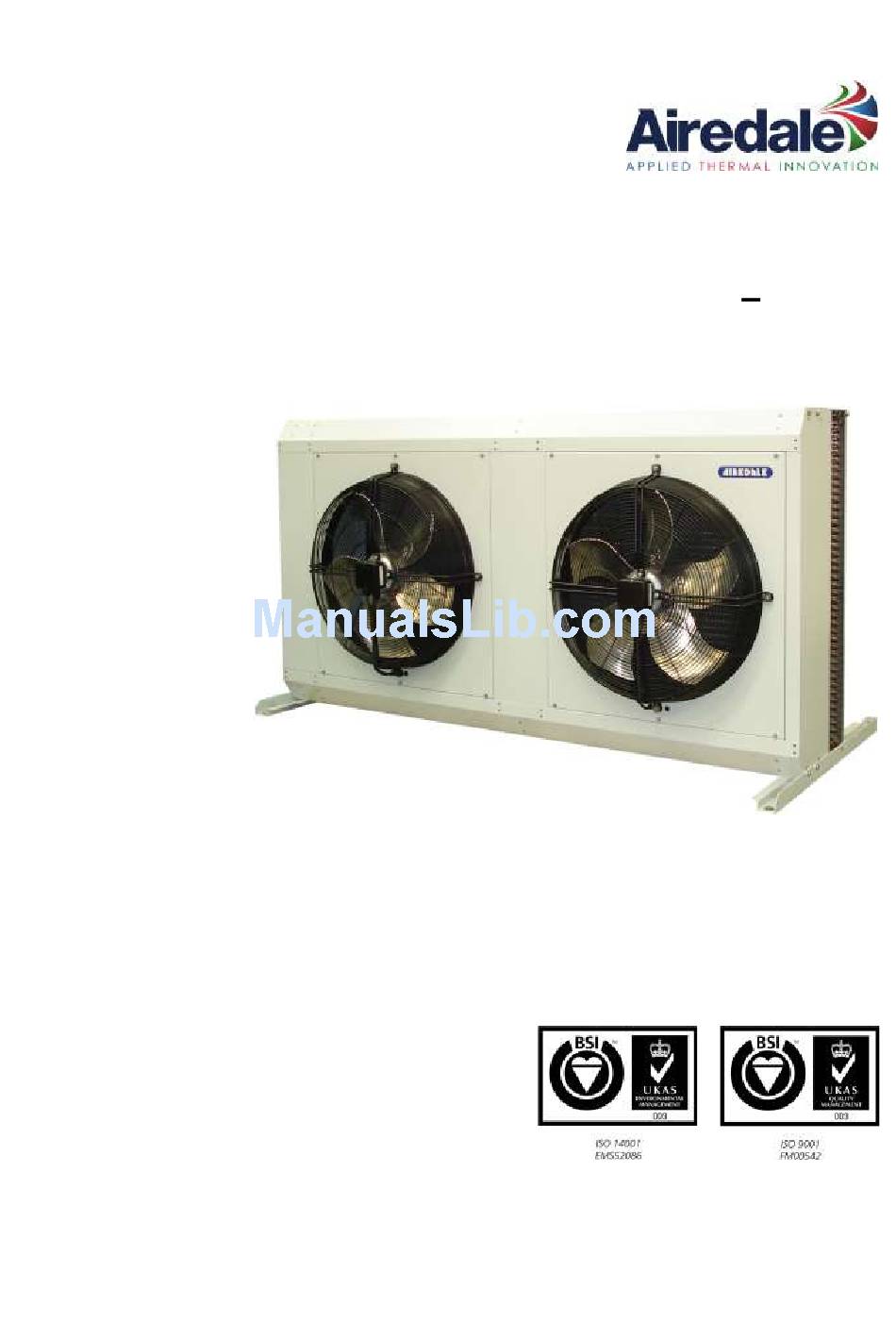

- Page 1 COVER Condenser CR12 CR165 TECHNICAL MANUAL...
- Page 2 To further protect your investment in Airedale products, we have introduced Airedale Service, who can provide full commissioning services, comprehensive maintenance packages and service cover 24 hours a day, 365 days a year (UK mainland). For a free quotation contact our Airedale Service or your local Sales Engineer.
- Page 3 (excluding costs for any specialist access or lifting equipment that must be ordered by the customer). Any spare part supplied by Airedale under warranty shall be warranted for the unexpired period of the warranty or 3 months from delivery, whichever period is the longer.
-
Page 4: Table Of Contents
CONDENSERS CR12-165 \CONTENTS Contents General Specification Unit Identification ........................5 Standard Features ........................6 Fan & Motor Assembly ......................7 Refrigeration ........................... 7 Electrical ..........................7 Head Pressure Control ......................7 (Variable) ..........................7 Main Electric Isolator ......................7 Electronically Commutated (EC) Fan Motor ................8 Optional Extras General Short Case Axial Fans (SCAF) .................... -
Page 5: General Specification
The condenser range has been designed and optimised for operation with ozone benign refrigerant R410A. CE Directive Airedale certify that the equipment detailed in this manual conforms with the following EC Directives: Electromagnetic Compatibility Directive (EMC) 2004/108/EC... -
Page 6: Standard Features
CONDENSERS CR12-165 STANDARD FEATURES Construction Unit cabinets shall be manufactured from galvanised sheet steel coated with epoxy baked powder paint to provide a durable finish. Standard unit colour shall be Light Grey (RAL 7035). Dual position fixing legs shall be supplied attached to the unit via captive bolts and shake proof washers. -
Page 7: Fan & Motor Assembly
CR12-165 CONDENSERS Standard Features FAN & MOTOR ASSEMBLY CR12 - CR16 Axial flow fan assembly with low noise sickle type blades shall be supplied. CR22 - CR165 Axial flow fan assembly with low noise sickle type blades and bellmouth. All Models The external rotor AC motor shall allow the use of a low power output, single phase, and speed controllable motor to power the fan. -
Page 8: Electronically Commutated (Ec) Fan Motor
MOTOR Each fan shall incorporate electronically commutated DC motor control using semi- conductor modules responding to a signal from the Airedale indoor unit. EC motors are DC motors with integrated AC to DC conversion; this gives the flexibility of connecting to AC mains with the efficiency and simple speed control of a DC motor. -
Page 9: Installation Data
CR12-165 CONDENSERS Installation data The range of condensers and dry coolers are grouped together for easier identification. Case sizes 1-5 (16 Condensers, 14 Dry coolers) Case 1 and 2 Case 3 Case 4 Case 5 Dimensions / Weights / Positioning IMPORTANT Unit diagrams can be supplied on request. - Page 10 CONDENSERS CR12-165 Horizontal case size 1 and 2 (1 fan) (5a) Diagram illustrated in mm (5b) Airflow Minimum clearances 12.7mm fixing hole Mains electric isolator Service connections to left hand side of the unit: a = Discharge gas inlet (ALWAYS above (b)) b = Liquid outlet Top brackets may be used to secure unit of similar size on top, using, 2 x 12.7mm fixing holes...
- Page 11 CR12-165 CONDENSERS Horizontal case size 3 (2 Fans) DIMENSIONS (mm) WEIGHTS (kg) Standard Fan Standard AC Fan Optional EC Fan Optional SCAF CR50 2184 1167 1000 2121 CR60 2184 1167 1000 2121 CR65 2184 1167 1000 2121 CR75 2184 1167 1000 2121 Vertical case size 3 (2 Fans)
- Page 12 CONDENSERS CR12-165 Horizontal case size 4 (3 Fans) Optional Short Case Axial Fan (SCAF) (5a) Diagram illustrated in mm (5b) Airflow Minimum clearances 12.7mm fixing hole Mains electric isolator Service connections to left hand side of the unit: a = Discharge gas inlet (ALWAYS above (b)) b = Liquid outlet Top brackets may be used to secure unit of similar size on top, using, 2 x 12.7mm fixing holes...
- Page 13 CR12-165 CONDENSERS Horizontal case size 5 (4 fans) (5a) (5b) D(a) D(c) D(b) For Minimum Clearances (2) see previous outdoor units in horizontal configuration Diagram illustrated in mm Airflow Minimum clearances 12.7mm fixing hole Mains electric isolator Service connections to left hand side of the unit: a = Discharge gas inlet (ALWAYS above (b)) b = Liquid outlet Top brackets may be used to secure unit of similar size on top, using, 2 x 12.7mm fixing holes...
-
Page 14: Unit Lifting
If the unit is dropped it should immediately be checked for damage and reported to Airedale. Airedale will accept no responsibility for mishandling during the positioning of the equipment. Check the unit is as ordered, discrepancies or transit damage should be reported CAUTION to Airedale immediately. -
Page 15: Performance Data Condensers
CR12-165 CONDENSERS Performance Data Condensers STANDARD CONDENSER FAN Ambient Mean Condensing Temperature °C 25°C 30°C 35°C 40°C 45°C 48°C Output Output Output Output Output Output (kW) (kW) (kW) (kW) (kW) (kW) 13.8 CR12 19.0 14.0 24.4 19.2 14.1 29.8 24.7 19.5 14.4 11.9... -
Page 16: Capacity Data
CONDENSERS CR12-165 CAPACITY DATA STANDARD CONDENSER FAN Ambient Mean Condensing Temperature °C 25°C 30°C 35°C 40°C 45°C 48°C Output Output Output Output Output Output (kW) (kW) (kW) (kW) (kW) (kW) 44.9 18.6 69.1 45.2 19.3 CR65 93.8 69.7 45.6 119.2 94.8 70.6 46.4... -
Page 17: Sound Data
SOUND DATA - STANDARD FAN IMPORTANT The sound data quoted is based on the unit having the STANDARD FAN running at FULL SPEED under normal operating conditions. For sound data of optional fan selections, please contact Airedale. Horizontal Sound Frequency (Hz) dB... - Page 18 CONDENSERS CR12-165 Vertical Sound Frequency (Hz) dB Overall Measurement dB(A) 1000 2000 4000 8000 Power CR12 Pressure @ 10m Power CR16 Pressure @ 10m Power CR22 Pressure @ 10m Power CR26 Pressure @ 10m Power CR30 Pressure @ 10m Power CR35 Pressure @ 10m...
-
Page 19: Mechanical Data Condensers
CR12-165 CONDENSERS Mechanical Data Condensers CR12 CR16 CR22 CR26 CR30 Total Heat of Rejection CR 14.1 18.6 24.6 30.7 31.3 Dimensions - Horizontal H x W x L 972 x 1000 x 907 972 x 1000 x 907 1167 x 1000 x 1102 1167 x 1000 x 1102 1167 x 1000 x 1102 Dimensions... - Page 20 CONDENSERS CR12-165 Mechanical Data- Condensers CR35 CR50 CR60 CR65 CR75 Total Heat of Rejection CR 40.3 53.8 67.6 70.6 91.6 Dimensions - Horizontal H x W x L 1167 x 1000 x 1102 1167 x 1000 x 2184 1167 x 1000 x2184 1167 x 1000 x 2184 1167 x 1000 x 2184 Dimensions - Vertical...
- Page 21 CR12-165 CONDENSERS Mechanical Data- Condensers CR80 CR95 CR105 Total Heat of Rejection CR 87.8 110.9 113.2 Dimensions - Horizontal H x W x L 1167 x 1000 x 3565 1167 x 1000 x 3565 1167 x 1000 x 3565 Dimensions - Vertical H x W x L 1090 x 1167 x 3565 1155 x 1167 x 3565...
- Page 22 CONDENSERS CR12-165 Mechanical Data- Condensers CR130 CR140 CR165 Total Heat of Rejection CR 149.7 150.1 195.7 Dimensions - Horizontal H x W x L 1167 x 1000 x 3565 1167 x 1000 x 4641 1167 x 1000 x 4641 Dimensions - Vertical H x W x L 1155 x 1167 x 3565 1090 x 1167 x 4641...
-
Page 23: Electrical Data
CR12-165 CONDENSERS Electrical Data Condenser CR12 CR16 CR22 CR26 CR30 CR35 CR50 CR60 CR65 Unit Data Nominal Run Amps Maximum Start Amps 18.3 12.2 18.3 Recommended Mains Fuse Max Mains Cable Incoming mm² Mains Supply 50Hz 230V/1Ph 400V/3Ph 230V/1Ph 400V/3Ph 230V/1Ph 400V/3Ph 230V/1Ph... - Page 24 CONDENSERS CR12-165 NOTES NOTES Condensers Technical Manual :6666879 1.2.0 08_ 2014...
- Page 25 CR12-165 CONDENSERS Condenser Technical Manual :6666879 1.2.0 08_2014 /2012...
- Page 26 Head Office: Airedale International Air Conditioning Ltd Leeds Road Rawdon Leeds LS19 6JY United Kingdom Tel: +44 (0) 113 239 1000 Fax: +44 (0) 113 250 7219 e-mail: enquiries@airedale.com website: www.airedale.com PART NO: ISSUE (TM E) 10/2012 1.1.0 02_2013...
