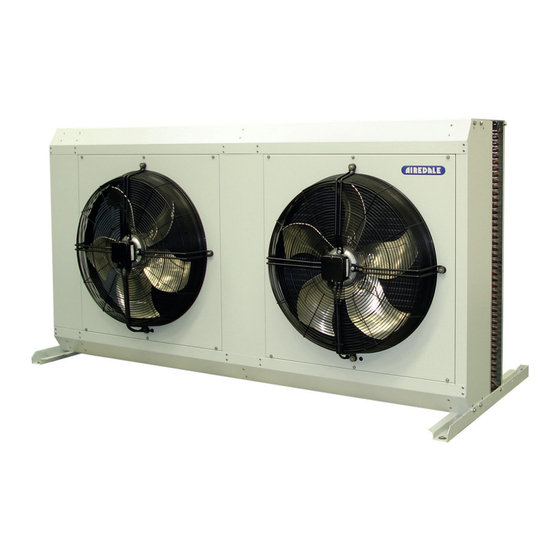

- Page 1 CONDENSERS CR12 - CR165 (50Hz) 12 kW - 165 kW CR12 - CR105 (60Hz) 12 kW - 105 kW R410A CR50H (shown with top legs removed) TECHNICAL MANUAL...
-
Page 2: Warranty, Commissioning & Maintenance
Airedale Ltd endeavours to ensure that the information in this document is correct and fairly stated, but none of the statements are to be relied upon as a statement or representation of fact. Airedale Ltd does not accept liability for any error or omission, or for any reliance placed on the information contained in this document. -
Page 3: Health And Safety
Airedale recommends that personal protective equipment is used whilst installing, maintaining and commissioning equipment. Refrigerant Warning The Airedale Easicool unit uses R410A refrigerant which requires careful attention to proper storage and handling procedures. Use only manifold gauge sets designed for use with R410A refrigerant. Use only refrigerant recovery units and cylinders designed for high pressure refrigerants. -
Page 4: Environmental Considerations
Measure, control and verify environmental performance through internal and external audits • Continually improve our environmental performance CE Directive Airedale certify that the equipment detailed in this manual conforms with the following EC Directives: Electromagnetic Compatibility Directive (EMC) 2004/108/EC Low Voltage Directive (LVD) -
Page 5: Table Of Contents
CONDENSERS CR12 - CR165 50/60Hz Contents Warranty, Commissioning & Maintenance Customer Services Health and Safety Manual Handling Environmental Considerations Environmental Policy General Description Nomenclature Introduction Fan & Motor Assembly Refrigeration Electrical Head Pressure Control (Variable) Electronically Commutated (EC) Fan Motor... -
Page 6: General Description
All units are despatched following extensive leak and pressure testing and carry a holding charge of inert gas. The range has been designed and optimised for operation with ozone benign refrigerant R410A. 50Hz The range covers condensers from CR12-CR165 60Hz This range covers condensers from CR12 - CR105 Condenser Technical Manual 6666879 V1.2.0_05_2013... - Page 7 CONDENSERS CR12 - CR165 50/60Hz General Description Construction Unit cabinets are manufactured from galvanised sheet steel coated with epoxy baked powder paint to provide a durable finish. Standard unit colour shall be Light Grey (RAL 7035). Dual position fixing legs are supplied attached to the unit via captive bolts and shake proof washers.
-
Page 8: Fan & Motor Assembly
CR12 - CR165 50/60Hz CONDENSERS General Description Fan & Motor Assembly CR12 - CR16 Axial flow fan assembly with low noise sickle type blades. CR22 – CR165 Axial flow fan assembly with low noise sickle type blades and bellmouth. All Models The external rotor ac motor allows the use of a low power output, single phase and speed controllable motor to power the fan. -
Page 9: Electronically Commutated (Ec) Fan Motor
Each fan incorporates electronically commutated DC motor control using semi-conductor modules responding to a signal from the Airedale indoor unit. EC motors are DC motors with integrated ac to DC conversion; this gives the flexibility of connecting to ac mains with the efficiency and simple speed control of a DC motor. -
Page 10: Installation Data
The legs attached to the top of the unit are for lifting and stacking and may be removed and stored safely if not required. Only 2 units may be stacked together. Standard Condenser Fan (CR12 - CR30 Shown) Diagram illustrated in mm... - Page 11 CONDENSERS CR12 - CR165 50/60Hz Installation Data Dimensions - Horizontal IMPORTANT Unit diagrams can be supplied on request. The legs attached to the top of the unit are for lifting and stacking and may be removed and stored safely if not required.
- Page 12 CR12 - CR165 50/60Hz CONDENSERS Installation Data Dimensions - Horizontal IMPORTANT Unit diagrams can be supplied on request. The legs attached to the top of the unit are for lifting and stacking and may be removed and stored safely if not required.
- Page 13 CONDENSERS CR12 - CR165 50/60Hz Installation Data Dimensions - Horizontal IMPORTANT Unit diagrams can be supplied on request. The legs attached to the top of the unit are for lifting and stacking and may be removed and stored safely if not required.
- Page 14 IMPORTANT Unit diagrams can be supplied on request. The following illustrations show the unit following fixing leg re-orientation, instructions are provided for this at delivery. Standard Condenser Fan (CR12 - CR30 Shown) Diagram illustrated in mm Airflow 40mm Lifting Holes Minimum Clearances 12.7mm fixing hole...
- Page 15 CONDENSERS CR12 - CR165 50/60Hz Installation Data Dimensions - Vertical IMPORTANT Unit diagrams can be supplied on request. The following illustrations show the unit following fixing leg re-orientation, instructions are provided for this at delivery. DIMENSIONS (mm) WEIGHTS (kg) Fan Options...
- Page 16 CR12 - CR165 50/60Hz CONDENSERS Installation Data Dimensions - Vertical IMPORTANT Unit diagrams can be supplied on request. The following illustrations show the unit following fixing leg re-orientation, instructions are provided for this at delivery. Optional Short Case Axial Fan (SCAF) (CR80 - CR105 Shown)
- Page 17 CONDENSERS CR12 - CR165 50/60Hz Installation Data Dimensions - Vertical IMPORTANT Unit diagrams can be supplied on request. The following illustrations show the unit following fixing leg re-orientation, instructions are provided for this at delivery. Vertical case (4 fans) 3000...
-
Page 18: Unit Lifting - Condenser
Ensure that chains/slings DO NOT crush the casework, coil or fan assemblies. • If the unit is dropped it should immediately be checked for damage and reported to Airedale. • Airedale will accept no responsibility for mishandling during the positioning of the equipment. -
Page 19: Re-Orientation To Vertical Discharge
CONDENSERS CR12 - CR165 50/60Hz Dimensional & Installation Data Re-Orientation To Vertical Discharge 1 Remove the fixings securing the unit to the pallet. 2 In line with horizontal discharge lifting instructions, lift the unit sufficiently to gain access to the lower leg fixings. -
Page 20: Positioning
CR12 - CR165 50/60Hz CONDENSERS Installation Data Positioning • Unit must be positioned on an even base to ensure correct operation • Observe airflow and maintenance clearances • Where multiple units are installed, due care should be taken to avoid the discharge air from each unit adversely affecting other units in the vicinity •... -
Page 21: Pipe Lengths
Pipework Installation - Good Practices CAUTION The following information is based on a complete matched Airedale system using R410A. • Remove burrs to the ends of the copper tube, holding the tube downward to avoid allowing dirt to contaminate the tube •... - Page 22 CR12 - CR165 50/60Hz CONDENSERS Installation Data Pressure Testing In accordance with PED 97/23/EC, a strength test should be carried out in order to ensure that all interconnecting joints, pipework and components are sufficiently strong to cater for maximum permissible operating pressures.
-
Page 23: Electrical Data
CONDENSERS CR12 - CR165 50/60Hz Electrical Data IMPORTANT The following information is for general guidance; refer to the certified drawings provided for installation. CAUTION ALL work MUST be carried out by technically trained competent personnel. The equipment contains live electrical and moving parts, ISOLATE prior to maintenance or repair work. -
Page 24: Technical Data
Optional On/Off Head Pressure Control -0°C Minimum Ambient Air DB °C Maximum Ambient Air DB °C For conditions outside those quoted, please contact Airedale. Low ambient kits are available for applications with temperatures below those quoted, please contact Airedale. Condenser Technical Manual 6666879 V1.2.0_05_2013... - Page 25 Optional On/Off Head Pressure Control -0°C Minimum Ambient Air DB °C Maximum Ambient Air DB °C For conditions outside those quoted, please contact Airedale. Low ambient kits are available for applications with temperatures below those quoted, please contact Airedale. Condenser Technical Manual 6666879 V1.2.0_05_2013...
-
Page 26: Mechanical Data
CR12 - CR165 50/60Hz CONDENSERS Technical Data Mechanical Data CR12 CR16 CR22 CR30 14.1 18.6 24.6 31.3 Total Heat of Rejection Dimensions - Horizontal 972 x 1000 x 907 972 x 1000 x 907 1167 x 1000 x 1102 1167 x 1000 x 1102... - Page 27 CONDENSERS CR12 - CR165 50/60Hz Technical Data Mechanical Data CR50 CR65 CR80 CR105 53.8 70.6 87.8 113.2 Total Heat of Rejection Dimensions - Horizontal 1167 x 1000 x 2184 1167 x 1000 x 2184 1167 x 1000 x 3565 1167 x 1000 x 3565...
- Page 28 CR12 - CR165 50/60Hz CONDENSERS Technical Data Mechanical Data CR130 CR140 CR165 149.7 150.1 195.7 Total Heat of Rejection CR Dimensions - Horizontal 1167 x 1000 x 3565 1167 x 1000 x 4641 1167 x 1000 x 4641 H x W x L...
-
Page 29: Electrical Data
CONDENSERS CR12 - CR165 50/60Hz Technical Data Electrical Data - 0 CR12 CR16 CR22 CR30 Unit Data Nominal Run Amps Maximum Start Amps Recommended Mains Fuse mm² Max Mains Cable Incoming 230V / 1Ph + N / 60Hz Mains Supply... -
Page 30: Electrical Data - 0
CR12 - CR165 50/60Hz CONDENSERS Technical Data Electrical Data - 0 CR50 CR65 CR80 CR105 Unit Data Nominal Run Amps 11.2 11.2 16.8 16.8 Maximum Start Amps Recommended Mains Fuse mm² Max Mains Cable Incoming 230V / 1Ph + N / 60Hz... -
Page 31: Electrical Data
CONDENSERS CR12 - CR165 50/60Hz Technical Data Electrical Data - 1 CR12 CR16 CR22 CR30 Unit Data Nominal Run Amps Maximum Start Amps Recommended Mains Fuse mm² Max Mains Cable Incoming 230V / 1Ph + N / 60Hz Mains Supply... - Page 32 CR12 - CR165 50/60Hz CONDENSERS Technical Data Electrical Data - 2 CR12 CR16 CR22 CR30 Unit Data 1.72 1.72 3.02 3.02 Nominal Run Amps 6.02 6.02 Maximum Start Amps Recommended Mains Fuse mm² Max Mains Cable Incoming 220V / 2Ph / 60Hz...
- Page 33 The sound data quoted is based on the unit having the STANDARD FAN running at FULL SPEED under normal operating conditions. For sound data of optional fan selections, please contact Airedale. Measurement of Sound Data All sound data quoted has been measured in the third-octave band limited values, using a Real Time Analyser calibrated sound intensity meter in accordance with BS EN ISO9614 Part 1 : 1995.
-
Page 34: Noise Data - Horizontal
CR12 - CR165 50/60Hz CONDENSERS SOUND DATA Noise Data - Horizontal Sound Overall Frequency (Hz) dB Measurement dB(A) 1000 2000 4000 8000 Power CR12 Pressure @10m Power CR16 Pressure @10m Power CR22 Pressure @10m Power CR26 Pressure @10m Power CR30... -
Page 35: Noise Data - Vertical
CONDENSERS CR12 - CR165 50/60Hz SOUND DATA Noise Data - Vertical Sound Overall Frequency (Hz) dB Measurement dB(A) 1000 2000 4000 8000 Power CR12 Pressure @ 10m Power CR16 Pressure @ 10m Power CR22 Pressure @ 10m Power CR26 Pressure... -
Page 36: Commissioning Procedure
Commissioning Procedure GENERAL To be read in conjunction with the commissioning sheets provided. CAUTION Please ensure all documents have been completed correctly and return to Airedale Technical Support immediately to validate warranty. Pre Commissioning Checklist CAUTION ALL work MUST be carried out by technically trained competent personnel. - Page 37 CONDENSERS CR12 - CR165 50/60Hz Commissioning Checklist System Readings Condensing temperature (as read on the discharge gauge) should be in the region of 40 to 41°C with an external ambient temperature of 30°C (condensing is normally 10°C. above ambient) at full fan speed.
-
Page 38: Operating Limits
Control Device Adjustment Standard AC Type Fans When the condenser is matched to an Airedale indoor unit, head pressure control is provided by the indoor unit. Unmatched condensers are supplied with a head pressure control device which can be either:... - Page 39 Optional EC Fans When the condenser is matched to an Airedale indoor unit, head pressure control is provided by the indoor unit. The fan speed of unmatched condensers is controlled by the onboard EC fan electronics connected to a pressure transducer on the outlet manifold.
-
Page 40: Commissioning Data
CR12 - CR165 50/60Hz CONDENSERS Commissioning Data Refrigerant Charging It is important that the system is charged with the correct amount of refrigerant. Remember, a seriously over or undercharged system may lead to major component failure. The final refrigerant charge level should be set by the design evaporating and condensing pressures, together with a full or nearly full sight glass. - Page 41 CONDENSERS CR12 - CR165 50/60Hz Troubleshooting FAULT POSSIBLE CAUSE REMEDY / ACTION No power Check power supply to the controller Check wire connections in accordance Wired incorrectly Unit will not start with wiring diagram on control box lid Check all wires, connections,...
-
Page 42: Maintenance
CR12 - CR165 50/60Hz CONDENSERS Maintenance CAUTION ALL work MUST be carried out by technically trained competent personnel. The equipment contains live electrical and moving parts, ISOLATE prior to maintenance or repair work. IMPORTANT Ensure relevant F-Gas Regulation checks are carried out at the appropriate period. - Page 43 CONDENSERS CR12 - CR165 50/60Hz Condenser Technical Manual 6666879 V1.2.0_05_2013...
- Page 44 Head Office Airedale International Air Conditioning Ltd Leeds Road Rawdon Leeds LS19 6JY Tel: +44 (0) 113 2391000 Fax:+44 (0) 113 2507219 E-mail enquiries@airedale.com Web: www.airedale.com TM_CONDENSERS_CR12-165_50HZ_60HZ_6666879_V1.3.0_10_2019...
