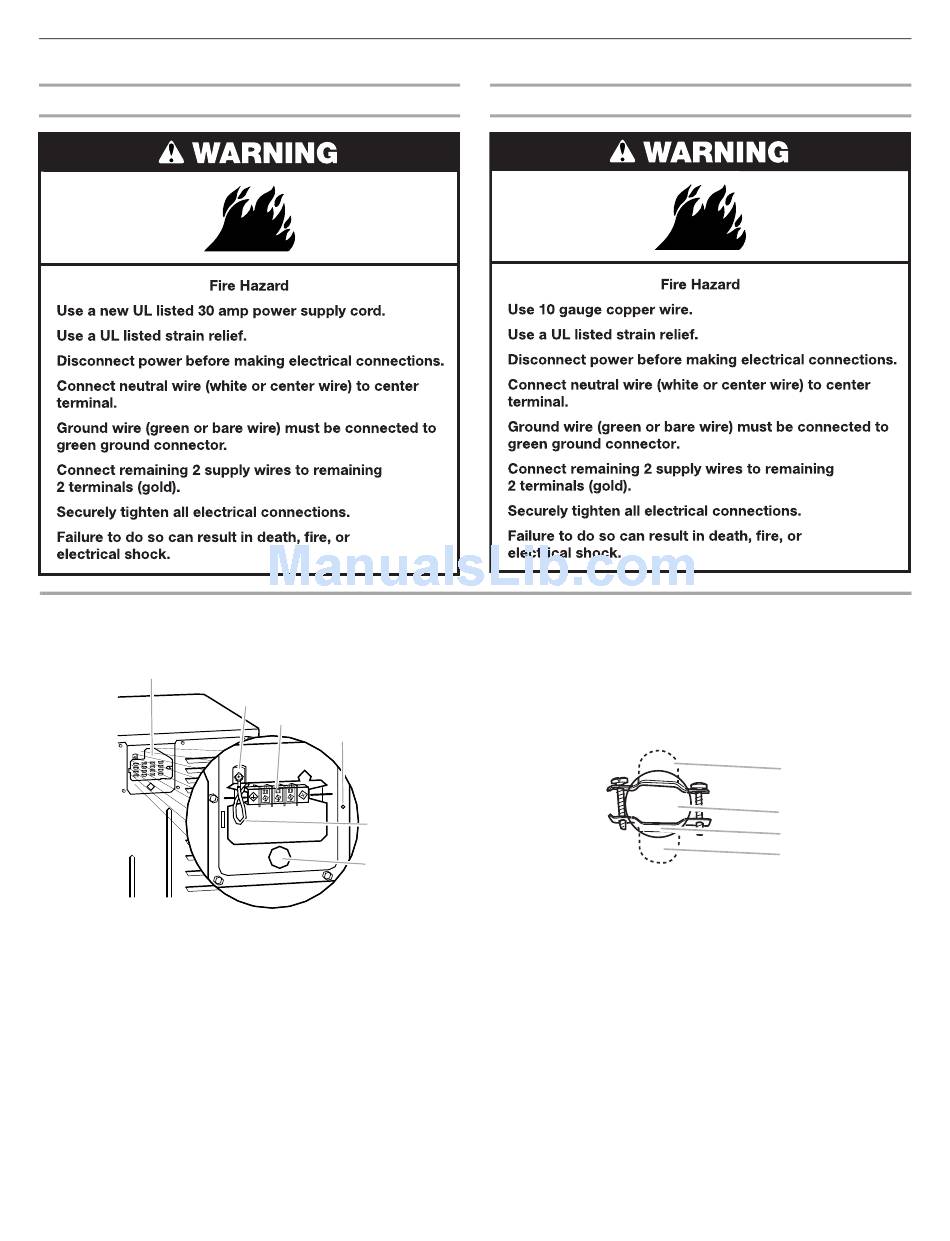

Power Supply Cord
1. Disconnect power.
2. Remove the hold-down screw and terminal block cover.
A
A. Terminal block cover
B. External ground conductor screw
C. Center terminal block screw
D. Hold-down screw location
E. Neutral ground wire
F. Hole below terminal block opening
3. Install strain relief.
6

Electrical Connection

B
C
D
E
F
Direct Wire
Style 1: Power supply cord strain relief
Remove the screws from a 3/4" (19 mm) UL listed strain
relief (UL marking on strain relief). Put the tabs of the two
clamp sections into the hole below the terminal block
opening so that one tab is pointing up and the other is
pointing down, and hold in place. Tighten strain relief
screws just enough to hold the two clamp sections
together.
A. Strain relief tab pointing up
B. Hole below terminal block opening
C. Clamp section
D. Strain relief tab pointing down
A
B
C
D
