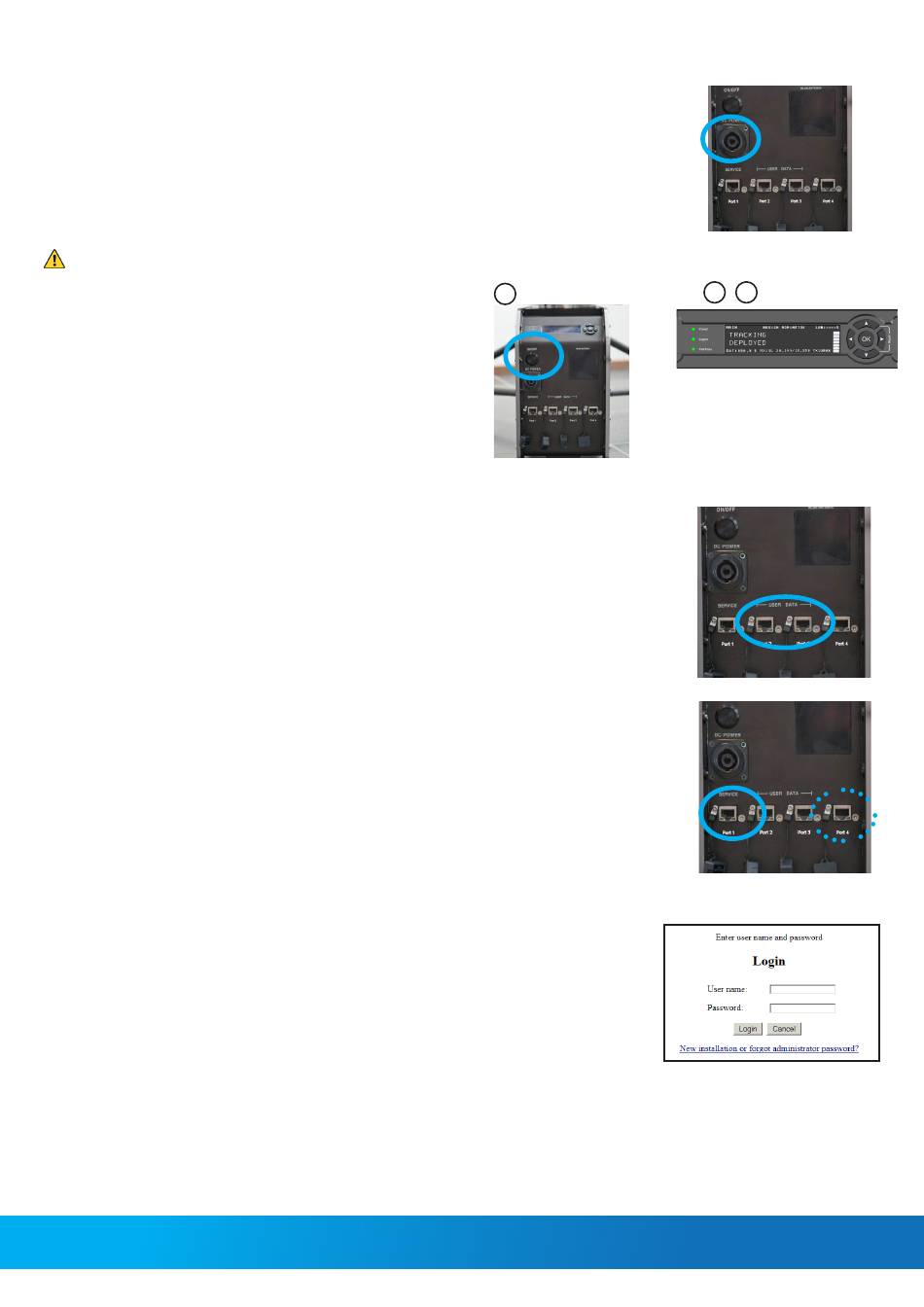

Power connection

We recommend using the EXPLORER 6000 Series Power Supply available from Cobham SATCOM
(sales item number 403160P). This power supply connects directly to the terminal and is fitted with a
Schuko EU plug for connection to standard AC outlet. A Schuko to US adapter is included.
If you want to use a different power supply, an open-ended power cable is included with the system.
Connect the Red wire to positive (V+) and the Black wire to negative (V-) in your power supply.
See the User & Installation manual for details.

Power on

WARNING: Radiation! Do not place your head or other body
parts in front of the reflector when the system is operational.
1. Press the On/Off button. The system typically auto-acquires the
network within five minutes.
2. When the connection is established, the display shows
TRACKING.
3. Wait until the field MDM: in the upper status line shows
NETOK.
NOTE: Do not cover the GNSS (GPS, Glonass, etc.) window nor
the WLAN window located in the positioner and the front of the
Base Unit respectively.

Internet

1. Use shielded LAN cables to connect a PC to Port 2 or Port 3 for Internet,
see documentation from the service provider.
2. Start a browser on the connected PC.
User & Installation manual
You can download the User & Installation manual at
https://sync.cobham.com or directly from the terminal.
To download the manual from the terminal, do as follows:
1. Connect a PC to Port 1, Service. Use a shielded LAN cable.
NOTE: If you are using a PC on a corporate network, connect to Port 4 instead.
Port 1 is configured as DHCP server.
2. Open your browser and access the web interface at http://192.168.0.1 (default for Port 1).
3. Log in as guest or as administrator. For first time login see the next section.
After login, the DASHBOARD is displayed.
4. Click HELPDESK and then Support.
5. Click the link Download manual.

Administrator login - first time

To log in as an administrator do as follows:
1. Connect a PC to Port 1, Service (use a shielded LAN cable).
2. On the keypad, push and hold the left arrow key for 5 seconds.
3. Wait for the short display of Local administration followed by the event 0807F-0
WARNING Local administration enabled.
This gives you temporary administrator access for 1 hour or until next restart.
4. Open your browser and access the web interface at http://192.168.0.1 (default).
5. Enter the user name admin (no password is required) and click Login.
The DASHBOARD is displayed.
6. Enter an admin password at ADMINISTRATION > User login, section Change Login.
