Swing-N-Slide Palisade II Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

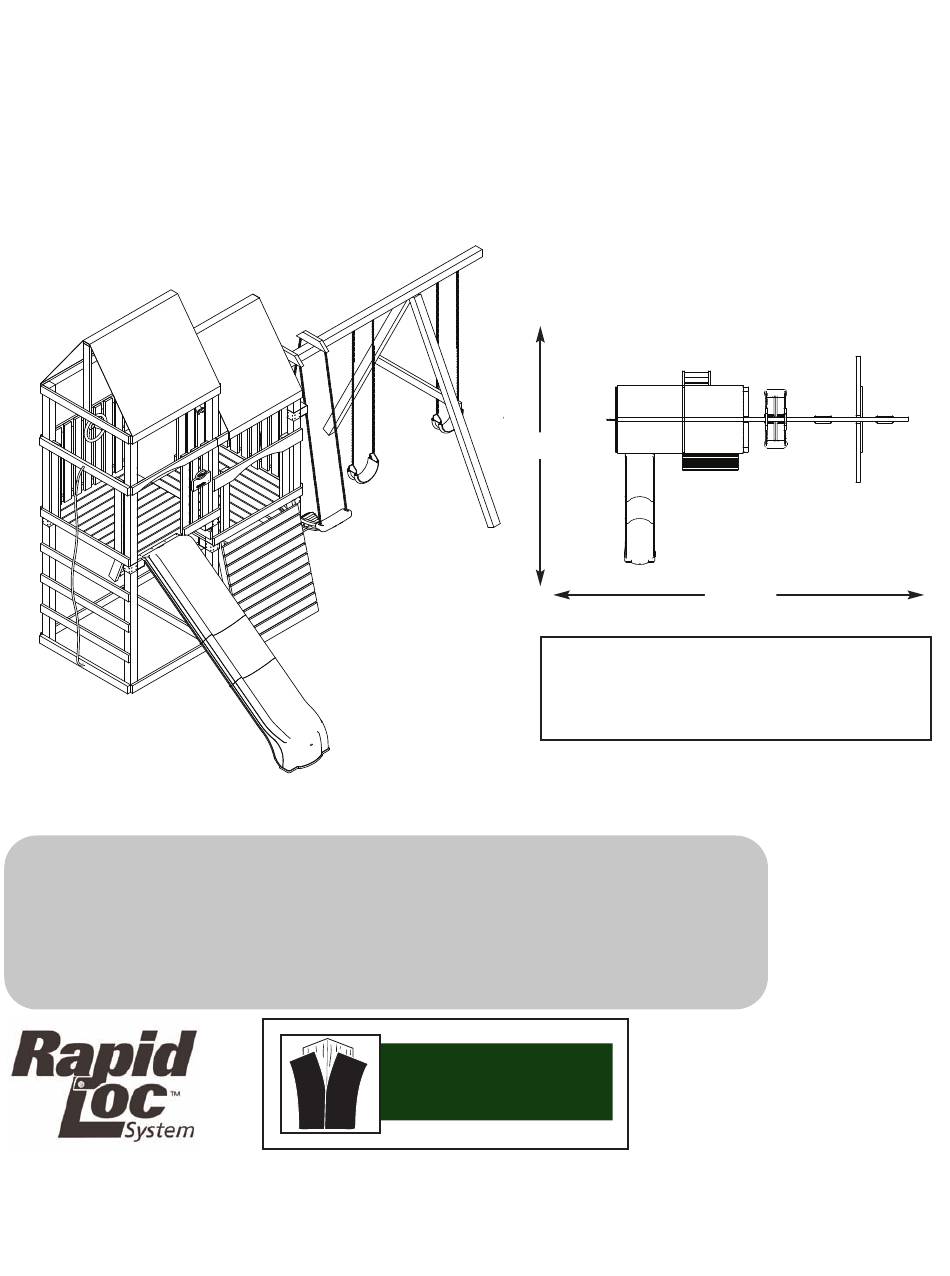

PB 8250
Palisade II
TM
30'
30'
No. of Children: Up to 12
Min. Use Zone: 30 ' x 30 '
Set Dim. 12-1/2 'W x 17-1/2 'L x 13'H
Est. Building Time: 5-10 hr.
check out http://www.swing-n-slide.com/timberbiltplanupdates.htm
for updates to these instructions
For more information, visit these links:
http://www.swing-n-slide.com/timberbilt
http://www.homedepot.com
http://www.homedepot.ca
TIMBER•GLOVE
TM
ASSEMBLY INSTRUCTIONS
Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Palisade II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swing-N-Slide Palisade II

Summary of Contents for Swing-N-Slide Palisade II

  • Page 1 For more information, visit these links: http://www.swing-n-slide.com/timberbilt http://www.homedepot.com http://www.homedepot.ca TIMBER•GLOVE ASSEMBLY INSTRUCTIONS Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545 Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232...
  • Page 2 When the equipment is taken out of service, it must be disassembled and disposed of in such a way that no unreasonable hazards will exist at the time the set is discarded. Important! Additional Safety Instructions for all Swing-N-Slide Playground Equipment. Save this instruction sheet in the event the manufacturer needs to be contacted.
  • Page 3 This product is intended for single family home/residential use only and not intended for use in any public setting. Placement in any public setting constitutes a misuse of this product. IMPORTANT! ADDITIONAL REQUIRED SAFETY INSTALLATION INSTRUCTIONS According to ASTM requirements, all kits must be anchored to the ground and, if the unit has a climbing rope, the rope end must be anchored to the ground. If soil conditions permit stakes to be pulled out easily, cementing into ground is necessary.
  • Page 4 TOOLS REQUIRED HAMMER ELECTRIC DRILL SAFETY GLASSES CARPENTER'S SQUARE TAPE MEASURE & DUST MASK (8) 1-3/4'' panhead screws (2) 1/2'' panhead screws (14) 5/16'' flat washers (4) 5/16''Hex Head Lag Screws (78) 2" lag screw (161) 1-1/4'' screws (8) 1/4'' flat washers (12) Tarp Washers (102) 1-1/2'' screws (509) 2-1/2'' screws...
  • Page 5 1212 Barberry Drive Janesville, WI 53545 1-800-888-1232 PANTONE "NEWCO RED" www.swing-n-slide.com (2) EZ Frame Brackets (1) Name Plate (4) Extra-Duty Swing Hangers (1) Tailor’s Chalk (2) Heavy-Duty Canopies Palisade II Plan (1) Instructional DVD (1) T30 Torx® Bit (1) Plan...
  • Page 6 (4) Anchor-It Straps (1) Outrigger (1) 10' Summit Slide With Hardware With Hardware 225 lb 250 lb Weight Limit Weight Limit (4) Anchor-It (1) Eye Strap (1) Steering Wheel (1) Periscope With Hardware With Hardware (1) Climbing Rope With Hardware 150 lb Weight Limit (2) Safety Handles...
  • Page 7 PALISADE II DESIGN (1) 2'' x 4'' x 17-1/4'' (Slide Stake) (5) 2'' x 4'' x 17-1/4'' (2) 2'' x 4'' x 22'' (3) 2'' x 4'' x 30'' (2) 2'' x 4'' x 46-1/4'' (7) 2'' x 4'' x 47-1/2''...
  • Page 8 How to select the correct fastener Use these 2 pictorial guides to help select the correct fastener(s) for the lumber attachment you are making. Each diagram will highlight the correct number of fasteners to use, and where to attach them. 5/4’’...
  • Page 9 • TIMBER-GLOVE provides complimentary color for treated 4x4 lumber and enhances the appearance of completed premium stained lumber play set. • 9 TIMBER-GLOVE lumber wraps are included in each Palisade II NO-Cut kit, and feature easy to attach hook and loop fasteners allowing for fluctuating lumber dimensions.
  • Page 10 TIMBER-GLOVE™ APPLICATION Step 1 4'' x 4'' TIMBER-GLOVE TIMBER-GLOVE application Step One 1. Layout your 4'' x 4'' on top of one rolled out and flattened TIMBER-GLOVE. Step 2 4'' x 4'' TIMBER-GLOVE TIMBER-GLOVE application Step Two 2. Pull TIMBER-GLOVE snug around 4'' x 4'' starting at one end and continuing to the other. Step 3 TIMBER-GLOVE application Step Three 3.
  • Page 11 Understanding how the Bracket System Works Example of a Shelf-Loc bracket connection. Shelf-Loc Bracket CORRECT! Wrap-Loc WRONG! Brackets ''clipped'' brackets NOT interlocked! Example of a Shelf-Loc bracket connection. Look for ''TOP'' stamp on bracket for correct orientation. Top of bracket Introduction to the Bracket system Wrap-Loc 1.
  • Page 12 Look for ‘’TOP’’ Use a 2’’ lag screw stamp on brackets to hold bracket in while installing. place for later use. Frame 1 Construction DO NOT USE LAG SCREWS HERE Use Lag Screws Only Where Brackets Attach 4'' x 4'' x 120'' 4'' x 4'' x 96'' Fig.1 ALIGN SEAM AS SHOWN...
  • Page 13 •WARNING• Frame 1 Construction Avoid splitting your lumber by offsetting your screws at least 3/4’’ from edge. Fig.1a 2-1/2'' screws (per joint) Double check to make sure structure is square 72-1/4'' 2-1/2'' screws per joint 2-1/2'' screw 2-1/2'' screws per joint A.
  • Page 14 Look for ‘’TOP’’ Use a 2’’ lag screw stamp on brackets to hold bracket in while installing. place for later use. Frame 2 Construction DO NOT USE LAG SCREWS HERE Use Lag Screws Only Where Brackets Attach Fig.2 4'' x 4'' x 120'' 4'' x 4'' x 96'' 2'' Lag Screws per joint...
  • Page 15 Frame 2 Construction Fig.2a Double check to make sure structure is square 2-1/2'' screws per joint 2-1/2'' screws per joint 72-1/4'' 2-1/2'' screws 2-1/2'' screws per joint B. Frame 2 Construction cont. 2-1/2'' screw 2. Attach 5/4'' boards as shown in (Fig. 2a).
  • Page 16 Tip: Flex brackets to make installation of 4'' x 4'' easier Fig.3 Fig. 3a Approx. 1/4'' 2'' Lag Screws per joint C. Frame 1 Construction 1. Insert and secure 4'' x 4'' as shown in (Fig. 3), 2'' Lag screw and (Fig.
  • Page 17 Fig.3b Tip: Flex brackets to make installation of 4'' x 4'' easier Fig. 3c Approx. 1/4'' 2'' Lag Screws per joint C. Frame 2 Construction cont. 2. Insert and secure 4'' x 4'' as shown in (Fig. 3b), and (Fig. 3c). 2'' Lag screw...
  • Page 18 Fig. 4 2-1/2'' screws per joint 50'' To Ground 47'' To Ground 2-1/2'' screws per joint D. Frame Construction 2-1/2'' screw 1.Install 5/4'' boards as shown above.
  • Page 19 Fig. 5 Double check to make sure structure is square 2-1/2'' screws per joint 2-1/2'' screws per joint 2-1/2'' screw D. Frame Construction cont. 1. Attach Frame Two as shown above.
  • Page 20 Fig. 6 NOTE: Hardware Securing 5/4'' x 4'' x 40'' 5/4'' x 4'' x 40'' Boards Must Be Applied At An Angle, As 5/4'' x 4'' x 40'' Shown Here. Fig. 6a 2-1/2'' screws per joint (6) 5/4'' x 4'' x 44'' 2-1/2'' screws per joint Fig.
  • Page 21 Look for ‘’TOP’’ Use a 2’’ lag screw stamp on brackets to hold bracket in while installing. place for later use. DO NOT USE LAG SCREWS HERE Fig. 7 Use Lag Screws Only Where 4'' x 4'' x 120'' Brackets Attach ALIGN SEAM AS SHOWN SEAMS FACING TOWARDS EACH OTHER...
  • Page 22 Fig. 8 Double check to make sure structure is square 2-1/2'' screws per joint 2-1/2'' screws per joint 96'' 62-1/2'' 2-1/2'' screws per joint G. Install Support Boards 1. Install 2'' x 4'' and 5/4'' x 4'' boards as shown in (Fig. 8).
  • Page 23 Fig.10 Fig. 9 Tip: Flex brackets to make installation of 4'' x 4'' easier 2'' Lag Screws per joint Fig.10a Fig. 5c Approx. 1/4'' Fig. 10b H. Install 4x4 1. Install 4'' x 4'' as shown in (Fig. 9), (Fig. 10), (Fig.
  • Page 24 Fig. 11 2-1/2'' screws per joint 92-1/2'' GROUND 2-1/2'' screws per joint H. Frame 3 Construction 1. Install 5/4’’ x 4’’ support boards as shown 2-1/2'' screw in (Fig. 11).
  • Page 25 Fig. 12 2-1/2'' screws per joint Double check to make sure structure is square 2-1/2'' screws per joint I. Frame 3 Attachment 1. Attach Frame 3 to Frames 1 and 2 as shown in (Fig. 12). 2-1/2'' screw...
  • Page 26 Fig.13a Fig. 13 Fig.13b Tip: Flex brackets to make installation of 4'' x 4'' easier 2'' Lag Screws per joint Approx. 1/4'' Fig. 13c 2'' Lag screw I. Install 4X4 1. Install 4'' x 4'' as shown in (Fig. 13), (Fig. 13a), (Fig.
  • Page 27 NOTE: Fig. 14 Hardware Securing 5/4'' x 4'' x 40'' Boards Must Be Applied At An Angle, As Shown Here. 2-1/2'' screws per joint Fig. 15 2-1/2'' screws per joint J. Install Upper Deck Boards 1. Install Upper 5/4'' x 4'' Deck Board and 2'' x 4'' Upper Deck Support as shown in (Fig.
  • Page 28 Fig. 16 2-1/2'' screws per joint 2-1/2'' screws K. Install Barrier Support Boards 2-1/2'' screw 1. Install 5/4'' boards as shown in (Fig. 16).
  • Page 29 Fig. 18 Fig. 17 Tip: Flex brackets to make installation of 4'' x 4'' easier Approx. 1/4'' 2'' Lag Screws per joint 2'' Lag screw Fig. 19 M. Install Swing Beam Support 4x4 1. Work (1) 4'' x 4'' into brackets as shown in (Fig. 17), (18). 2.
  • Page 30 Q. Swing Beam Drill Locations Fig. 20 1. Lay 4'' x 4'' x 10’ on the ground. Mark the Swing Beam drill locations as shown in (Fig. 20). 2. Lay the TIMBER-GLOVE Swing Beam Wrap over the 117-1/2'' marked Swing Beam Aligning the TIMBER-GLOVE pre-sewn holes with the drill location marks to 114-1/2'' confirm accuracy of layout.
  • Page 31 Fig. 21 Fig. 21a 4-1/2'' CARRIAGE BOLTS FOR SWING HANGERS 4'' CARRIAGE BOLTS FOR A-FRAME WOOD LOC WASHER Q. Swing Beam Hardware 1. Flip 4'' x 4'' Swing Beam over so that the opposite side of your drilled holes are facing upwards. 2.
  • Page 32 Fig. 21b TIMBER-GLOVE™ Seam WASHER LOC-NUT Fig. 21c WASHER LOC-NUT Q. Swing Beam Drill Locations 1. Flip 4'' x 4'' Swing Beam so Carriage Bolts point downward as shown in (Fig. 21b) Swing Hangers must be installed on the same face of the Swing Beam where holes were first measured. 2.
  • Page 33 Fig. 22 Loc Nut Washer Carriage Bolt 18" Fig. 22a 8" min. 8" min. A-FRAME ATTACHES HERE Fig. 22b Caution: Be certain to Place Outrigger Brackets as shown in Swing Beam Instructions (Fig. 22 ) where Hook TIMBER-GLOVE & Loop is absent on Swing beam Fig.
  • Page 34 Fig. 23 R. A-Frame Assembly (8) 2-1/2’’ Screws 1. Layout 4'' x 4’’s and 2'' x 4'' as shown in (Fig. 23a) 2. Make certain to align 4'' x 4''s with the TimberGlove seams on the inside of the A-Frame (facing towards each other).
  • Page 35 Fig. 24 TIMBER-GLOVE™ Seam Washer 2-1/2'' screws Loc-Nut 2-1/2'' screw S. A-Frame Assembly cont. 1. Align EZ-Frame Bracket with carriage bolts on Swing Beam in the location shown in (Fig. 22). 2. Attach A-Frame beam to Swing Beam using (2) washers and (2) Loc-Nuts and 2 screws as shown in (Fig. 24). 3.
  • Page 36 T. A-Frame Assembly cont. Fig. 25 1. Position Split-Brackets on 4'' x 4'' x 47-1/2'' as shown in (Fig. 25). 2. With the help of others, lift A-Frame and Swing Beam Assembly and center onto unit as shown in (Fig. 26) 3.
  • Page 37 1-1/2'' screws per joint NOTE: 2'' x 4'' Must Be Secured From Outside Deck Fig. 27 1-1/2'' screws per joint 1-1/2'' screw Install Barrier Boards 1. Install 5/4'' and 2'' x 4'' boards as shown in (Fig. 27). Space boards evenly.
  • Page 38 Fig. 28 1-1/2'' screws per joint 1-1/2'' screws per joint 1-1/2'' screw V. Barrier Boards 1. Install 5/4'' barrier boards evenly spaced in the opening. NOTE: Make certain 38-1/2'' Barrier Boards extend 1-3/4'' above Swing Beam Support as shown above. NOTE: Make certain the center 38-1/2'' board is flush with the top of swing beam support.
  • Page 39 Fig. 29 1-1/2'' screws per joint 2-1/2'' screws per joint NOTE: 2'' x 4'' Boards Must Be Secured From Outside Deck 1-1/2'' screw V. Barrier Boards 1. Install 5/4'' and 2'' x 4'' barrier boards evenly spaced in the opening.
  • Page 40 2-1/2'' screws Fig. 30 per joint 2-1/2'' screws per joint 2-1/2'' screws per joint 2-1/2'' screw V. Canopy Support 1. Install 5/4'' Canopy Support boards as shown above.
  • Page 41 Fig. 31 2-1/2'' screws per joint 1-1/2'' screws per joint 2-1/2'' screws per joint 2-1/2'' screw V. Canopy Supports 1. Install 5/4'' x 4'' roof supports as 2-1/2'' screws per joint shown in (Fig. 31). 2-1/2'' screws per joint Fig. 32 Flush Fig.
  • Page 42 Fig. 34 NOTE: 1/4'' Overhang 1/4'' Overhang 2'' GAP 4' Climbing Rock Wall will require 8 Climbing Rocks Climbing Wall. 1. Assemble and install Climbing Wall Frame as shown in (Fig. 34), (Fig. 35). 2. Attach (11) 5/4'' x 4'' boards to (2) 2'' x 4'' boards as shown in (Fig.
  • Page 43 Fig. 37 2-1/2'' Deck Screws (3 per joint) 20'' 2-1/2'' screw Swing Guard 1. Install 5/4'' x 4'' Swing Guard as shown in (Fig. 37).
  • Page 45 Fig. 39 Fig. 40 E X A MPL E OF L AD D E R R UN G IN S TA LL AT IO N 2-1/2'' screws each side 1-1/4'' screws • BOTTOM OF LADDER RAIL • 2-1/2'' screw 2-1/2'' screws each joint Ladder Assembly (2) 2'' x 4'' x 46-1/4'' Slant Cut Ladder Rails...
  • Page 46 Fig. 41 42-3/4'' 28-1/2'' 14-1/4'' 2'' Lag screw 2-1/2'' screws per joint 2-1/2'' screw Fig. 42 Fig. 42a Eye Strap 2'' Lag Screws Climbing Rope 1. Install 5/4’’ boards as shown in (Fig. 41). 2. Secure top of Climbing Rope as shown in (Fig. 42a). 3.
  • Page 47 Anchor-It Fig. 43 S. Anchor-It Installation. Instructions for Anchoring Swing•N•Slide Activity Flat Washer Centers 1. Determine the final location of your activity center. 2. Place the Anchor-It stakes adjacent to the base and near the corners of your activity center (at the bottom of the legs on swing sets) and twist the auger-style stakes into the ground until only the loop is exposed.
  • Page 48 Fig. 44 W. Slide Installation. 1. Assemble three piece slide by bolting together at eleven (11) holes on each seam: (11) 5/16'' x 3/4'' head bolt, (11) 5-16'' loc-nut and (22) 5/16'' flat washers at each location. See (Fig. 44). 2.
  • Page 49 Fig. 1 (2) 1-1/4'' screws UTRIGGER SEAT ASSEMBLY. Bolt Cover 1. Place a rod cap on a hard surface. Insert steel rod into cap and tap into cap with a hammer. 2. Insert the seat section into the handle section as shown in (Fig.
  • Page 50 STEERING WHEEL - PERISCOPE STEERING WHEEL INSTRUCTIONS 1. Choose a desired location for the steering wheel and drill a 3/8" diameter hole through the lumber. NOTE: If lumber is greater than 2" in depth, you will need to counterbore the hole appropriately.
  • Page 52 Questions???... Call our Customer Service Department at 1-800-888-1232 © PlayCore Inc. 2008 Printed In USA LA 5850...
