Summary of Contents for Keysight N9342CN

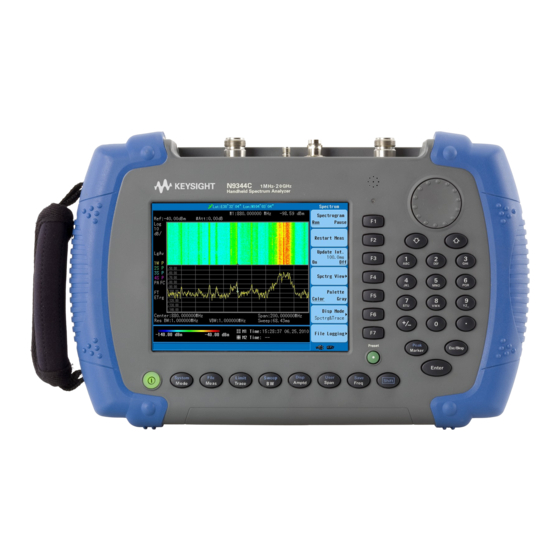

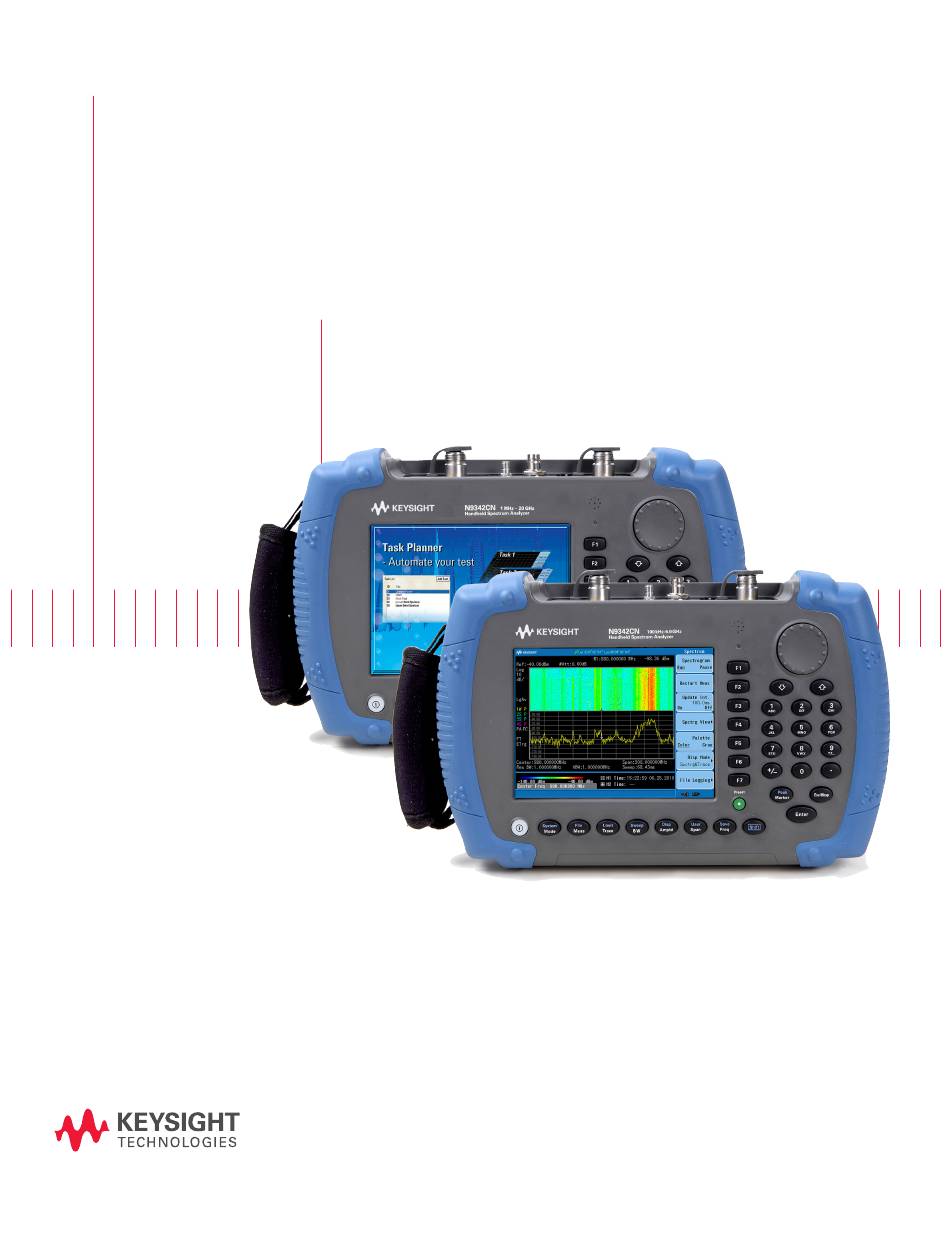

- Page 1 Keysight Technologies N9342CN/N9342CNTG Handheld Spectrum Analyzer (HSA) Configuration Guide...
-
Page 2: Ordering Information
This configuration guide will help you determine which performance options, measurement application software, accessories, and services to include with your new Keysight Technologies, Inc. N9342CN/N9342CNTG HSA, or to add as upgrades to an existing Keysight N9342CN/N9342CNTG HSA. Configure Your Keysight N9342CN/N9342CNTG HSA... - Page 3 03 | Keysight | N9342CN/N9342CNTG Handheld Spectrum Analyzer (HSA) – Configuration Guide (continued) Configure your Keysight N9342CN/N9342CNTG HSA Description Option number Additional information Step 6. Add optional measurement features Spectrum monitor N9342CNTG-SIM Adds spectrogram view, record, playback, and audio alert. Useful tool for spectrum...
- Page 4 04 | Keysight | N9342CN/N9342CNTG Handheld Spectrum Analyzer (HSA) – Configuration Guide (continued) Configure your Keysight N9342CN/N9342CNTG HSA Description Option number Additional information Step 7. Add an accessory (continued) Bandpass filter N9311x-550 3 dB passband 814 to 850 MHz Rejection ≥ 36 dBc at 740 MHz/≥ 36 dBc at 915 MHz Insertion loss ≤...
-
Page 5: Instrument Upgrades
10 Hz to 3 MHz, 1-3-10 sequence. Available only on N9342CN-506 and N9342CNTG-506 N9342CNK-RBW Fine resolution step attenuator N9342CNTGK-FSA 0 to 50 dB, in 1 dB step. Available only on N9342CN-506 and N9342CNTG-506 N9342CNK-FSA LAN port support N9342CNTGK-LAN Adds LAN port support. Available only on N9342CN-506 and N9342CNTG-506... -
Page 6: Hardware Upgrades
06 | Keysight | N9342CN/N9342CNTG Handheld Spectrum Analyzer (HSA) – Configuration Guide Hardware Upgrades Add additional accessories to your existing Keysight N9342CN/N9342CNTG HSAs Description Option number Additional information Spare battery N9342CNTGK-BAT Lithium ion, 10.8 V, 4.56 A-hr N9342CNK-BAT External battery charger... - Page 7 07 | Keysight | N9342CN/N9342CNTG Handheld Spectrum Analyzer (HSA) – Configuration Guide For more information on Keysight myKeysight Technologies’ products, applications or www.keysight.com/find/mykeysight services, please contact your local Keysight A personalized view into the information most relevant to you. office. The complete list is available at: www.keysight.com/find/contactus...
