Installation Instructions
ArmorBlock MaXum Robot I/O Cable Base
and Kempf Box Plate
(Cat. No. 1792D-CB23 and -KPLT)

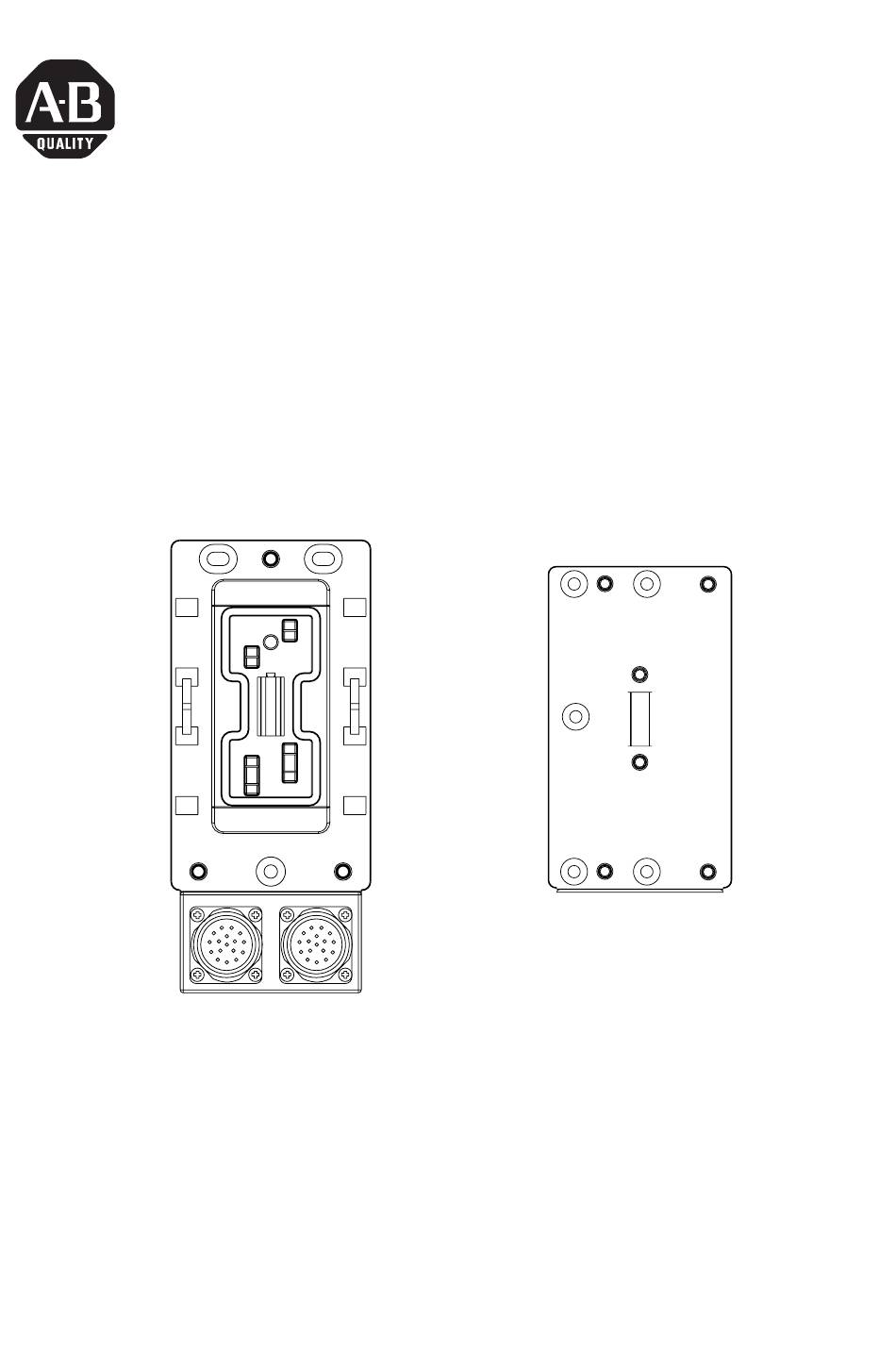

CB23
KPLT
43338
43333
The 23mm ArmorBlock MaXum™ Robot Ι/Ο Cable Base mates with 4
or 8 point modules, depending on your installation requirements, and
optionally the Kempf box plate. No modification is required. Modules
are interchangeable whether flat or round media cable bases are
used. This interchangeability provides plug and play block upgrade
capability and easy field replacement. The completely assembled
ArmorBlock module and base requires no enclosure.
Publication
1792D-IN054B-EN-P - April 2003
Advertisement
Related Manuals for Rockwell Automation ArmorBlock MaXum 1792D-CB23
Summary of Contents for Rockwell Automation ArmorBlock MaXum 1792D-CB23
- Page 1 Installation Instructions ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate (Cat. No. 1792D-CB23 and -KPLT) CB23 KPLT 43338 43333 The 23mm ArmorBlock MaXum™ Robot Ι/Ο Cable Base mates with 4 or 8 point modules, depending on your installation requirements, and optionally the Kempf box plate.
- Page 2 In no event will Rockwell Automation be responsible or liable for indirect or consequential damage resulting from the use or application of these products.
- Page 3 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 3 Throughout this publication, notes may be used to make you aware of safety considerations. The following annotations and their accompanying statements help you to identify a potential hazard, avoid a potential hazard, and recognize the consequences of a potential hazard: Identifies information about practices or WARNING...
- Page 4 4 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate Environment and Enclosure This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to 2000 meters without derating.
- Page 5 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 5 Install Your ArmorBlock Cable Base To install the cable base: • Mount the cable base • Attach the module to the base • Attach the cables These procedures are explained in detail in the following sections. Mount the Cable Base The cable base can be mounted either vertically or horizontally, using 3 screws.
- Page 6 6 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 1. Mount the MaXum Kempf plate to the Kempf box. MaXum Kempf plate MaXum Kempf box 43339 2. Mount the CB23 cable base to the gasket and the Kempf box. The mounting instructions are illustrated below.
- Page 7 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 7 Attach the Module to the Base Make sure you properly align the screws to IMPORTANT complete the connections between the module contacts and the cable contacts. 1. Position the module over the mounted cable base. Align the three captive screws in the module with the accepting receptacles in the base.
- Page 8 8 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate ArmorBlock MaXum I/O modules are described in the following publications: • 1792D series of ArmorBlock MaXum Installation Instructions • 1792-TD001 ArmorBlock Technical Data The DeviceNet Network uses advanced network technology, producer/consumer communication, to increase network functionality and throughput.
- Page 9 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 9 3. Attach your I/O connector cables. Female Male Network Network 31463-m If you connect or disconnect the DeviceNet cable WARNING with power applied to this module or any device on the network, an electrical arc can occur.
- Page 10 10 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate WARNING Use supply wires suitable for 30°C above surrounding ambient. If you connect or disconnect wiring while the WARNING field-side power is on, an electrical arc can occur. This can cause an explosion in hazardous location installations.
- Page 11 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 11 Use the graphics below to connect DeviceNet cable to your module. Publication 1792D-IN054B-EN-P - April 2003...
-
Page 12: Specifications
12 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate Specifications Robot I/O Cable Bases - Cat. No. 1792D-CB23 & -KPLT General Specifications For general specifications, see the ArmorBlock MaXum module’s documentation or the Technical Data, publication number 1792-TD001. The specifications listed in these publications are for the assembled module and cable base. -
Page 13: Hazardous Location Approval
ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 13 Hazardous Location Approval The following information applies when operating Informations sur l’utilisation de cet équipement en this equipment in hazardous locations: environnements dangereux : Products marked “CL I, DIV 2, GP A, B, C, D” are suitable Les produits marqués "CL I, DIV 2, GP A, B, C, D"... - Page 14 14 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate This product has been tested at an Open DeviceNet Vendor Association, Inc. (ODVA) authorized independent test laboratory and found to comply with ODVA Conformance Test. Please contact the ODVA website (http://www.odva.org) for listing of products tested by ODVA independent test labs for further details.
- Page 15 ArmorBlock MaXum Robot I/O Cable Base and Kempf Box Plate 15 Notes: Publication 1792D-IN054B-EN-P - April 2003...
-
Page 16: Rockwell Automation Support
ArmorBlock and ArmorBlock MaXum are trademarks of Rockwell Automation. DeviceNet is a trademark of Open DeviceNet Vendor Association (ODVA). Publication 1792D-IN054B-EN-P - April 2003 PN 957782-47 Supersedes Publication 1792D-IN054A-EN-P - August 2002 Copyright © 2003 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
