ELC-PS01, ELC-PS02
POWER SUPPLY MODULE
This instruction will be helpful in the installation, electronic specification, function specification and troubleshooting
of the ELC-PS01 and ELC-PS02.
This is an OPEN TYPE ELC-PS series. The ELC-PS series should be kept in an enclosure away from airborne
dust, high humidity, electric shock risk and vibration. Also, it is equipped with protective methods such as some
special tools or keys to open the enclosure, so as to avoid the hazard to users and the damage to the ELC-PS
series.
Never connect the AC main circuit power supply to any of the output terminals, as it will damage the ELC-PS series.
Check all the wiring prior to power up. To avoid any electromagnetic noise, make sure the ELC-PS series is
properly grounded
The power supply of ELC-PS series is only for ELC series, NOT for any other special instruments.
Model
Item
Power Input
Output Power
Ripple Noise (V
)
p-p
Efficiency
Over Load / Short Circuit
Protection
Grounding
Operation/Storage
Environment
Agency Approvals
Weight (g)
Unit: mm
2
5
ELC-PS01
1
13.3
36.5
3
.
FUNCTION/ELECTRICAL SPECIFICATION
ELC-PS01
100~240 VAC (-15%~+10%)，50 / 60 Hz
24VDC (±3%), output current: 1A max.
Under 100mV Typical at full load
78%~87% Typical at full load
Auto Recovery
The diameter of grounding wire cannot be smaller than the wire diameter of terminals L and
N (All ELC units should be grounded directly to the ground pole).
Operation: 0℃~55℃ (Temperature), 50~95% (Humidity), Pollution degree 2; Storage: -25
℃~70℃ (Temperature), 5~95% (Humidity)
Underwriters Laboratories, Inc.: UL508 Listed(Industrial Control Equipment)
European Community EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC
158

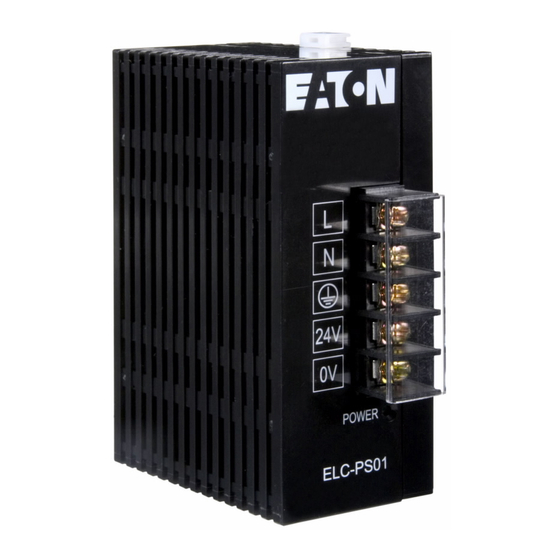

PRODUCT PROFILE AND OUTLINE
7
5
4
60
3
6
3
Instruction Sheet
WARNING
100~240 VAC (-15%~+10%)，50 / 60 Hz
24VDC (±3%), output current: 2A max.
Under 240mV Typical at full load
55
13.3
2
ELC-PS02
1
32.5
7
IL05003007E.pdf
ELC-PS02
250
60
1 Power LED indicator
Input/Output terminal
2
(fixed terminal)
3 DIN rail clip
4 DIN rail track(35mm)
4
5 I/O terminal label
6 Nameplate
7 Mounting holes
3
6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eaton ELC-PS01
Summary of Contents for Eaton ELC-PS01
- Page 1 WARNING This instruction will be helpful in the installation, electronic specification, function specification and troubleshooting of the ELC-PS01 and ELC-PS02. This is an OPEN TYPE ELC-PS series. The ELC-PS series should be kept in an enclosure away from airborne dust, high humidity, electric shock risk and vibration. Also, it is equipped with protective methods such as some special tools or keys to open the enclosure, so as to avoid the hazard to users and the damage to the ELC-PS series.
- Page 2 Please use wires of 1.6mm and above for the grounding. If the power-cut time is less than 10ms, the ELC-PS01/PS02 still operates unaffectedly. If the power-cut time is too long, the ELC-PS01/PS02 will stop operating and all the outputs will be Off.
