Contents
Graphics Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
®
Product Family Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ePro PS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Stand-Alone Touchscreen Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Power Pro LT 1100, 1700, 3000 and 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PC Pro Runtime Hardware Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connectivity: Utilities, Interfaces & Cables . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Legacy Products Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Note: Supplement to Publication No. CA8102001E - Tab 48.
PanelMate and HMi Operator Interface
For more information visit: www.eaton.com
1
Page
Advertisement
Table of Contents
Related Manuals for Eaton CA04801001E
Summary of Contents for Eaton CA04801001E
-
Page 1: Table Of Contents

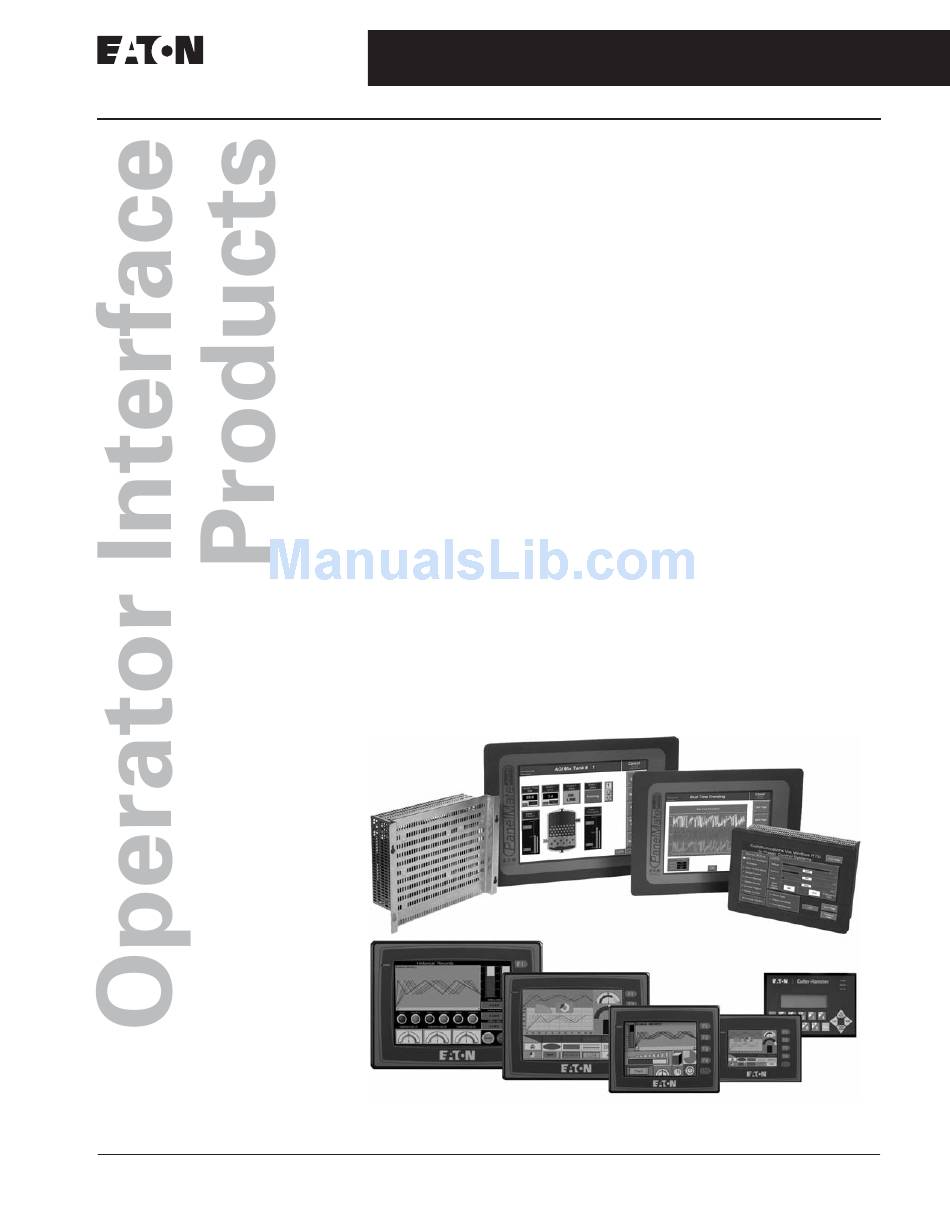

March 2008 CA04801001E Operator Interface Products Contents Description ELC Graphics Panels Graphics Panels ..........2 Software and Accessories . -

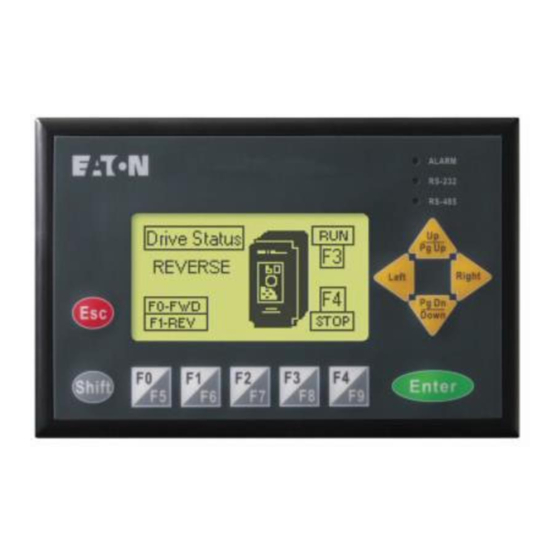

Page 2: Operator Interface Products
The slot for program copy card 24V DC input Catalog Price Number U.S. $ ELC-GP02 220. ELC-GP04 330. Discount Symbol ..... . . 2CD-5 CA04801001E... -
Page 3: Standards And Certifications
Impact 10G, 11 mS, from X, Y, Z three directions and three times for each direction Weight 0.53 Lbs. (0.24 kg) Cooling Method Natural Air Cooling CA04801001E Operator Interface Products ELC Graphics Panels Graphics Panels For more information visit: www.eaton.com... -
Page 4: Software And Accessories
GPxx unit of the same model number. Requirements: ■ Operating Systems – Windows 98, Windows ME, Windows 2000, Windows XP ■ Hard Drive – At least 100M bytes ■ RAM – At least 256M bytes Figure 1. ELC-GPXFERMOD For more information visit: www.eaton.com March 2008 CA04801001E... - Page 5 Programming Software for GP Units Program Transfer Module Cable, PC to ELC-GPxx, 9.8 ft. (3 m) Power Supply, 24 Watt, 1 Amp Power Supply, 48 Watt, 2 Amp CA04801001E Operator Interface Products ELC Graphics Panels Software and Accessories ■ The Pin definition of 9 PIN D-SUB...
-
Page 6: Dimensions
Figure 4. ECL-GP04 — Approximate Dimensions in Inches (mm) ALARM RS-232 RS-485 Pg Up Left Right Pg Dn Down Enter 1.40 (3.5) (35.5) 3.35 (85.0) For more information visit: www.eaton.com March 2008 3.35 (85.0) Cut-Out Dimensions 5.31 ~ 5.37 (135 ~ 136.5) CA04801001E... - Page 7 March 2008 3.82 (97.0) Enter 5.79 (147.0) 1.20 (30.5) 5.31 (135.0) Figure 5. ECL-GP02 — Approximate Dimensions in Inches (mm) CA04801001E Operator Interface Products ELC Graphics Panels Dimensions ALARM RS-232 RS-485 3.35 (85.0) Pg Up Left Right Pg Dn Down 1.40...
-
Page 8: Product Description
U.S. $ HMI04BU 336. HMI06BE 473. HMI06GE 499. HMI06CE 730. HMI08CE 1,313. HMI10CE 1,885. Discount Symbol ..... . . PM-1 CA04801001E... -
Page 9: Technical Data And Specifications
Buzzer Operation Voltage Wattage 2.64 NIT Rating 100 cd/m Please use isolated power supply (Not applicable for HMI08CE and HMI10CE). Recipe memory uses program memory. CA04801001E Operator Interface Products HMi Operator Interface Operator Interface HMI06BE HMI06GE HMI06CE FSTN 8 Blues... -
Page 10: Software And Accessories
HMi Screen Management For more information visit: www.eaton.com March 2008 ■ Macro editing ■ Scale application from 10" – 4" ■ Upload/download applications over ■ Upload/download register data over ■ Logic configuration for I/O expansion modules ■ Ethernet communications CA04801001E... - Page 11 Communication I/O: 1 kV Damped-Oscillatory Wave: Power Line: 1 kV, Digital I/O: 1 kV RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m CA04801001E Operator Interface Products HMi Operator Interface Software and Accessories I/O Expansion Modules The HMIEC0806 and HMIEC1612 are 14 and 28 discrete I/0 expansion modules providing 8 DC inputs and 6 relay out- puts or 16 DC inputs and 12 relay outputs.
- Page 12 C112 ~ C127 C235,C236,C237,C238,C241,C242, C244,C246,C247,C249,C251,C252, C254 (all of them are latched type) D0 ~ D407 D408 ~ D599 P0 ~ P63 E, F 32 bit: -2147483648 ~ +2147483647 32 bit: 00000000 ~ FFFFFFFF For more information visit: www.eaton.com March 2008 CA04801001E...
- Page 13 Programming Software Ethernet Modbus TCP Expansion Module I/O Expansion Module, 8 In/6 Out I/O Expansion Module, 16 In/12 Out 6" Adapter Plate for PM1000 CA04801001E Operator Interface Products HMi Operator Interface Software and Accessories HMIEC1612 5V DC, 1A (supplied by HMi ) 0.5W...
-
Page 14: Dimensions
7.01 (178.1) For more information visit: www.eaton.com March 2008 .12 (3.0) R Typ. 4.64 (117.8) 3.61 (91.8) Cut-Out Dimensions .12 (3.0) R Typ. 6.79 (172.4) 5.21 (132.4) Cut-Out Dimensions .12 (3.0) R Typ. 9.11 (231.4) 6.55 (166.4) Cut-Out Dimensions CA04801001E... - Page 15 (5.0) (18.9) 1.57 (40.0) 2.13 (54.2) (3.9) 3.86 (98.1) 2.50 (63.6) Figure 12. HMIEC0806 and HMIEC1612 Expansion Modules — Approximate Dimensions in Inches (mm) CA04801001E Operator Interface Products HMi Operator Interface Dimensions 1.70 (43.1) (.24) .06~.12 (1.6~3.0) 8.74 (222.1) (5.0) (6.5)
- Page 16 Operator Interface Products HMi Operator Interface Dimensions 2.76 (70) 3.54 (90) Figure 13. HMICENT Ethernet Expansion Module — Approximate Dimensions in Inches (mm) (6.9) (23) 2.13 (54) (10.6) 1.18 (29.9) For more information visit: www.eaton.com March 2008 4.15 (105.3) CA04801001E...
-
Page 17: Panelmate Operator Interface
10.4" Color TFT ✓ ✓ 5785 10.4" Color TFT TS and KP options are mutually exclusive. Split architecture. Classic model required. CA04801001E Operator Interface Products PanelMate Operator Interface Product Family Overview ■ Automates documentation. ■ Meets tight panel space requirements. -
Page 18: Epro Ps
Monitoring and control panels for local facilities/air handling equipment ■ Tire manufacturing mixing and building processes ■ Industrial and commercial power house controls; building HVAC controls ■ Material handling and palletizing monitoring and control ■ Automotive press and machine parts controls CA04801001E... - Page 19 One video output port ■ Protect Mode Safeguards the integrity of operating system files and data files by preventing unauthorized alterations and corruption caused by viruses or unexpected power disruptions CA04801001E Operator Interface Products PanelMate Operator Interface ePro PS ) brightness ) brightness ) brightness For more information visit: www.eaton.com...
-
Page 20: Technical Data
8" Display Models: 6.0 lbs. (2.73 kg) 10" Display Models: 10.5 lbs. (4.77 kg) 12" Display Models: 13.0 lbs. (5.91 kg) 15" Display Models: 17.0 lbs. (7.73 kg) Blind Node (No Display) Models: 4.5 lbs. (2.05 kg) For more information visit: www.eaton.com March 2008 CA04801001E... - Page 21 15.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM Blind Node (No Display, Table 22 for display options), OPC, DC, User Manual on CD-ROM Note: Customs available upon request. CA04801001E Operator Interface Products PanelMate Operator Interface ePro PS For more information visit: www.eaton.com...
- Page 22 375.00 86-00089 47.25 63-00853 3,034.00 63-00850 1,813.00 32-02540 356.00 99-5704-4 610.00 86-00087 47.25 Discount Symbol ..... . . PM-1 CA04801001E...
- Page 23 ✓ ✓ ✓ Ship Kit RoHS compliant units have a silver-colored galvanized steel back cover. Non-RoHS compliant units have a gold-colored plated steel back cover. CA04801001E Operator Interface Products PanelMate Operator Interface ePro PS For more information visit: www.eaton.com Catalog...
-
Page 24: Stand-Alone Touchscreen Displays
March 2008 Catalog Price Number U.S. $ 7585DT-12 2,452. 7585DT-15 2,787. 7585DT-17 4,682. Discount Symbol ......PM-1 CA04801001E... -
Page 25: Power Pro Lt 1100, 1700, 3000 And 5000
(touchscreen only), if such functionality is configured for the unit using the PanelMate Power Pro Windows-based configuration software. CA04801001E Operator Interface Products PanelMate Operator Interface Power Pro LT1100, 1700, 3000 and 5000 Simplified Machine Control ■... -
Page 26: Product Selection
Accessories ..... . Page 35 Discount Symbol ....PM-1 CA04801001E... - Page 27 3985SAT Gasket for Touchscreen for 3985T, 3985ST, 3985AT and 3985SAT Backlight Kit for 3985 Ship Kit for 3985 CA04801001E Operator Interface Products PanelMate Operator Interface Power Pro LT 1100, 1700, 3000 and 5000 PanelMate Power Pro 5000 Product Description The PanelMate Power Pro 5000 features a large, easy-to-see 10.4-inch color TFT display with full VGA resolution and 256...
- Page 28 Accessories ..... . Page 35 Discount Symbol ....PM-1 CA04801001E...
-
Page 29: Pc Pro Runtime Hardware Key
PanelMate’s legendary simplicity and ease of use. CA04801001E Operator Interface Products PanelMate Operator Interface PC Pro Runtime Hardware Key PanelMate PC Pro System... -
Page 30: Software
Price Number U.S. $ PMPROSW 639. PMPROSWSL 1,906. PMPROSWUP 210. PMPROSWSLUP 608. Discount Symbol ......PM-1 CA04801001E... - Page 31 Ethernet and serial connectivity to virtually any PLC platform or network, as well as a wide array of drives, motion controllers and databases. No additional fees are required. CA04801001E Operator Interface Products PanelMate Operator Interface Software Because the typical application devel-...
-
Page 32: Connectivity: Utilities, Interfaces & Cables
U.S. $ CH21A CH22A CH23 CH24 Discount Symbol ......PM-1 CA04801001E 125. 125. 125. 125. 125. - Page 33 PanelMate 1100, 1700, 3000, 5000 or ePro unit serial port and the PLC communications port using D-Shell connectors. Cables used with PanelMate ePro require a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)). CA04801001E Operator Interface Products PanelMate Operator Interface Connectivity: Utilities, Interfaces & Cables Table 42.
- Page 34 125. TI27A 125. Catalog Price Number U.S. $ SD21A 125. SD22A 125. Discount Symbol ......PM-1 CA04801001E...
-
Page 35: Accessories
Configuration Storage Module 0614 Memory unit that allows transfer of one configuration to or from the target PanelMate unit. CA04801001E Operator Interface Products PanelMate Operator Interface Accessories Mounting Collars and Plates Mounting plates and collars can be used when replacing older PanelMate products with newer models with no or minimal cutout changes required. - Page 36 76MLPSD 577. 76MLPSB 577. 76MLEED 577. 76MLEEB 577. 76MLPSCD 577. 76MLPSCB 577. Discount Symbol ......PM-1 CA04801001E...
-
Page 37: Legacy Products Spare Parts
Touchscreen for 39xx PanelMate Power Series Upgrade Kit (adds high capacity, dynamic graphics, advanced trending and Modbus enabler) Backlight Kit for 37xx Backlight Kit for 39xx Contact factory. CA04801001E Operator Interface Products PanelMate Operator Interface Legacy Products Spare Parts Catalog Price Number U.S. - Page 38 Discount Symbol ......PM-1 March 2008 PowerChain Management is a trademark of Eaton Corporation. All other trademarks are property of their respective owners. © 2008 Eaton Corporation All Rights Reserved Printed in USA Publication No. CA04801001E/CPG March 2008...
