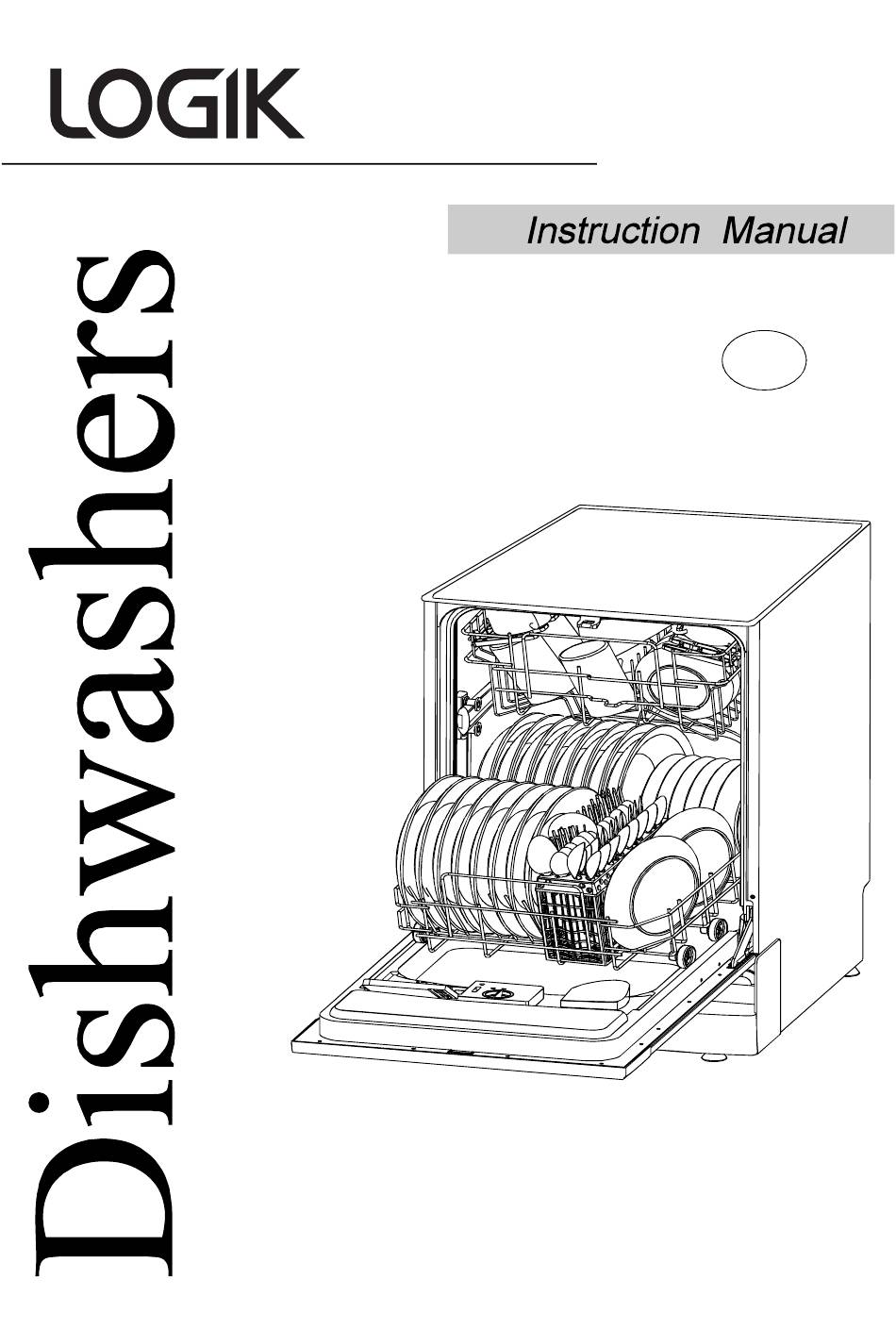

- Page 1 LF674WN / SSN...
-
Page 2: Table Of Contents
....1 Installation of dishwasher ... .2-4 This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc. - Page 3 This appliance must be earthed. In the event Improper connection of the equipment- of a malfunction or breakdown, earthing will earthing conductor can result in a risk reduce the risk of electric shock by providing a of electric shock. Check with a qualified path of least resistance for electric current.
- Page 4 Remove all packaging before positioning the machine. See the following diagram. Ensure there is a 600mm clearance each side of the machine to allow slight side ways movement for servicing You can install the machine under a close fitting sink unit . Position the machine next to a water tap and a drain.
- Page 5 Make sure your plumbing is suitable to install First connect water inlet hose to your dishwasher as . Ensure black rubber seal is with the new dishwasher. If in doubt contact a in place. qualified plumber. Then connect the straight end to your water mains supply as .
- Page 6 Installation the Plinth 1 Unscrew the two screws and adjust the distance of left and right plinth tab to your need. The adjustable range is from 39mm to 134mm. [Figure ] screw Figure a 2 Fix the plinth on the plinth tab. According to your need to adjust the plinth height, the adjustable range is from 56mm to 122mm.
- Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. PROG. ON/OFF Button: Turn on/off the dishwasher. To preset the wash timer Delayed Start Button: and delay the starting time up to 24 hours. Each press of this button increases the delay Power Light: To illuminate...
-
Page 8: Wash Cycle Table
Pre-wash (x2) Wash 42°C Pots, plates, casserole dishes. Rinse Dishes that have been sitting 3in1 Rinse 68°C with dried food on them for Drying awhile. Pre-wash Pots, plates, casserole dishes. Pre-wash 50°C Pre-wash 5g Dishes that have been sitting Wash 60°C Main Wash 22g with dried food on them for Rinse... - Page 9 If the water in your area is hard, deposit will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of water. Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area.
-
Page 10: Salt
To optimise and customise the level of salt consumption, please follow the steps below to adjust the salt consumption. 1. Remove the lower basket and unscrew the reservoir cap. 2. There is an arrow shaped indicator in the reservoir, which allows you to turn. You may turn it to the "-"... -
Page 11: Rinse Aid
Fig1 Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and help crockery to dry faster after it has been washed. Only pour rinse aid that is for domestic dishwasher into the reservoir. This model is designed to use liquid rinse aids only. Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically. - Page 12 You dishwasher has a 3 in 1 wash cycle option. It does not require salt nor rinse aid, but a 3 in 1 tablet. This dishwasher comes with a 3 in 1 tablet basket as an accessory. NOTE: Please use 3 in 1 tablet for 3 in 1 program. 1.
- Page 13 Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way 1.Items such as cups, glasses, pots/pans, etc. are stood upside down. 2.Curve items, or those with recesses, should be at a slant so that water can run off. 3.They are stacked securely and cannot tip over.
- Page 14 We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the basket in order to avoid blocking the rotation of the top spray arm.
- Page 15 Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the basket as shown.
-
Page 16: Filtering System
The filter prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters. The filter system consists of a coarse filter, a main filter and a fine filter. Main filter Food and soil particles trapped by this filter are pulverised by a special jet on the lower spray arm and washed down the drain. - Page 17 If your dishwasher is left in an unheated place over the winter, ask a service technician to: 4. Reconnect the water supply hose to the water 1. Cut off electrical power to the dishwasher. valve. 2. Turn off the water supply and disconnect the water supply 5.
- Page 18 To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finishing.
- Page 19 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.
-
Page 20: Before Calling For Service
Before calling for service . . . Problem Possible Causes What To Do Cloudiness on Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. glassware detergent Yellow or brown film... - Page 21 Specifications: RATED VOLTAGE: 230V / 50Hz RATED POWER: 1930W DIMENSION: 600X600X820(mm) A RATED ENERGY EFFICIENCY A RATED WASH PERFORMANCE A RATED DRYING PERFORMANCE Features: 12 PLACE SETTINGS 7 WASH PROGRAMMES ELECTRONIC CONTROL 2 SPRAY ARMS HEIGHT ADJUSTABLE UPPER BASKET Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
