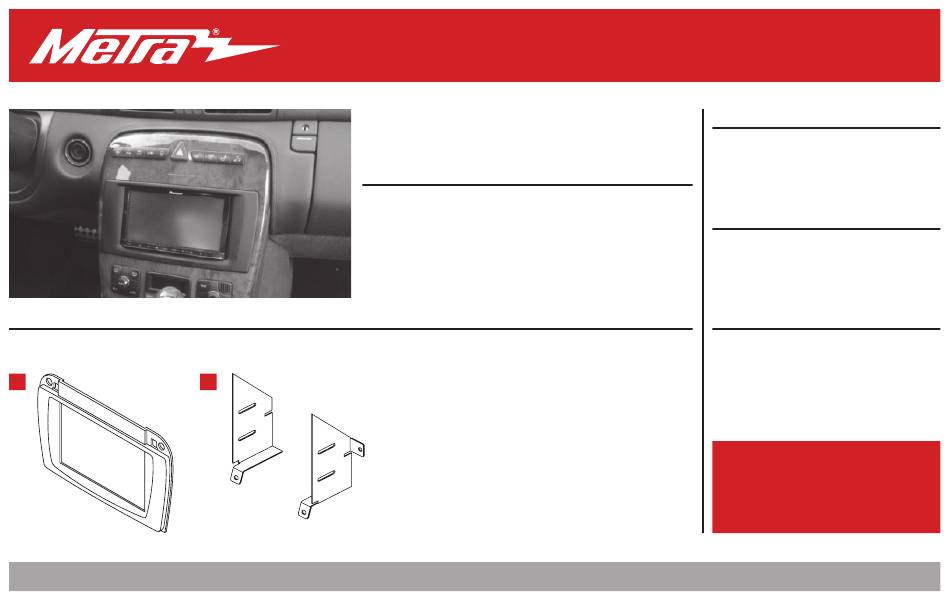

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets
A
Metra. The World's Best Kits.
®
Mercedes-Benz CL
KIT FEATURES
• ISO DDIN radio provision
• 95-8727B-Finished in black
• 95-8727W-Finished in wood
B
MetraOnline.com
Class 2003-2006
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
95-8727
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: TBA
Antenna Adapter: 40-VW12
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx T20 screwdriver
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 3/1/18 INST95-8727
