Testing and Setting the PUMP
Set and test the product before using it.
1

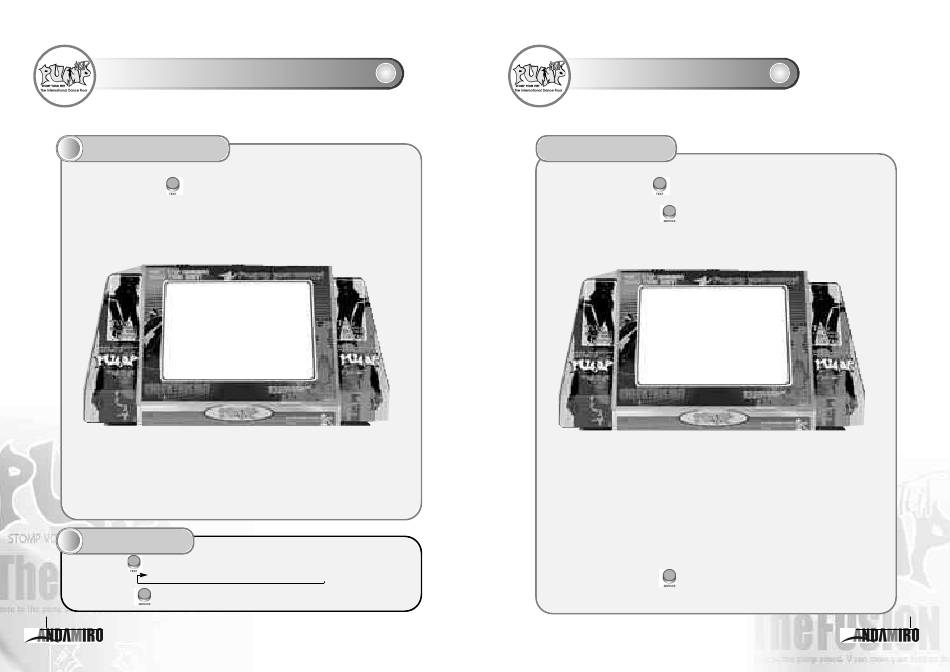

Entering the Test mode

Press the "Test" button ( ) on the board and the hardware testing and game setting menu will
appear on the screen.
SETUP MENU
I/O TEST
EEPROM TEST
SCREEN TEST
GAME OPTION
COIN OPTION
SOUND TEST
BOOKKEEPING
STATISTICS
EXIT
▶
Checking the version information
The program version information is displayed on the top and to the left of title screen
and the bottom and to the left of initial screen.
2

Setting the menu

"Test" Button ( ): Press to move to the next menu item.
I/O TEST -> EEPROM TEST -> .. -> SOUND TEST -> EXIT
"Service" Button ( ): Press to select the menu item you prefer.
8
Lock OK:0 Err:0
I / O Test
The I/O Test lets you test the pad sensors and the lamps, buttons located on the body of product.
Selecting the I/O Test
1 Press the "Test" button ( ) on the board to move the cursor to I/O TEST
in the Game Setting mode.
2
Press the "Service" button ( ) and the I/O Test items will appear on the screen.
I/O TEST
1. TEST BUTTON : OFF
2. SERVICE BUTTON : OFF
3. CLEAR BUTTON : OFF
4. COIN1 : OFF
5. COIN2 : OFF
EXIT - SERVICE BUTTON
■Pad Test
: Each pad includes four sensors. Check the sensors properly operate.
If every sensor is okay when you stand on a pad or pads, the pads shown
on the screen yellow light.
■Lamp Test : Check whether the halogen lamps (yellow, red) on the top of body
and the neon lamp (blue) located on the bottom of body (speaker) flicker
in regular sequence.
■Button Test : Check whether the Test, Service, Clear button and coin controller operate
normally. (If all lamps operate normally, their colors will be changed into red
and flicker.)
※ If nothing normal happens, contact your service center for inspection or repair.
3 Press the "Service" button ( ) again to exit from I/O TEST.
