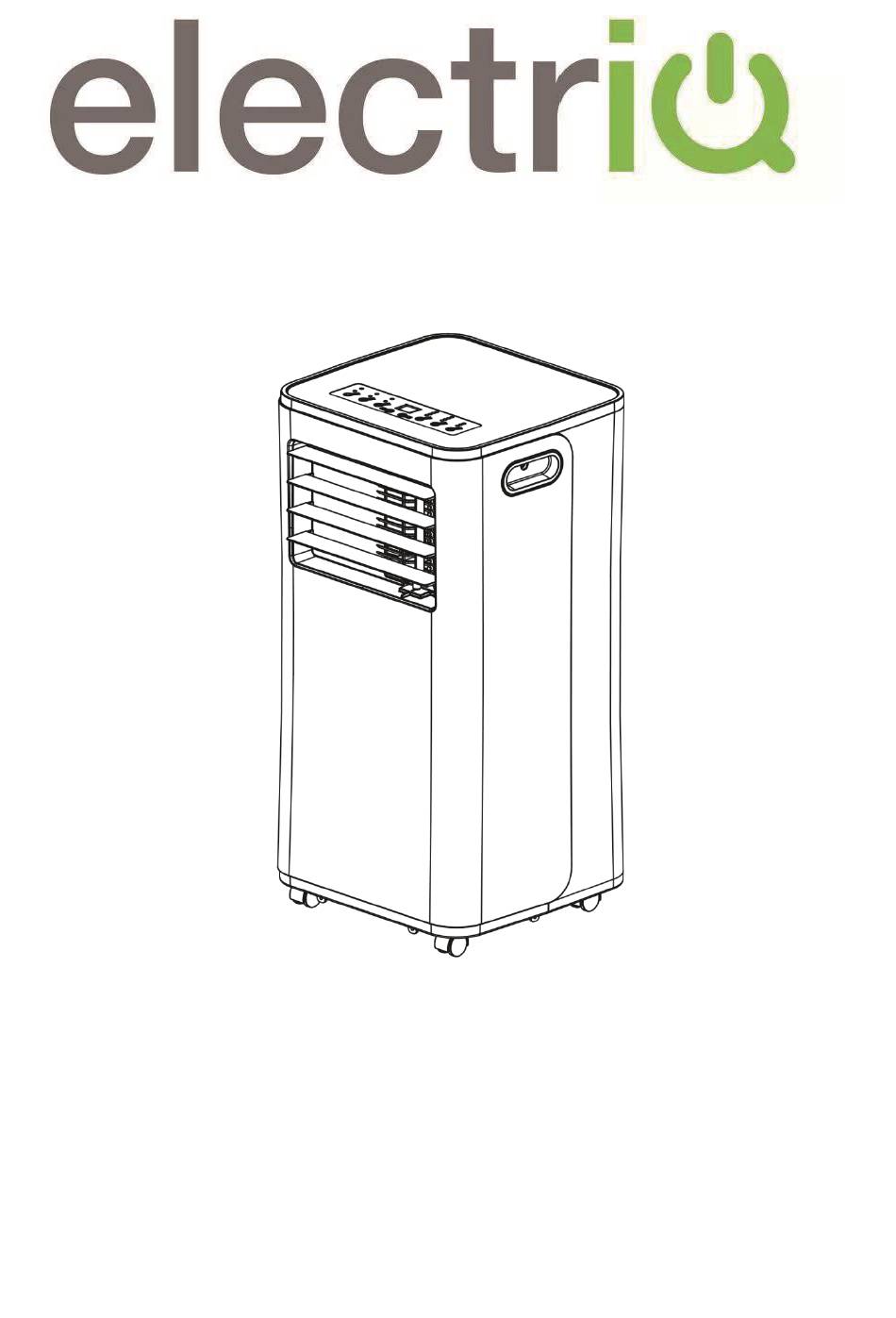

USER MANUAL
SILENT10
PORTABLE AIR CONDITIONER
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILENT10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ElectrIQ SILENT10

  • Page 1 USER MANUAL SILENT10 PORTABLE AIR CONDITIONER Thank you for choosing electriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ............3 FEATURES ................5 PARTS LIST ................5 INSTALLATION ................ 6 OPERATION ................8 REMOTE CONTROL ..............9 EMPTYING THE INTERNAL WATER TANK ......10 MANUAL DRAINAGE: ............10 MAINTENANCE ..............11 CLEANING ................11 END OF SEASON MAINTENANCE ........11 TROUBLESHOOTING ............
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used.
  • Page 4 • The appliance must be placed in a room without sources of ignition (for example: open flames, an operating gas appliance or an operating electric heater). • R290 refrigerant gas complies with European environmental directives. • R290 has a low GWP (Global Warming Potential) of 3.
  • Page 5: Features

    FEATURES ⚫ Self-evaporative system - no external water tank needed ⚫ Designer inspired luxury model ⚫ Bright LED screen, indicates temperature and operation mode ⚫ On/Off timer function – allows you to choose when the unit operates ⚫ Compressor protection technology PARTS LIST ACCESSORIES: 1:Extendable Slide Bar...
  • Page 6: Installation

    INSTALLATION Warning: Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface.
  • Page 7 NOTES: • The window kit is only designed to be installed with sliding or sash windows or doors. The window kit is not designed or to be used with any other style of windows. • The fish tail adaptor can be used without the slide bar with most windows / doors. •...
  • Page 8: Operation

    OPERATION When first plugged in the unit will automatically enter standby mode. ON/OFF button: Press to turn the unit on and enter cooling mode. The unit will default to cooling mode with a desired temperature of 22⁰C. Press again and the unit will switch off. MODE BUTTON : Press this button to change between Cooling, Fan and Dry Modes.
  • Page 9: Remote Control

    REMOTE CONTROL The air conditioner can be controlled with the remote control. Two AAA-batteries are required to use the remote control. POWER : Press the POWER button to turn the machine on or off. TIMER : Press the TIMER button to set the timer. DOWN : Press the DOWN button to decrease the desired temperature or timer...
  • Page 10: Emptying The Internal Water Tank

    EMPTYING THE INTERNAL WATER TANK MANUAL DRAINAGE: When the internal water tank is full the unit will stop working and the tank full light will illuminate. Turn off the unit and unplug. Try not to move the unit abruptly as this may cause the water in the internal tank to spill out.
  • Page 11: Maintenance

    MAINTENANCE CLEANING PLEASE SHUT OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY MAINTENANCE CLEAN THE SURFACE Clean the surface of the machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc;...
  • Page 12: Troubleshooting

    TROUBLESHOOTING Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform operations advised here. Problems Reasons Solutions...
  • Page 13: Appendix

    Please contact the local council for details of your local household waste recycling centres. TECHNICAL DATA SILENT10-V3 / SILENT10E-V3 MODEL Capacity Cooling 2.64kWh, 9,000BTU Rated Input 1.01kW...
  • Page 14 UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call the number below, or complete the online form. 0871 620 1057 1. Has the unit been standing upright for at least 2 hours? 2.
