Summary of Contents for ElectrIQ SC08

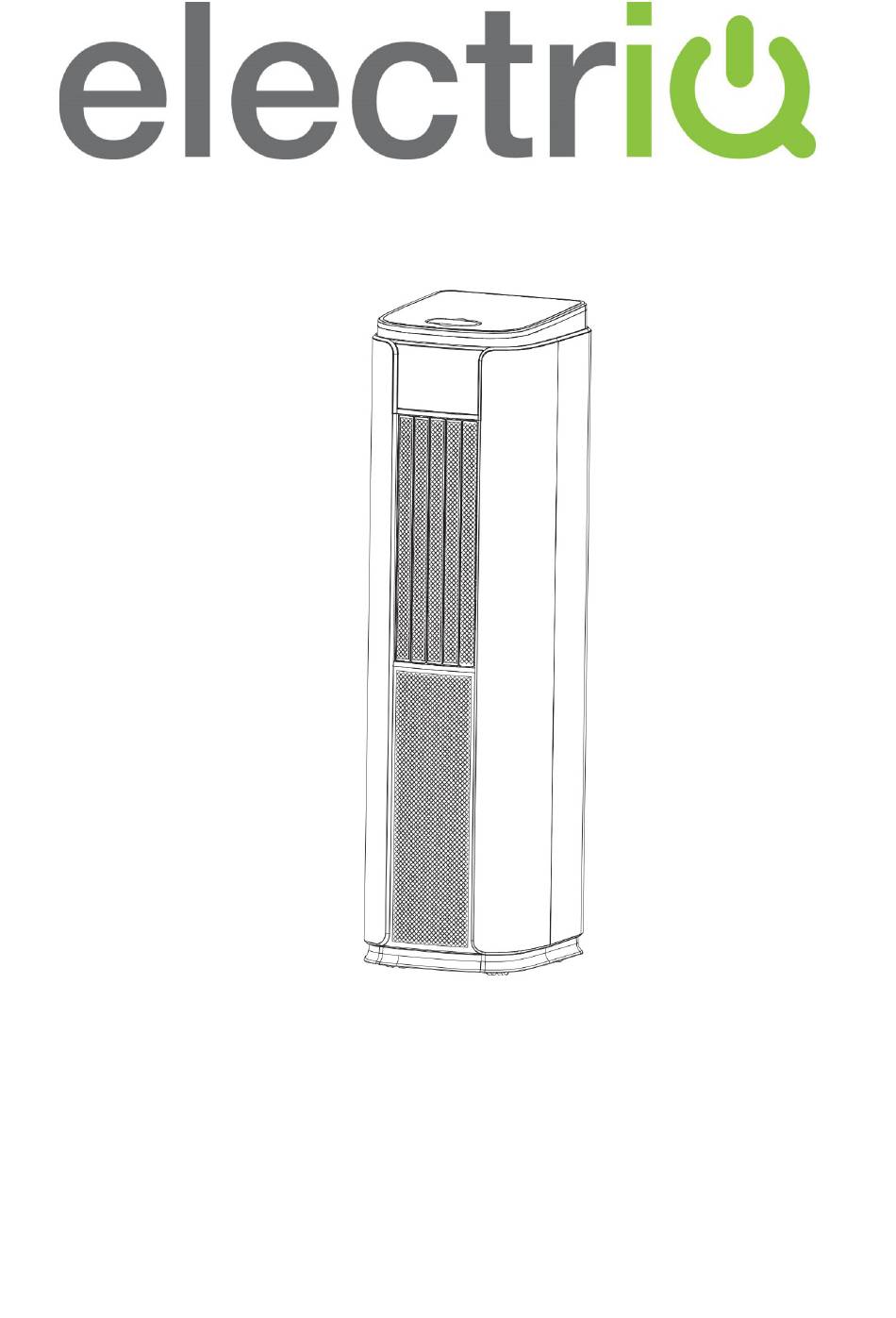

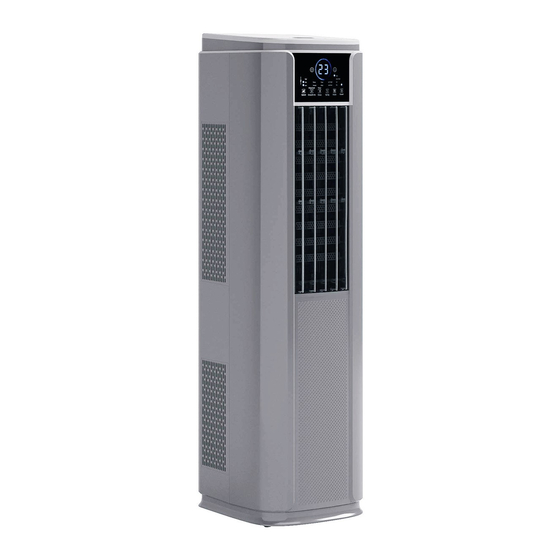

- Page 1 8000 BTU PORTABLE AIR CONDITIONER SC08 Thank you for choosing electriQ. Please read this user manual before using this innova�ve Air Condi�oner and keep it safe for future reference. Visit our page, www.electriQ.co.uk, for our en�re range of Intelligent Electricals.
-
Page 3: Table Of Contents
CONTENTS SAFETY WARNINGS FEATURES PARTS INSTALLATION OPERATION REMOTE CONTROL CLEANING AND MAINTENANCE EMPTYING THE INTERNAL WATER TANK TROUBLESHOOTING ERROR CODES SUPPORT TECHNICAL SPECIFICATION... -
Page 4: Safety Warnings
SAFETY INSTRUCTIONS Important! • Carefully read the instruc�ons before opera�ng the unit. • This appliance is for indoor use only. • Ra�ng: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. The fuse ra�ng can be found on the plug itself. •... - Page 5 • Never use the mains plug as a switch to start and turn off the air condi�oning unit. Use the provided POWER buton located on the control panel. • Always place the unit on a dry, stable, flat surface. • The appliance should not be installed in the laundry or wet rooms.
- Page 6 WARNING: This appliance contains flammable refrigerant. If this leaks and comes into contact with an external igni�on source, there is a fire risk. CAUTION: The opera�on manual should be read thoroughly. CAUTION: Any service personnel working on the unit should read the service manual prior.
-
Page 7: Features
FEATURES 3 in 1 cooling, fan, and dehumidifier. • 5-speed fan: Balancing quiet opera�on with performance. • 24 Hours Start/Stop Timer • Digital Thermostat: Set the temperature between 16°C and 32°C. • Remote Control. • Castors and Handle for Enhanced Portability. •... -
Page 8: Installation
INSTALLATION WARNING: Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit, please note that it must always be kept upright and placed on an even surface. 1. - Page 9 INSTALLATION OF WINDOW KIT The window kit (slide bar and fishtail adaptor) can be used with sliding windows and doors. For other types of windows, the fishtail adaptor should be used on its own. 1. Slide the rear section of the slide bar onto the front section, lining up the plate so it runs within the groove.
- Page 10 IMPORTANT SAFEGUARDS The length of the soft hose extends from approximately 30 cm to 180 cm. If the hose is extended above this length, the unit may malfunction, which can invalidate the warranty. The outlet vent must be well- ventilated and not obstructed, as this will cause the unit to overheat.
-
Page 11: Operation
OPERATION Press the POWER button to turn the unit ON or OFF. Press the MODE button to cycle between the 4 modes, and the indicator for the selected mode will be illuminated. COOL: The room is cooled with the cold air expelled through the front air outlet while hot air is expelled through the vent pipe. - Page 12 The timer functions cannot be combined or repeated. POWER ON TIMER With the appliance on standby, press the TIMER button to set the power-on timer. Use the + and - buttons to adjust the timer's duration (1 to 24 hours). The Timer indicator will turn on, and the unit will start after the selected number of hours.
-
Page 13: Remote Control
Scenario Adjustment Example Desired temperature reached Fan speed decreases by The desired temperature is 22; the Current one level. room temperature is 22. The current temperature has risen in the Fan speed increases by The desired temperature is 22; the room last 20 minutes. - Page 14 MULTI PROTECTIVE FUNCTIONS FROST PROTECTION In COOL, DRY or SMART COOL modes, if the temperature of the exhaust is too low, the machine will automatically stop operating until the temperature has risen. OVERFLOW PROTECTION When the water in the internal water tank exceeds the warning level, the machine will stop operating and sound an alarm with the LCD showing "E4".
-
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE PLEASE SHUT OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY MAINTENANCE CLEAN THE SURFACE Clean the machine's surface with a wet, soft cloth. Do not use chemicals such as benzene, alcohol or gasoline as acidic, corrosive, and alkaline substances may cause damage to the surface and or the internal workings of the machine. -
Page 16: Emptying The Internal Water Tank
EMPTYING THE INTERNAL WATER TANK When the internal water tank is full, the unit will stop working and display E4. There are 3 options of how to drain the internal water tank: 1) PUMP ASSISTED DRAINAGE Remove the rubber stopper from the upper drain port. -
Page 17: Troubleshooting
TROUBLESHOOTING Do not repair or disassemble the air condi�oning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform opera�ons advised here. Problems Reasons Solutions... -
Page 18: Error Codes
Please get in touch with the local council for details of your local household waste recycling centres. electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. Call the number below if the unit fails to operate or complete the online form. - Page 19 LITHIUM / COIN BATTERIES: BATTERY WARNING KEEP OUT OF REACH OF CHILDREN Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately. • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children.
-
Page 20: Technical Specification
TECHNICAL DATA Model SC08 Cooling capacity: 8,000 BTU Rated Input: 900W Running Current: 4.2A Fan: 5 speeds Airflow: 450m EER Rate: Refrigerant: R290/150g Sound Power Level: 56dB(A) Thermostat: 16-32˚C Maximum Allowable Pressure of suction/ 1.0/3.5Mpa exhaust side: Maximum Allowable Pressure 3.5MPa...
