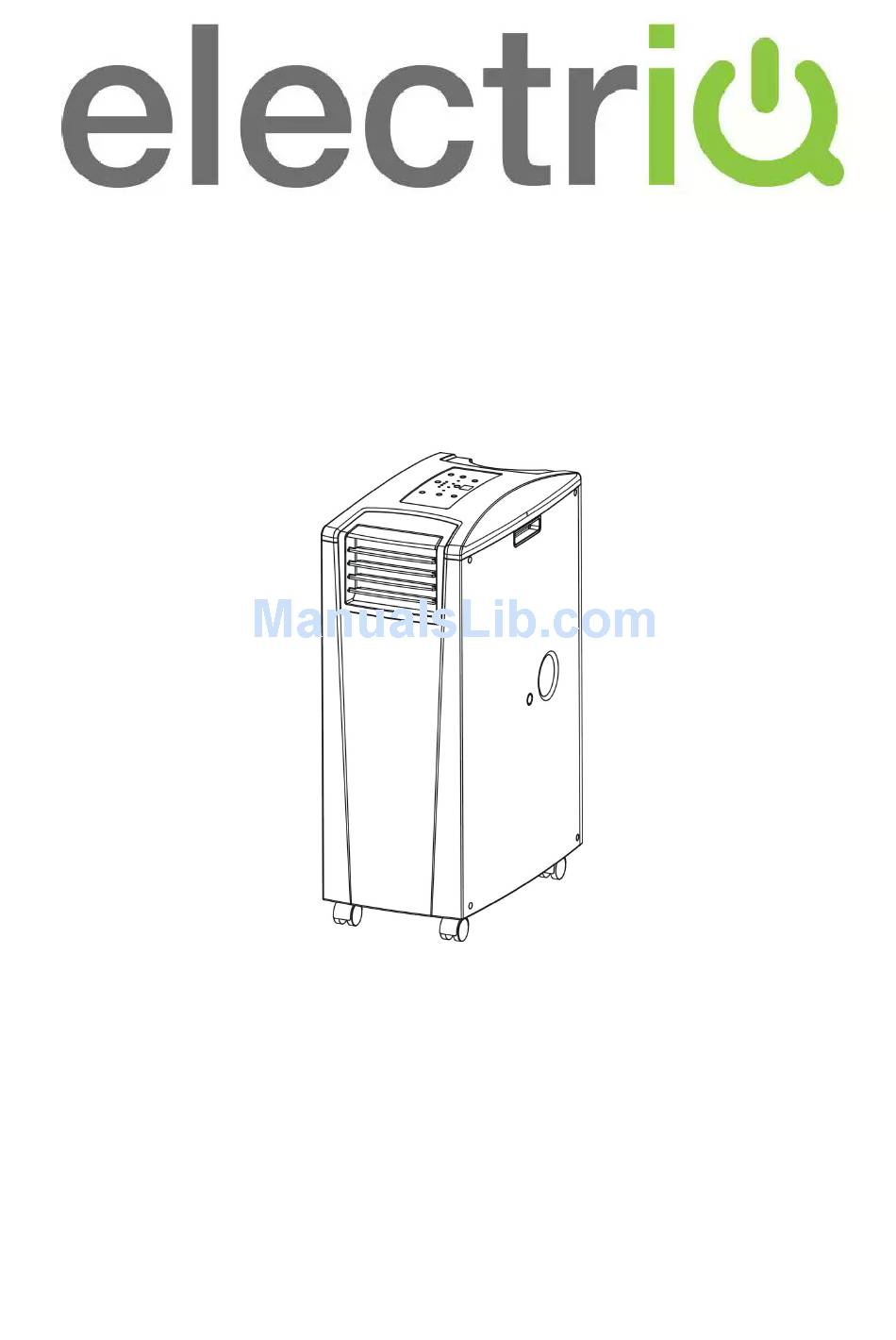

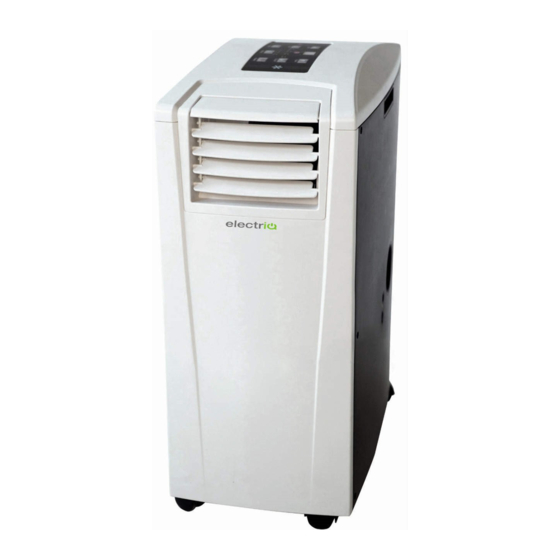

3257$%/( $,5 &21',7,21(5
3257$%/( $,5
3257$%/( $,5
3257$%/( $,5
Please read this user manual before using this innovative Air Conditioner and keep it
Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals
$,5)/(;
$,5)/(;
$,5)/(;
$,5)/(;
&21',7,21(5 :,7+ +($7
&21',7,21(5
&21',7,21(5
USER MANUAL
Thank you for choosing ElectrIQ.
safe for future reference.
:,7+ +($7 3803
:,7+ +($7
:,7+ +($7
Page 1 of 17
3803
3803
3803
Advertisement
Table of Contents
Related Manuals for ElectrIQ AIRFLEX 15
Summary of Contents for ElectrIQ AIRFLEX 15
-
Page 1: User Manual
USER MANUAL Thank you for choosing ElectrIQ. Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals Page 1 of 17... -
Page 2: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ………………………………….. 2 FEATURES AND PARTS LIST …………………………..3 INSTALLATION …………………………………. …………. 4 CONTROL PANEL AND SETTINGS …………………….. 5 OPERATION MODE ,,,,,,,,,,,,,,,,,,,,,,,,……………………….. 5 WATER-DRAINAGE …………………………………………. 6 MAINTENANCE ……………………………………………… 7 TROUBLE SHOOTING …………………………………. …. 8 APPENDIX ……………………………………………………. Page 2 of 17... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit. • This Air Conditioner has an IP24 rating. It is designed mainly indoor use only but will stand outdoor use being protected against light rain and splashing. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. •... -
Page 4: Features And Parts List
FEATURES AND PARTS LIST 1. Features ® Part of ElectrIQ range of Intelligent Air Conditioning products Cooling, Heating and Dehumidifying (70l/day) for all around the year use Powerful and Flexible for both Domestic and commercial use Unique optional comfort kit with wired remote control that will enable operation with the... -
Page 5: Installation
INSTALLATION Warning Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. - Page 6 Assemble hose fish tail adaptor: Prepare both parts of hose adaptor and clip them together. Do not push too hard as this may cause damage. Extend one head of the hose and screw the adaptor to it. Note: to screw it into place should take no less than three rotations Installation of window kit Partially open the window and then fix the window kit to the window horizontally or vertically.
-
Page 7: Control Panel And Settings
CONTROL PANEL AND SETTINGS This portable air conditioner boasts four functions: cooling, heating, dehumidifying. The fan has three speeds: high, medium and low Temperature range settings are: 18--30 The unit will also display operating function, temperature, fault diagnostic and protective functions on the LED screen. - Page 8 resume operation, please remove the rubber cap of the drain hose and empty the tank. The E4 warning will disappear after draining, and the unit can be restarted by pressing the POWER key. (6) SPEED Fan button HIGH MEDIUM LOW and AUTO If "AUTO"...
-
Page 9: Operation Mode
Also the compressor runs under a 3 minute delay protection function. OPERATION MODES ElectrIQ Airflex 15 is the most flexible fully featured air conditioner on the market. Combined with the optional Airflex Comfort Kit that enable using this Air Conditioner in spaces where traditionally there is not enough space to fit an air conditioner: Server Rooms, Small office spaces etc. - Page 10 20-22 . ElectrIQ Airflex 15 is a self-evaporating air conditioner, so under normal use there will be no need to empty the internal tank. However if there is a high amount of humidity in the air or the unit is not vented correctly water will be collected in the internal tank.
- Page 11 Place the unit in the shade if possible and in a cool, protected place in order to increase efficiency and to avoid overheating. At an ambient temperature of over 32° C, the unit will stop cooling protecting the compressor. If this become recurrent we recommend you use the INDOOR COOLING OPERATION.
- Page 12 DEHUMIDIFICATION Airflex 15 is a powerful dehumidifier commercial grade 70 litres / day at 80%RH rating. Humidity is extracted from the air, collected in the water tank and discharged via the condensation drain pipe. We recommend using a large bucket or discharging through the wall.
- Page 13 WATER-DRAINAGE This model is an advanced self-evaporative air conditioner, which reduces the need to empty the water tank in cooling mode. If the unit is vented correctly most of the water is reused to cool the condenser coils and any excess is evaporated. Please do not use continuous drainage if you intend to use the self-evaporating facility for improved cooling effect.
-
Page 14: Water-Drainage
Maintenance Cleaning Please shut off the unit and unplug from the mains before cleaning or performing any maintenance Clean the surface Clean the plastic housing with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 15: Trouble Shooting
End of Season Maintenance 1. Pull out the plug from the drainage hole and empty the internal tank. You can also drain the water by leaning the unit. 2. Then switch the unit to low fan mode in cooling mode at set > than ambient temperature (this way unit will work in fan mode only) 3. -
Page 16: Appendix
Please contact the local council for details of your local household waste recycling centres. TECHNICAL DATA: MODEL ElectrIQ Airflex 15 Capacity Cooling: 4 kW Heating: 4 kW Cooling: 1.7 kW Rated Input (EN 60335) Heating: 1.5 kW... - Page 17 ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Has the unit been standing upright for at least 2 hours? 2.
