Sub-Master Phones - Rath Command Center Installation & Operation Manual

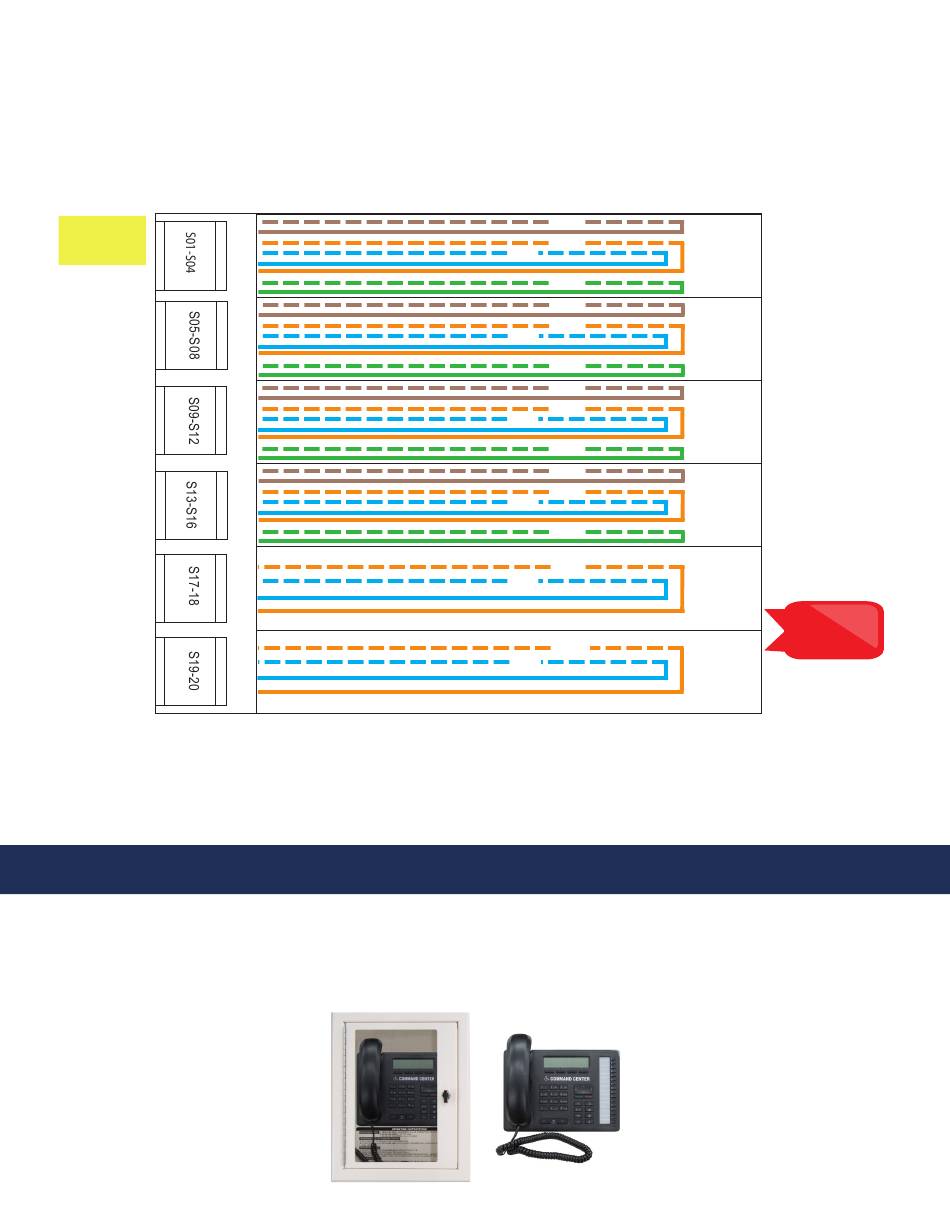

• All cards after Card 1 will always be used for connecting additional Emergency Phones. For Card 2:
• Port 1: (01-04) Connection for 4 Emergency Phones
• Port 2: (05-08) Connection for 4 Emergency Phones
• Port 3: (09-12) Connection for 4 Emergency Phones
• Port 4: (13-16) Connection for 4 Emergency Phones
• Port 5: (17-18) Connection for 2 Emergency Phones
• Port 6: (19-20) Connection for 2 Emergency Phones
Card 2
Example
• Once all RJ45 connections are made, connect twisted, shielded pairs onto the pigtail sides of the wiring harnesses
9. Turn on the 120vac supply (if not already done).
10. Turn on the Distribution Module.

Sub-Master Phones

A RATH® Command Center System comes with a single base station phone. It can accommodate one additional base
station phone which connects to the second DKP port on the first card. If your system includes more than two additional
base station phones, there will be an additional card of just DKP ports. The additional base station wires will wire back
to the Distribution Module the same way as the main Command Center described on page 4.
pg. 6
2020
2018
2017
2019
2024
2022
2021
2023
2028
2026
2025
2027
2032
2030
2029
2031
2034
2033
2036
2035
PHONE 20
PHONE 18
PHONE 17
PHONE 19
PHONE 24
PHONE 22
PHONE 21
PHONE 23
PHONE 28
PHONE 26
PHONE 25
PHONE 27
PHONE 32
PHONE 30
PHONE 29
PHONE 31
PHONE 34
PHONE 33
Note: Do not use
the green and
brown pairs
PHONE 36
PHONE 35
Page 7
