Option

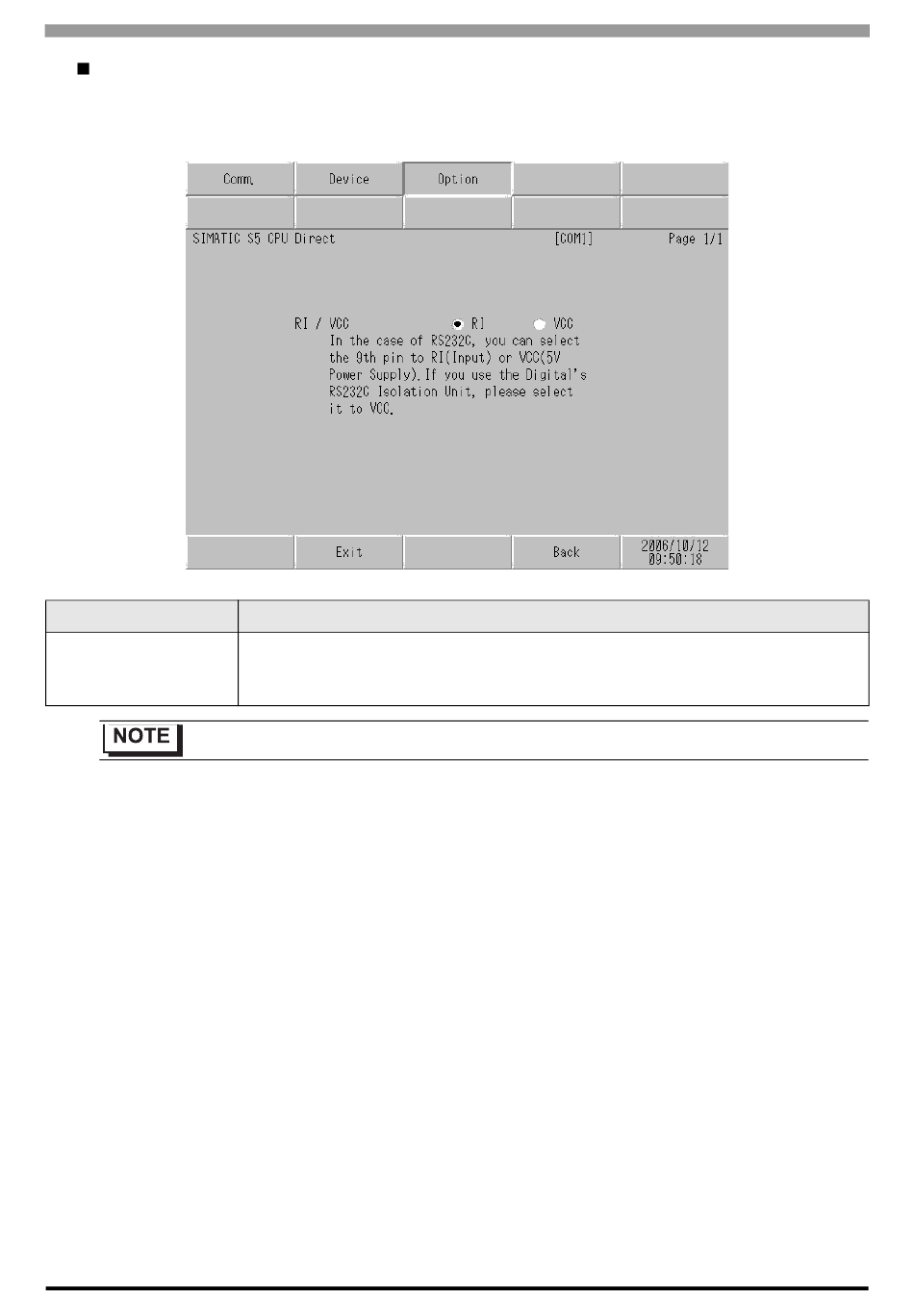

To display the setting screen, touch [Device/PLC Settings] from [Peripheral Equipment Settings].
Touch the External Device you want to set from the displayed list, and touch [Option].
Setup Items
RI/VCC
• GP-4100 series do not have the [Option] setting in the off-line mode.
GP-Pro EX Device/PLC Connection Manual
You can switch RI/VCC of the 9th pin if you select RS232C for SIO type.
It is necessary to change RI/5V by changeover switch of IPC when connect with IPC.
Please refer to the manual of the IPC for more detail.
Setup Description
12
SIMATIC S5 CPU Direct Driver
