4.2
Settings in Off-Line Mode
• Refer to the Maintenance/Troubleshooting manual for information on how to enter off-line mode
or about the operation.
Cf.
• The number of the setup items to be displayed for 1 page in the off-line mode depends on the
Display in use. Please refer to the Reference manual for details.

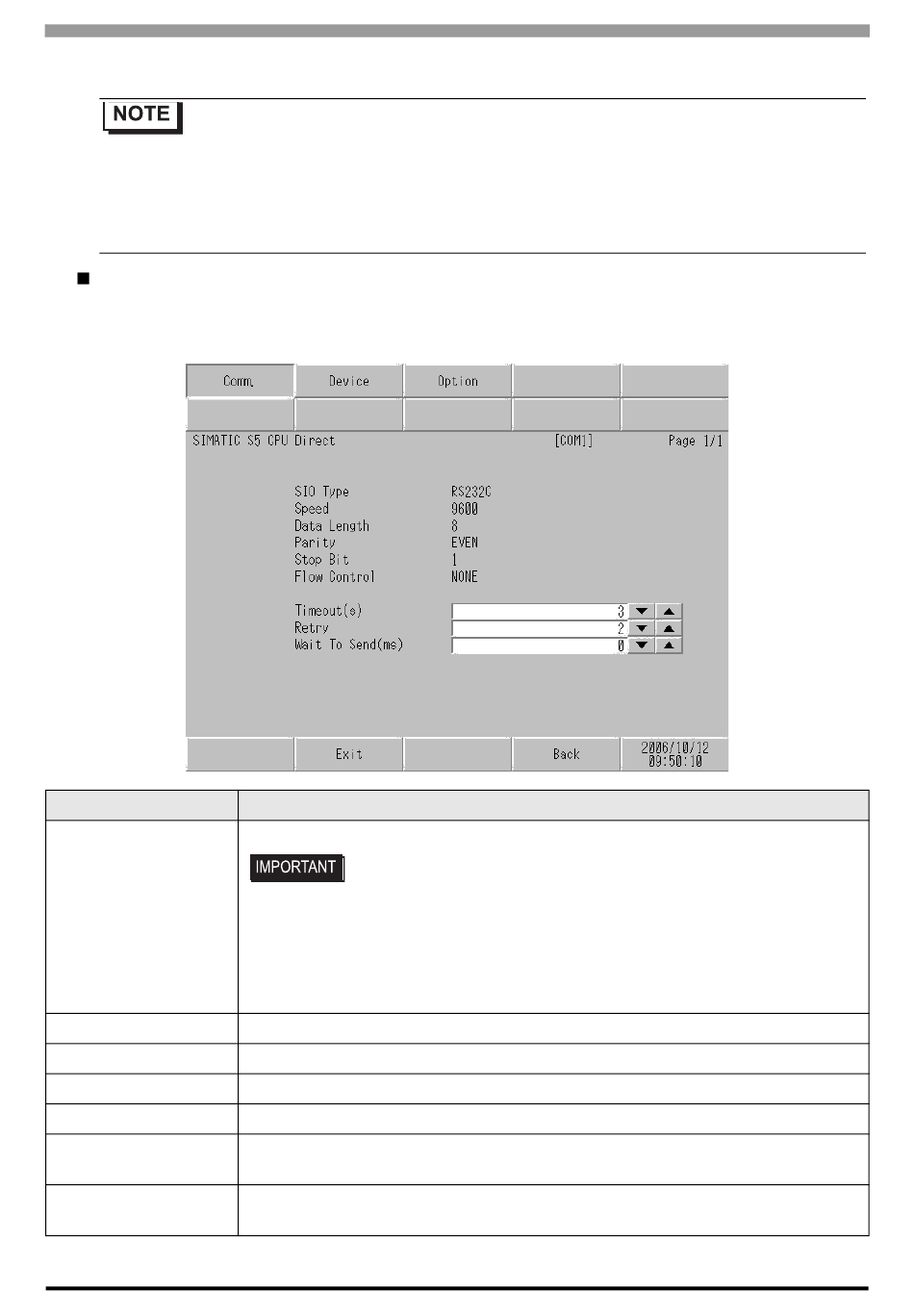

Communication Settings
To display the setting screen, touch [Device/PLC Settings] from [Peripheral Equipment Settings] in the off-line
mode. Touch the External Device you want to set from the displayed list.
Setup Items
SIO Type
Speed
Data Length
Parity
Stop Bit
Flow Control
Timeout
GP-Pro EX Device/PLC Connection Manual
Maintenance/Troubleshooting Manual "2.2 Off-line Mode"
Select the SIO type to communicate with the External Device.
To make the communication settings correctly, confirm the serial interface specifications of
Display unit for [SIO Type].
We cannot guarantee the operation if a communication type that the serial interface does
not support is specified.
For details concerning the serial interface specifications, refer to the manual for Display
unit.
Displays the communication speed between the External Device and the Display.
Displays data length.
Displays how to check parity.
Displays stop bit length.
Displays the communication control method to prevent overflow of transmission and
reception data.
Use an integer from "1 to 127" to enter the time (s) for which the Display waits for the
response from the External Device.
Setup Description
10
SIMATIC S5 CPU Direct Driver
