Selection of External Device

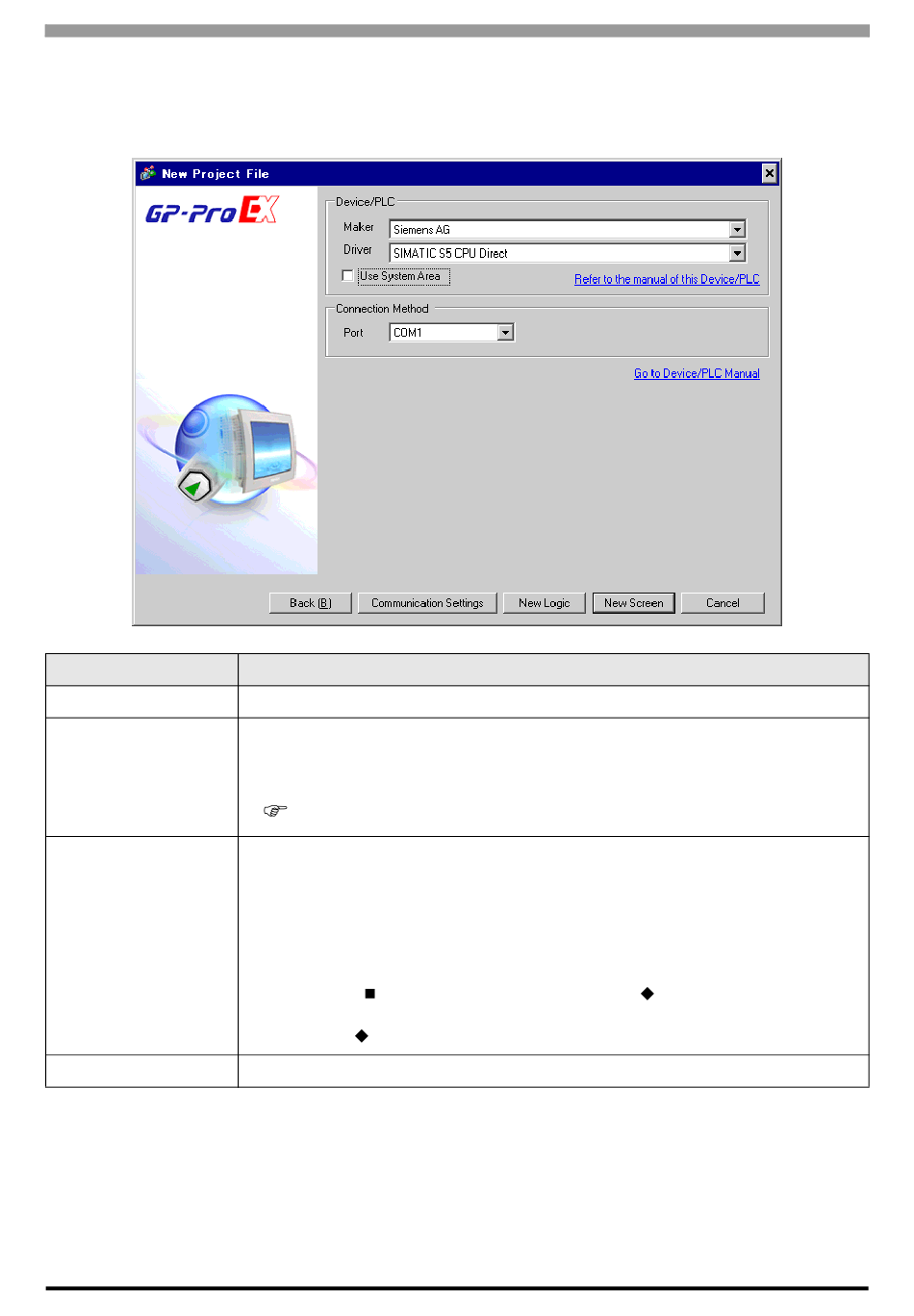

Select the External Device to be connected to the Display.

Setup Items

Maker

Driver

Use System Area

Port

GP-Pro EX Device/PLC Connection Manual

Select the maker of the External Device to be connected. Select "Siemens AG".

Select a model (series) of the External Device to be connected and connection method.

Select "SIMATIC S5 CPU Direct".

Check the External Device which can be connected in "SIMATIC S5 CPU Direct" in

system configuration.

System Configuration (page 3)

Check this option when you synchronize the system data area of the Display and the device

(memory) of the External Device. When synchronized, you can use the ladder program of

the External Device to switch the display or display the window on the Display.

Cf. GP-Pro EX Reference Manual "Appendix 1.4 LS Area (Direct Access

Method)"

This can be also set with GP-Pro EX or in off-line mode of the Display.

Cf. GP-Pro EX Reference Manual " 5.17.6 Setting Guide of [System Setting

Window] [Main Unit Settings] Settings Guide System Area Setting"

Cf. Maintenance/Troubleshooting "2.15.1 Settings common to all Display

models System Area Settings"

Select the Display port to be connected to the External Device.

Setup Description

SIMATIC S5 CPU Direct Driver
