VECTRIX VX-2 SERVICE MANUAL
3. Pull the headlamp off the front sub-frame enough to remove the lamp harness connectors.
4. Remove the lower marker lamp bulb connector.
5. Disconnect Headlamp Assembly connectors and replace with new Headlamp Assembly.
6. Connect the headlamp and lower marker lamp connectors.

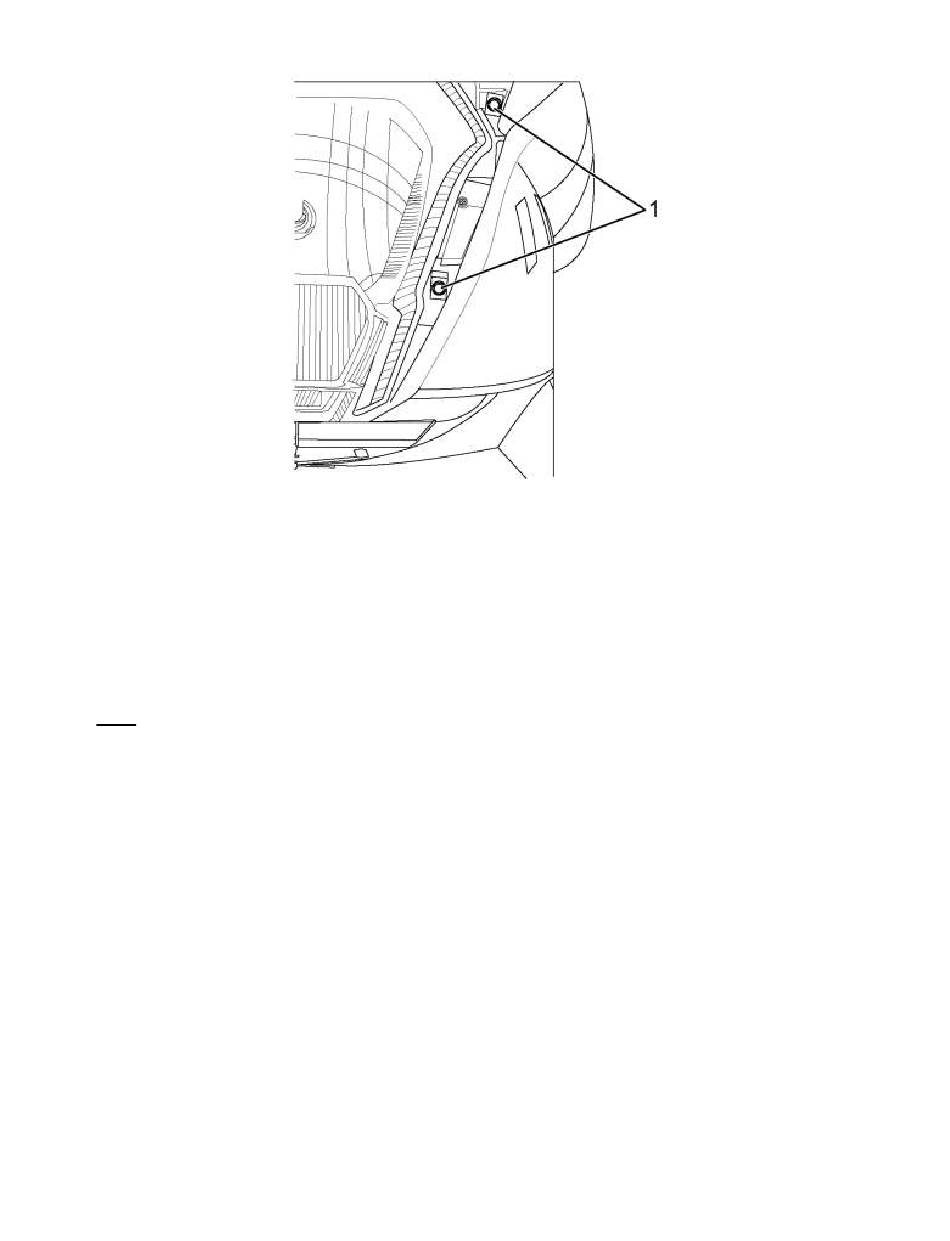

7. Install the headlamp assembly onto the left front fairing and install bolts (1). Tighten Headlamp bolts
to 2 Nm (18 lb in)
Note: Refer to Fastener Notice in General Information.
Version 1.0/July 2011
VECTRIX, LLC
