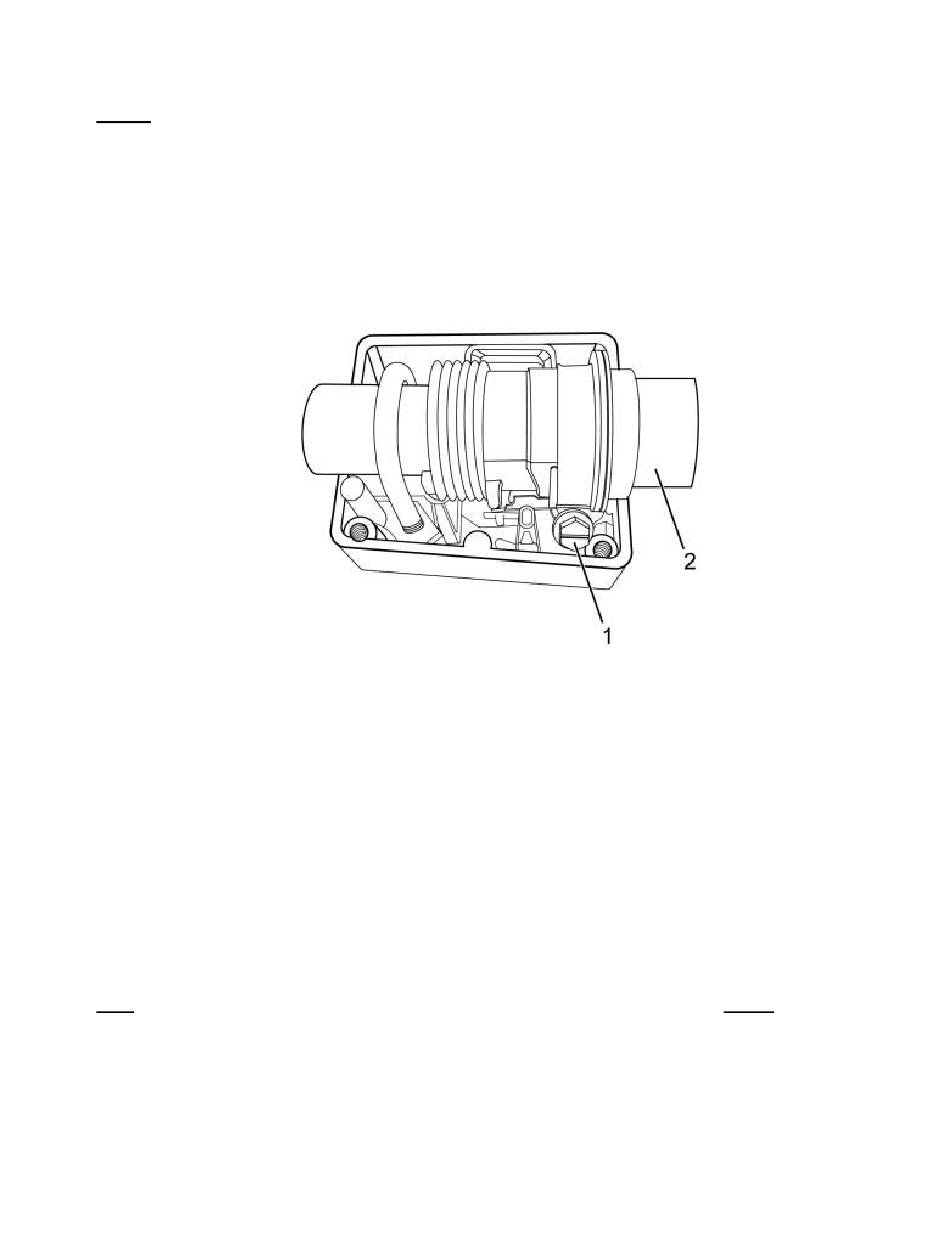

5. Install the throttle sleeve (2) onto the handlebar and into the plastic sleeve.
Notice: Refer to Fastener Notice in General Information.
6. Twist the throttle sleeve into the full Regen position (forward) and tighten the throttle clamp screw (1).
Tighten
Throttle clamp screw 2.5 Nm (22 lb in)
7. Install the kill switch cover, and screws and tighten.
8. Verify smooth operation of the throttle by rotating back and forth and assuring spring return to the
neutral position.
9. Install the upper handlebar cover. Refer to Front Console Cover Replacement.
10. Install the sensor magnet and screw in until lightly seated then back out 1 full turn.
11. Check the adjustment of the Regen Throttle. Refer to Throttle Position Checking Procedure.
12. Install the right handlebar end cap and hand grip. Refer to Handlebar End Cap and Hand Grip
Replacement.
Regen Throttle Position Checking Procedure
S-RW-100000
Without PC
Note: This procedure is to be used when a PC is not available. This adjustment MUST be verified using
the PC method.
1. Place the ignition key in the ON position and the kill switch in the ON (non-run) position.
2. Squeeze the left side brake lever and observe the speedometer needle (1). This reading is the actual
setting of the Regen Throttle.
3. Continue to squeeze the left side and then squeeze the right side brake lever and observe the
