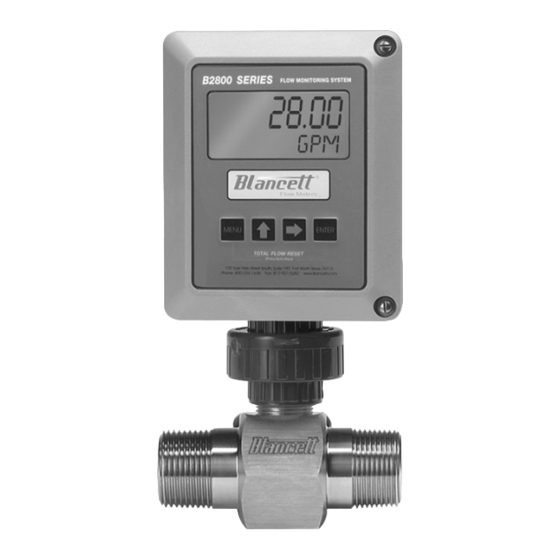

- Page 1 B2800 FLOW MONITOR - For Liquid Meters - PROGRAMMING & INSTALLATION MANUAL Simplified Version 8635 Washington Ave. Racine, Wisconsin 53406 Technical Toll-Free: 877.722.4631 Sales Toll-Free: 800.235.1638 Phone: 817.426.2888 Fax: 817.426.5303 www.blancett.com...
-
Page 2: Table Of Contents
Totalizer………………………………………9 Battery Replacement………………………...9 Additional Input Options……………………………9 Wiring Diagram………….………………………….10 Troubleshooting……………………………………...11 Installation Drawing…………………………………13 Part Numbering Information……………………….14 Statement of Warranty……………………………...15 Notice: Blancett reserves the right to make any changes or improvements to the product described in this manual at any time without notice. -
Page 3: Introduction
This flow monitor is capable of accepting a low-level frequency input for calculating flow rate and total. These calculations can then be displayed in the desired units of measurement. All B2800 flow monitors come pre-calibrated, from the factory, if ordered with a Blancett Flow Meter. -
Page 4: Specifications
SPECIFICATIONS Power Supply Options: Battery Powered: 1 “D” size 1.5 Volt alkaline battery Loop Powered: Optional 4-20 mA loop power Alphanumeric Rate and Total Display: 8 digit, .75” high numeric display 8 character, .38” high alphanumeric display Fixed or toggle modes of operation for flow rate and totalizer display Accuracy: ±0.1% Temperature Drift = 50ppm/°C (Max) -
Page 5: Operating The Monitor
RUN – Normal operating mode PROGRAM – Used to program variables into the display If your monitor was ordered with a Blancett flow meter, the two components ship from the factory, calibrated as a set. If the moni- tor is a replacement, the turbine’s K-factor has changed, or the monitor is being used with some other pulse generating device, programming will be necessary. -
Page 6: Programming
Programming Using Pulse Output Turbine Flow Meters Each turbine flow meter is shipped with either a K-factor value or frequency data. If frequency data is provided, the data must be converted to a K-factor before programming the monitor. K- factor information, when supplied, can usually be found on the neck of the flow meter or stamped on the body. - Page 7 M3 (pulses per cubic meter), etc. Press ENTER to save the K- factor unit and advance to the next parameter. Note: Unless otherwise specified, Blancett turbine flow meters are supplied with K-factors measured in pulses per gallon (PUL/GAL) which will automatically convert to your desired units of measure.
-
Page 8: Password
SELECTION RATE TOTAL GPM/GAL Gallons per Minute Gallons LPM/LIT Liters per Minute Liters M3PH/M3 Cubic Meters per Hour Cubic Meters M3PD/M3 Cubic Meters per Day Cubic Meters BPD/BBL Oil Barrels per Day Oil Barrels Note: The total unit’s output multiplier cannot be modi- fied in the Simplified program level. -
Page 9: Battery Replacement
store the password and take you back to the RST PSWD screen. Note: This password will allow the operator to manually reset totals. RST PSWD – The reset password screen allows the operator to enter any 4 digit code for the manual reset totals function. Note: This reset password code will not allow the opera- tor to enter the programming mode. -
Page 10: Additional Input Options
ADDITIONAL INPUT OPTIONS The B2800 Flow Monitor is capable of receiving Magnetic Pick- up input (small signal sine wave) or a Contact Closure input (pulse). Since most Blancett Turbine Flow Meters utilize a mag- netic pick-up, the B2800 flow monitor is shipped configured for magnetic pick-up input. - Page 11 FIGURE 2 - CIRCUIT BOARD LAYOUT...
-
Page 12: Troubleshooting
TROUBLE SHOOTING GUIDE Trouble Remedy • Check battery voltage. Should be 1.5 VDC. Replace if No LCD Display low or bad. • Check connection from meter pick-up to display input terminals. No Rate or Total • Check turbine meter rotor for debris. Rotor should spin Displayed freely. - Page 13 FIGURE 3 - PROGRAMMING MENU...
- Page 14 Battery powered units will not see these programming choices. B2800 Simplified 4-20mA Programming Instructions FLOW 4mA SETTING – When the loop powered option is ordered, the flow rate that corresponds to 4mA must be set.
- Page 15 The ammeter should track the simulated mA output. If a 4- 20mA test in not necessary, pressing the ENTER key once will escape the testing at any time. Note: If your B2800 flow monitor was ordered with a Blancett Turbine flow meter, the 4-20mA was pro- grammed and factory calibrated.
-
Page 17: Part Numbering Information
Power Option S = Swivel Mount Selectable* H = Hand-Held B = Battery P = Panel Mount L = Loop X = Explosion-Proof Note: *Advanced B2800 monitors only. The default is gallons per minute. COMPONENT PART NUMBER Keypad B260713 Battery B280601... -
Page 18: Statement Of Warranty
Blancett and found to be defective. Repair or replacement is at Blancett’s discretion. A... - Page 19 NOTES...
- Page 20 8635 Washington Avenue • Racine, Wisconsin 53406 Technical Toll-Free: 877.722.4631 • Sales Toll-Free: 800.235.1638 Phone: 817.426.2888 • Fax: 817.426.5303 www.blancett.com Form: B2800 Simplified Manual Revision 03/06...
