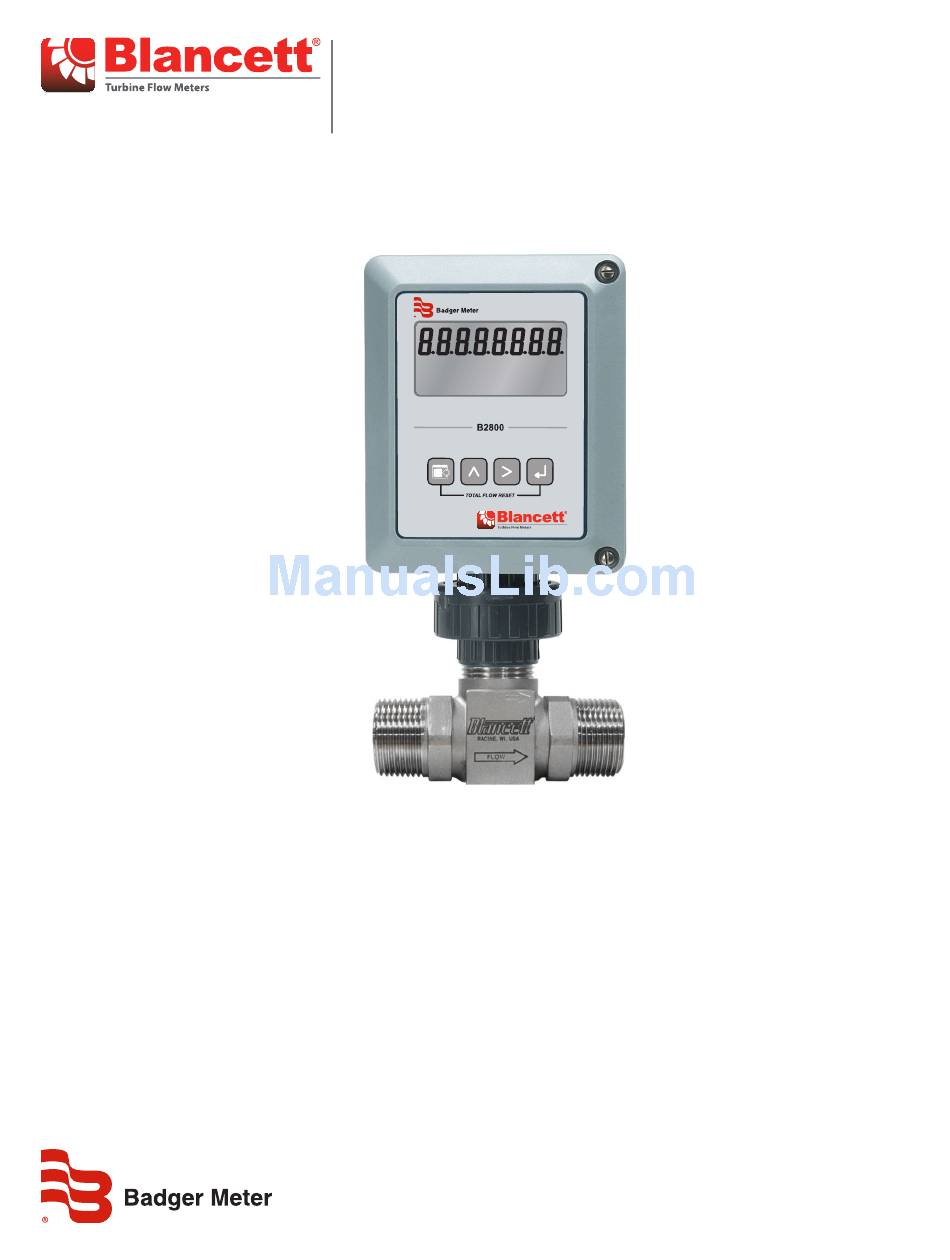

Page 1: User Manual
Flow Monitor B2800 Standard User Manual DSY-PM-00276-EN-02 (May 2015) -
Page 2: Table Of Contents
Flow Monitor, B2800 Standard CONTENTS Scope of This Manual Unpacking and Inspection Safety Terminology and Symbols Considerations Introduction Basic Programming Buttons Modes Programming Program Mode Run Mode Additional Scaling Parameters Flow 4 mA Setting Flow 20 mA Setting 4…20 mA Calibration 4…20 mA Test... -
Page 3: Scope Of This Manual
Scope of This Manual SCOPE OF THIS MANUAL This manual is intended to help you get the B2800 flow monitor up and running quickly MPOOTANT Read this manual carefully before attempting any installation or operation. Keep the manual accessible for future reference. UNPACKING AND INSPECTION Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment... -
Page 4: Introduction

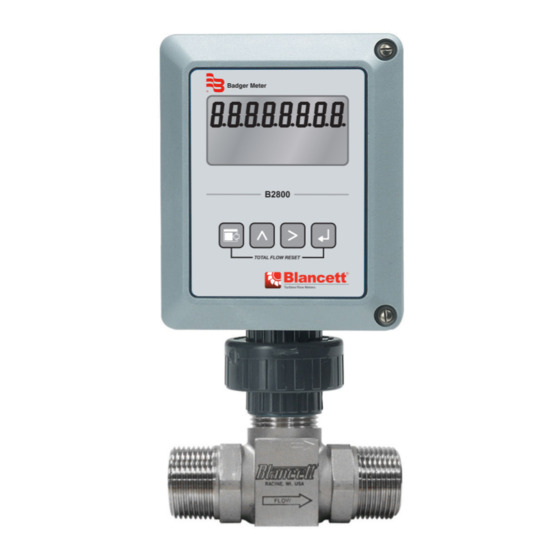

The B2800 flow monitor is a state-of-the-art digital signal processing flow monitor, designed to provide exceptional flexibility at a very affordable price Though designed for use with Blancett flow meters, this display can be used with almost any flow meter producing a low amplitude AC output or contact closure signals... -
Page 5: Basic Programming
Used to program parameters in the display If your monitor was ordered with a Blancett flow meter, the two components ship from the factory calibrated as a set If the monitor is a replacement, the turbine’s K-factor has changed or the monitor is being used with some other pulse generating... -
Page 6: Programming
Press ENTEO to save the K-factor unit and advance to the K FACTOR parameter OTEE: Unless otherwise specified, Blancett turbine flow meters are supplied with K-factors measured in pulses per gallon (PUL/GAL) which will automatically convert to your desired units of measure... -
Page 7: Run Mode
Programming Select the Units of Measure The monitor is programmed with five common rate/total unit options The monitor shows the rate/total unit that the display is currently set for If the current selection is correct, press ENTEO once to advance to the DISPLAY FUNCTION parameter To change the unit, press UP or OIGHT to scroll to the correct rate unit Press ENTEO to save and advance to the DISPLAY FUNCTION parameter Selection... -
Page 8: Additional Scaling Parameters
1 mA The ammeter should track the simulated mA output If a 4…20 mA test in not necessary, press ENTEO once to escape the testing at any time OTEE: If you ordered the B2800 flow monitor with a Blancett turbine flow meter, the 4…20 mA was programmed and factory calibrated IO/SETUP... -
Page 9: Additional Input Options
The B2800 flow monitor is capable of receiving magnetic pickup input (small signal sine wave) or a contact closure input (pulse) Since most Blancett turbine flow meters use a magnetic pickup, the B2800 flow monitor is shipped configured for magnetic pickup input To change to a contact closure input, remove JP2 from the top two pins and jumper them to the... -
Page 10: Default K-Factor Values
Default K-factor Values DEFAULT K-FACTOO VALUES Meter Size Default K-factor Lower Limit Upper Limit 3⁄8 in (9 53 mm) 20,000 16,000 24,000 1/2 in (12 7 mm) 13,000 10,400 15,600 3/4 in (19 05 mm) 2750 2200 3300 7/8 in (22 23 mm) 2686 2148 3223... -
Page 11: Installation Drawing
Installation Drawing INSTALLATION DOAWING May 2015 DSY-PM-00276-EN-02 Page 11... -
Page 12: Troubleshooting Guide
Troubleshooting Guide TOOUBLESHOOTING GUIDE Issue Oemedy No LCD display • Check battery voltage Should be 1 5V DC Replace if low or bad • Check connection from meter pickup to display input terminals No rate or total • Check turbine meter rotor for debris Rotor should spin freely displayed •... -
Page 13: Specifications
Specifications SPECIFICATIONS Power Supply Options Battery Powered One D size, 1 5V alkaline battery Loop Powered Optional 4…20 mA loop power Alphanumeric Oate and Total Display Eight digit, 0 75 inch high numeric display Eight character, 0 38 inch high alphanumeric display Fixed or toggle modes of operation for flow rate and totalizer display Accuracy ±0 1%... -
Page 14: Replacement Parts
Replacement Parts OEPLACEMENT PAOTS Component Part Number Keypad B260713 Battery B280601 Battery Tie Wrap B228036 Pickup Cable B222-121 Desiccant Bag B260630 PVC Union B220016 PVC Reducer Bushing B220056 Rubber Washer B228207 Steel Lock Washer B220018 PCB Shield (battery units) B280603 Desiccant Shield B280680 Cord Grip... -
Page 15: Remote Mount
Mounting Options and Dimensions Oemote Mount .25 in. dia (6.4 mm) (4 HOLES) I dia 7 00 in 2 40 in 2 25 in 7 00 in 5 75 in 4 38 in 3 45 in 1 50 in 0 875 in (177 8 mm) (61 0 mm) (57 2 mm) - Page 16 Control. Manage. Optimize. BLANCETT is a registered trademark of Badger Meter, Inc Other trademarks appearing in this document are the property of their respective entities Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists ©...
