Blancett 1100 Series User Manual

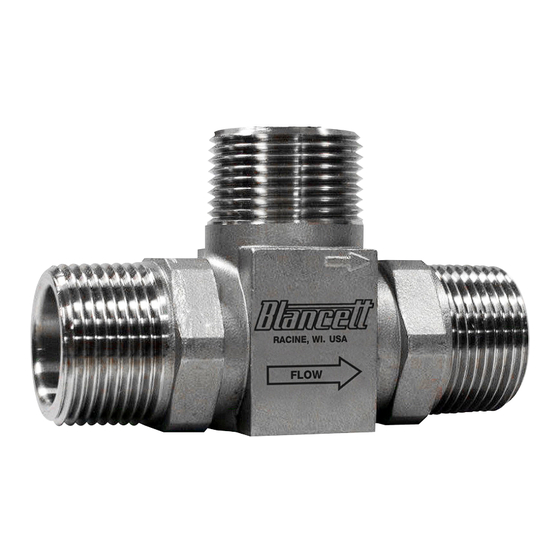

Turbine flow meter
Hide thumbs Also See for 1100 Series:

Advertisement

Table of Contents

See also: Instruction and Installation Manual
Turbine Flow Meter
1100 Series Turbine Meter
User Manual
TUR-UM-00014-EN-04 (October 2018)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Blancett 1100 Series

Summary of Contents for Blancett 1100 Series

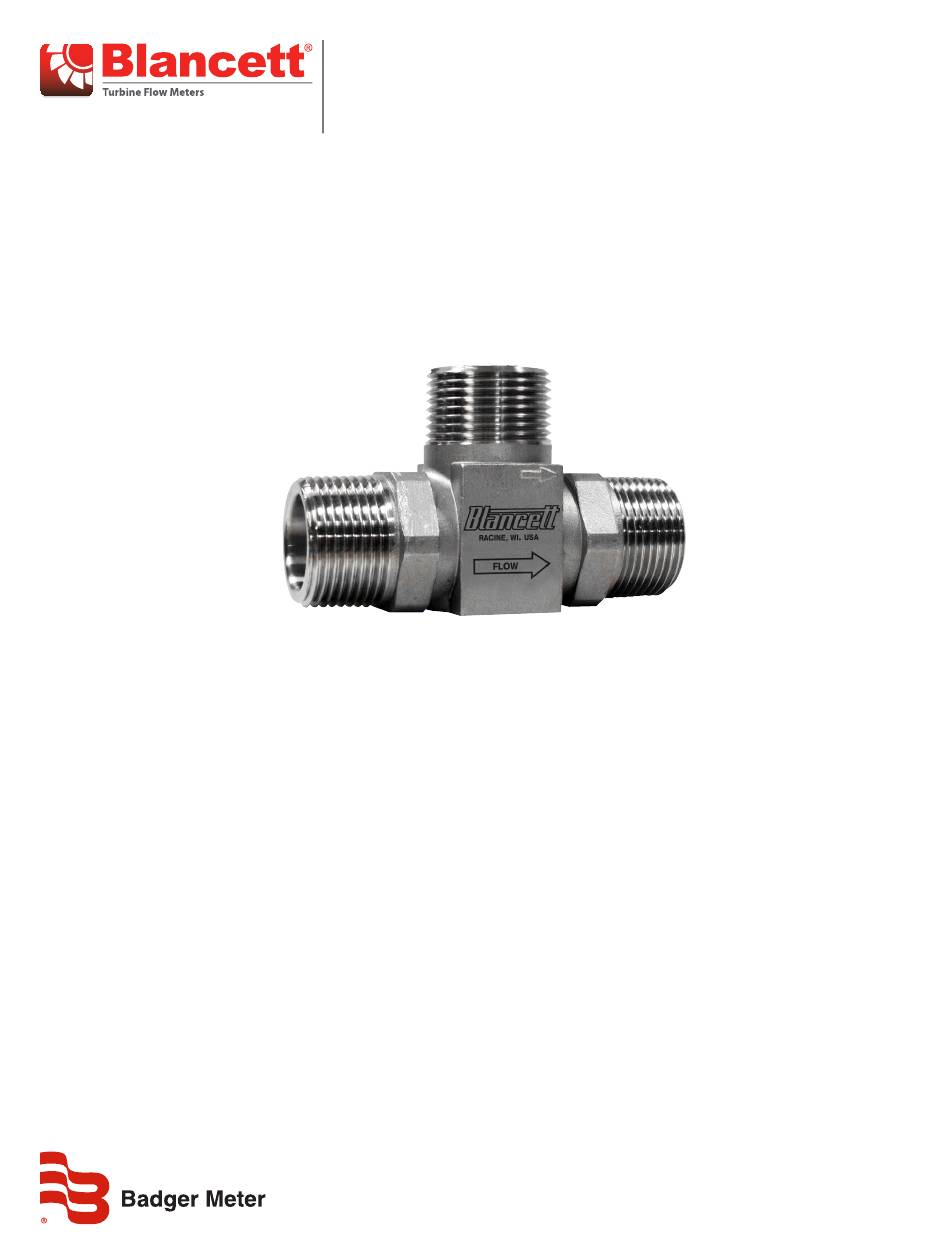

  • Page 1 Turbine Flow Meter 1100 Series Turbine Meter User Manual TUR-UM-00014-EN-04 (October 2018)

  • Page 2: Table Of Contents

    Turbine Flow Meters, 1100 Series CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Operating Principle .

  • Page 3: Introduction

    Introduction INTRODUCTION Designed to withstand the demands of the most rigorous flow measurement applications the Model 1100 turbine flow meter is reliable, rugged and cost effective . Originally developed for the secondary oil recovery market, the Model 1100 is an ideal meter for liquid flow measurement on or off the oil field .

  • Page 4: Specifications

    Specifications SPECIFICATIONS Body 316 stainless steel Rotor CD4MCU stainless steel Materials of Construction Bearings — Rotor Shaft Tungsten carbide Rotor Support 316 stainless steel Operating Temperature –150…350° F (–101…177° C) Pressure Rating* 800 or 5000 psi End Connections NPT, BSP, Victaulic®, flange, hose barbed Turndown Ratio 10:1 ±1% of reading for 7/8 in .
  • Page 5 Installation All Badger Meter Model 1100 turbine meters use stainless steel and tungsten carbide construction materials . Make sure the operating fluid is compatible with these materials . Incompatible fluids can cause deterioration of internal components and cause a reduction in meter accuracy . The measured liquid should be free of any large particles that may inhibit rotation of the turbine blades .
  • Page 6 Installation Electronic Flow Monitor Isolation and Isolation Valve Flow Rate Control Valve 10 Pipe Turbine 5 Pipe Diameters Flow Meter Diameters Bypass Valve Figure 3: Meter installation with a bypass line Electronic Flow Monitor Control Valve 10 Pipe Turbine 5 Pipe Diameters Flow Meter Diameters...

  • Page 7: Pressure Drop In Water

    Pressure drop in water PRESSURE DROP IN WATER Pressure Drop vs Flow Rate Pressure Drop vs Flow Rate 3/8” 3/4” 1” 2” 4” 8” 1/2” 7/8” 1-1/2” 3” 6” 10” 1/2” 7/8” 1-1/2” 3” 6” 10” 3/8” 2” 4” 3/4” 1”...

  • Page 8: Turbine Replacement

    Turbine replacement TURBINE REPLACEMENT The Model 1100 turbine flow meter uses wear resistant moving parts to provide trouble-free operation and long service life . The Designed for easy field service of a damaged flow meter Model 1100 repair kits replace only the internal parts, rather than replacing the entire flow meter .

  • Page 9: Disassembly

    Turbine replacement Disassembly 1 . Refer to Figure Figure 8 Figure 9 for relative positions of repair kit components . 2 . Remove the magnetic pickup from the meter body to avoid damage during repair . 3 . Remove the retaining ring from one end of the meter . 4 .

  • Page 10: New Turbine Kit Installation

    Turbine replacement New Turbine Kit Installation MPORTANT Before reassembly, note that an arrow is cast or engraved on each component. The arrow indicates the primary flow direction. When reassembled, the arrowheads must point in the direction of the fluid flow. The arrows must also be oriented in the up position on both rotor supports.

  • Page 11: Part Number Information

    Part number information PART NUMBER INFORMATION Flow Ranges Approx. Meter Part End Connec- Max. Strainer End to End Bore Size K-factor Weight Number tions Mesh Length gpm (lpm) m3/d Pulse/Gal (lb) 3/8 in . 0 .6…3 3 .00 in . B110-375-½...

  • Page 12: Troubleshooting Guide

    Control. Manage. Optimize. Blancett is a registered trademarks of Badger Meter, Inc . Other trademarks appearing in this document are the property of their respective entities . Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists .
