1. Set Jumper (JP2) for Pulse Input.
2. Connect B, D, and the – side of the DC supply together at display terminal 6.
3. Connect A to the + side of the DC supply.
4. Connect a 10K Ohm resistor between A and C.
5. Connect C to terminal 5 on the display.
N
NOEE:
Battery powered display depicted. If the display is loop powered, a separate loop
supply is required to power the display.
DSY-UM-02267-EN-01 (January 2017)
B2800 Flow Monitor
B170112-to-B2800 Connections
Input
JP2
Pulse
Inuput
1
2
3
4
5
6
-
-
-
+
+
+
Freq. In
Pulse Out
4-20 mA
A - + 24V DC
B - COMMON
C - OPEN COLLECTOR
D - OPEN EMITTER
E - NOT USED
Top of Magnetic Pickup
Mag
TB1
B
C
E
D
C
A
B
A - Red/White
B - Red
C - Green
D - Red/Yellow
E - Red/Black
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blancett B2800
Summary of Contents for Blancett B2800
-
Page 1: User Manual

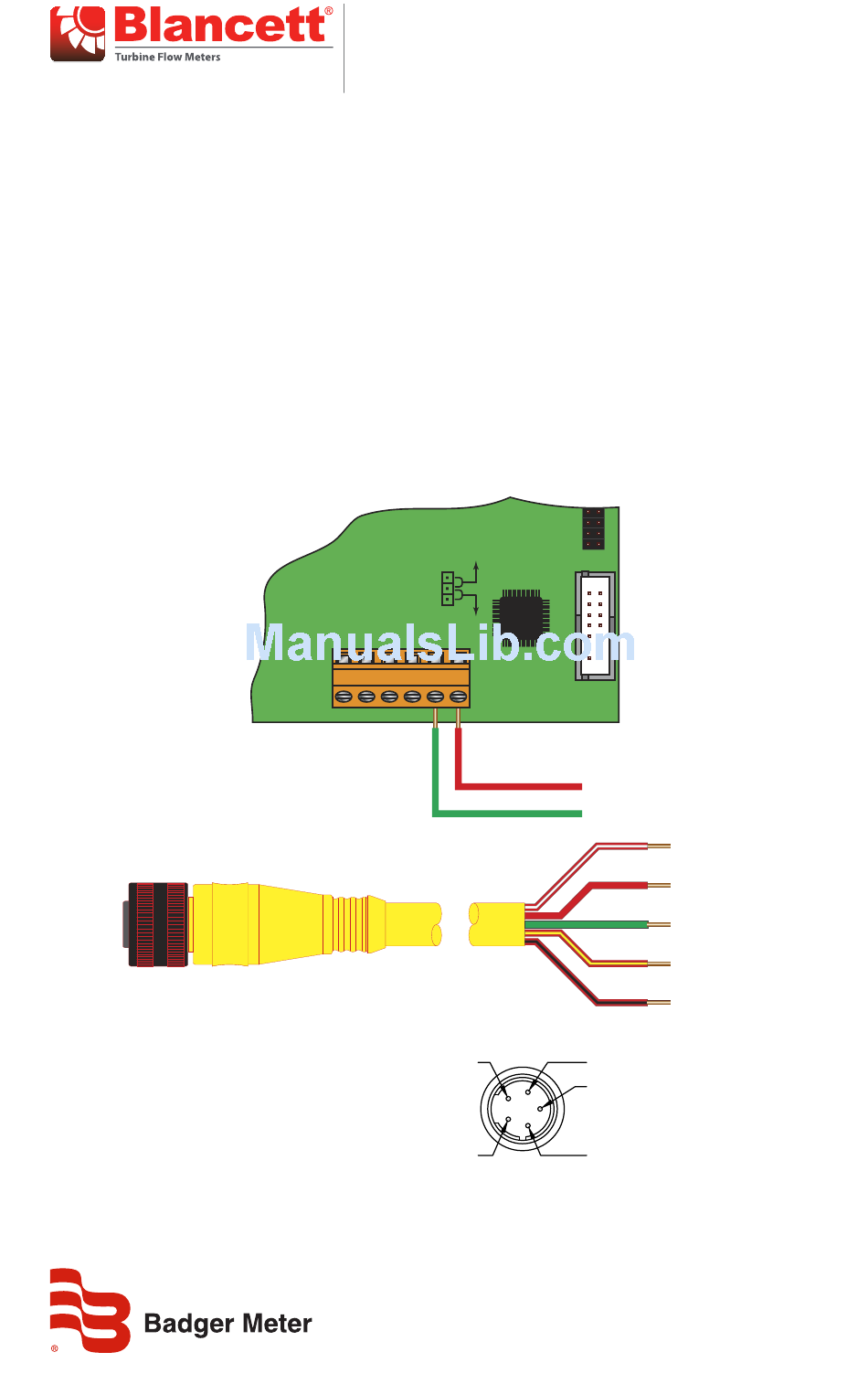

B2800 Flow Monitor B170112-to-B2800 Connections 1. Set Jumper (JP2) for Pulse Input. 2. Connect B, D, and the – side of the DC supply together at display terminal 6. 3. Connect A to the + side of the DC supply. - Page 2 Control. Manage. Optimize. BLANCETT is a registered trademark of Badger Meter, In. Other trademarks appearing in this document are the property of their respective entities. Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists.
