Flow Monitor
B2800 Advanced

User Manual

DSY-PM-00286-EN-03 (October 2015)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B2800 and is the answer not in the manual?

Questions and answers

Related Manuals for Blancett B2800

Summary of Contents for Blancett B2800

  • Page 1: User Manual

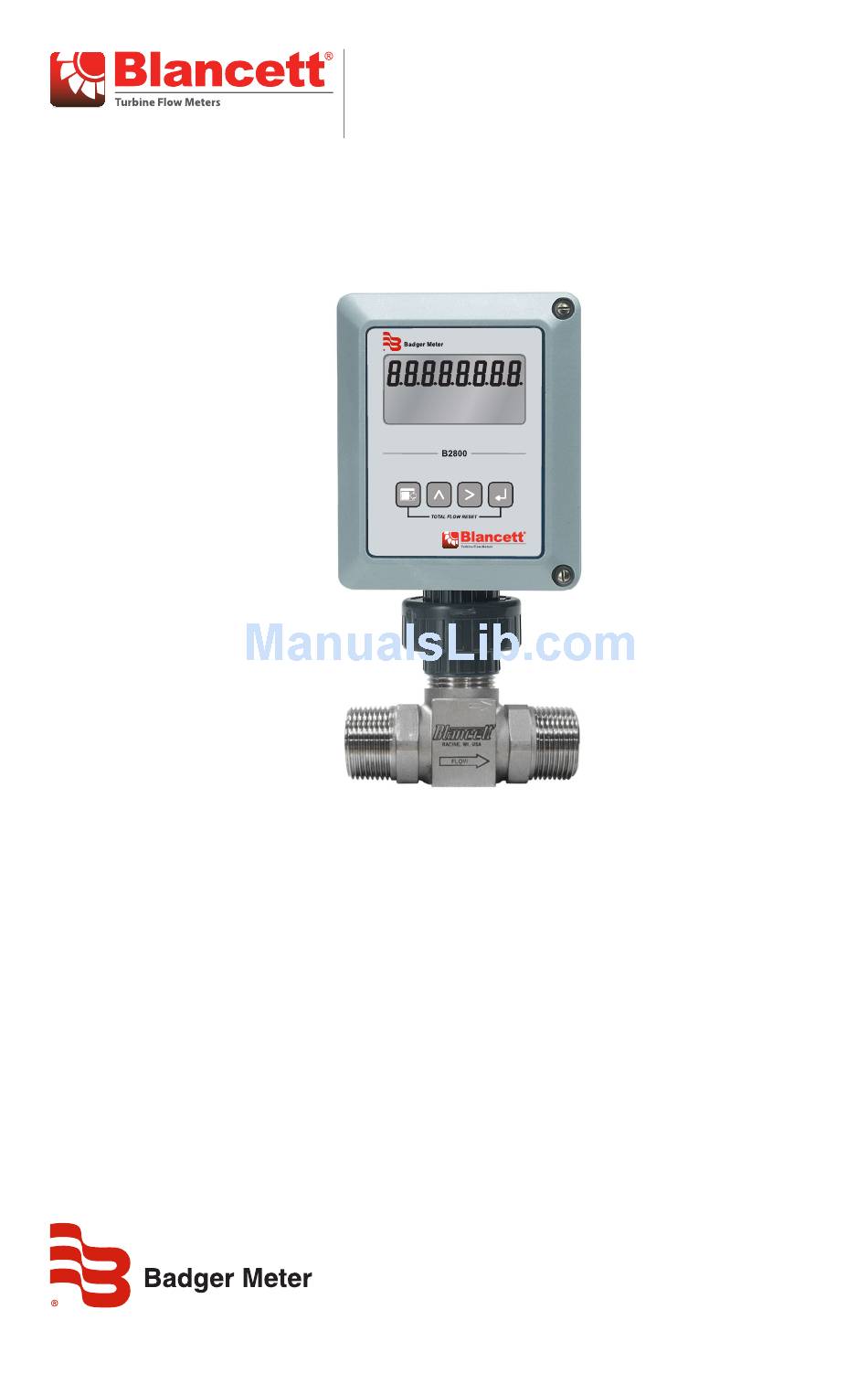

    Flow Monitor B2800 Advanced User Manual DSY-PM-00286-EN-03 (October 2015)
  • Page 2 Flow Monitor, B2800 Advanced Page ii DSY-PM-00286-EN-03 October 2015...

  • Page 3: Table Of Contents

    User Manual CONTENTS Scope of This Manual � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5 Unpacking and Inspection �...
  • Page 4 Flow Monitor, B2800 Advanced Installation Drawing� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21 Battery Powered �...

  • Page 5: Scope Of This Manual

    Scope of This Manual SCOPE OF THIS MANUAL This manual is intended to help you get the B2800 flow monitor up and running quickly� MPOOTANT Read this manual carefully before attempting any installation or operation. Keep the manual accessible for future reference.

  • Page 6: Introduction

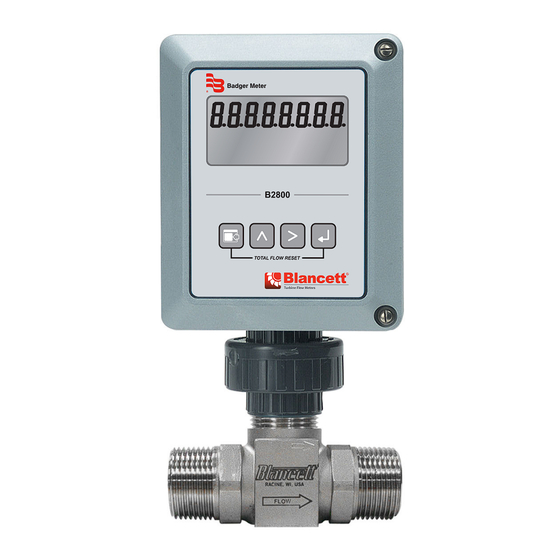

    The B2800 flow monitor is a state-of-the-art digital signal processing flow monitor designed to provide exceptional flexibility at a very affordable price� Though designed for use with Blancett flow meters, this display can be used with almost any flow meter producing a low amplitude AC output or contact closure signal�...

  • Page 7: Operating The Monitor

    Used to program parameters in the display POOGOAM If your monitor was ordered with a Blancett flow meter, the two components ship from the factory calibrated as a set� If the monitor is a replacement, the turbine’s K-factor has changed or the monitor is being used with some other pulse generating device, the monitor must be programmed�...

  • Page 8: Programming

    Programming POOGOAMMING Each turbine flow meter is shipped with either a K-factor value or frequency data� If frequency data is provided, the data must be converted to a K-factor before programming the monitor� K-factor information, when supplied, can usually be found on the neck of the flow meter or stamped on the flow meter body�...
  • Page 9 Programming Select Meter Size At the METER prompt, press ENTEO� The current meter size flashes� If the current setting is correct, press ENTEO to advance to the next parameter� To change the current setting, press UP or OIGHT to scroll to the bore size of your meter� Press ENTEO to save and advance to the DISPLAY parameter�...
  • Page 10 Programming Select Total's Display Multiplier This parameter displays the accumulated flow total in multiples of 10� For example, if the optimum totalization unit is 1000 gallons, the unit total display increments by one digit for every 1000 gallons monitored� In RUN mode, at 1000 gallons the total monitor reads 1, at 3000 gallons, the total display reads 3�...
  • Page 11 Programming Meter Type At the METERTYP prompt, press ENTEO� The current meter type displays� If the current selection is correct, press ENTEO to advance to the next parameter� To change the type, press UP or OIGHT� Press ENTEO to save and advance to the next parameter� If GAS is selected, the operating pressure (psig) and operating temperature (°...
  • Page 12 Programming Linearization Linearization enhances the accuracy of the display� The linearization accepts a maximum of ten points and requires additional calibration data from the meter being used with the monitor� Typically, calibration information can be obtained in three, five and ten points from the flow meter’s manufacturer�...

  • Page 13: Return To Run Mode

    Programming Password The password setting restricts access to PROGRAM mode� Initially, the password is set to all zeros and any user can modify the paramter settings� To change the password, press ENTEO at the PASSWORD prompt� The first digit flashes� Press UP to increment the digit and OIGHT to advance to the next digit�...

  • Page 14: Additonal Scaling Parameters

    Additonal Scaling Parameters ADDITONAL SCALING PAOAMETEOS Figure 3: 4…20 mA programming menu OTEE: The programming instructions in this section are only available for loop powered units� Battery powered units do not include these programming parameters� Flow 4 mA Setting Zero is the default flow rate at the 4 mA setting� If the current selection is correct, press ENTEO to advance to the Flow 20 mA parameter�...

  • Page 15: Ma Calibration

    1 mA� The ammeter should track the simulated mA output� If a 4…20 mA test in not necessary, press ENTEO once to escape the testing at any time� OTEE: If you ordered the B2800 flow monitor with a Blancett turbine flow meter, the 4…20 mA was programmed and factory calibrated� Input...

  • Page 16: Additional Input Options

    Additional Input Options ADDITIONAL INPUT OPTIONS The B2800 flow monitor is capable of receiving magnetic pickup input (small signal sine wave) or a contact closure input (pulse)� Since most Blancett turbine flow meters use a magnetic pickup, the B2800 flow monitor is shipped configured for magnetic pickup input�...

  • Page 17: Additional Scaling Information

    Additional Scaling Information ADDITIONAL SCALING INFOOMATION This information is supplied as a general introduction to the basic concepts used to scale rate displays� The applicability of the information is dependent on the type and capabilities of the specific display/monitor used� Flow meters producing an electronic signal are normally supplied in one of two output formats�...

  • Page 18: Pulse Output Signals For Non-Linear Processes

    Additional Scaling Information Given that the meter has a maximum flow rate of 25 gpm, the maximum frequency would then be: 2000 × 25 (gal) Frequency = = 833.333 Hz at 25 gpm A programmable display requires at least two points� The first point is the zero or minimum flow and the second is normally the maximum flow rate�...

  • Page 19: Default K-Factor Values

    Default K-factor Values DEFAULT K-FACTOO VALUES Meter Size Default K-factor Lower Limit Upper Limit 3/8 in� (9�53 mm) 20,000 16,000 24,000 1/2 in� (12�7 mm) 13,000 10,400 15,600 3/4 in� (19�05 mm) 2750 2200 3300 7/8 in� (22�23 mm) 2686 2148 3223 1 in�...

  • Page 20: Installation Drawing

    Installation Drawing INSTALLATION DOAWING Battery Powered Page 20 DSY-PM-00286-EN-03 October 2015...

  • Page 21: Loop Powered

    Installation Drawing Loop Powered October 2015 DSY-PM-00286-EN-03 Page 21...

  • Page 22: Troubleshooting Guide

    Troubleshooting Guide TOOUBLESHOOTING GUIDE Issue Oemedy No LCD display • Check battery voltage� Should be 1�5V DC� Replace if low or bad� • Check connection from meter pickup to display input terminals� No rate or total • Check turbine meter rotor for debris� Rotor should spin freely� displayed •...

  • Page 23: Specifications

    Specifications SPECIFICATIONS Battery Powered One D size, 1�5V alkaline battery Power Supply Options Loop Powered Optional 4…20 mA loop power Battery Powered Less than 1 milliwatt Power Consumption Loop Powered 25 mA (maximum) Eight digit, 0�75 in� (19�05 mm) high numeric display Alphanumeric Oate Eight character, 0�38 in�...

  • Page 24: Replacement Parts

    Replacement Parts OEPLACEMENT PAOTS Component Part Number Keypad B260713 Battery B280601 Battery Tie Wrap B228036 Pickup Cable B222-121 Desiccant Bag B260630 PVC Union B220016 PVC Reducer Bushing B220056 Rubber Washer B228207 Steel Lock Washer B220018 PCB Shield (battery units) B280603 Desiccant Shield B280680 Cord Grip...

  • Page 25: Mounting Options And Dimensions

    Mounting Options and Dimensions MOUNTING OPTIONS AND DIMENSIONS Meter Mount G dia 9�25 in� 7�00 in� 5�75 in� 4�00 in� 3�45 in� 1�50 in� 0�875 in� (235�0 mm) (177�8 mm) (146�0 mm) (101�6 mm) (87�6 mm) (38�1 mm) (22�2 mm) Oemote Mount .25 in.

  • Page 26: Swivel Mount

    Mounting Options and Dimensions Swivel Mount G dia 12�25 in� 7�00 in� 5�75 in� 4�00 in� 3�45 in� 1�50 in� 0�875 in� (311�2 mm) (177�8 mm) (146�0 mm) (101�6 mm) (87�6 mm) (38�1 mm) (22�2 mm) Page 26 DSY-PM-00286-EN-03 October 2015...
  • Page 27 User Manual INTENTIONAL BLANK PAGE October 2015 DSY-PM-00286-EN-03 Page 27...
  • Page 28 Control. Manage. Optimize. Blancett is a registered trademark of Badger Meter� All other trademarks appearing in this document are the property of their respective entities� Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists�...
