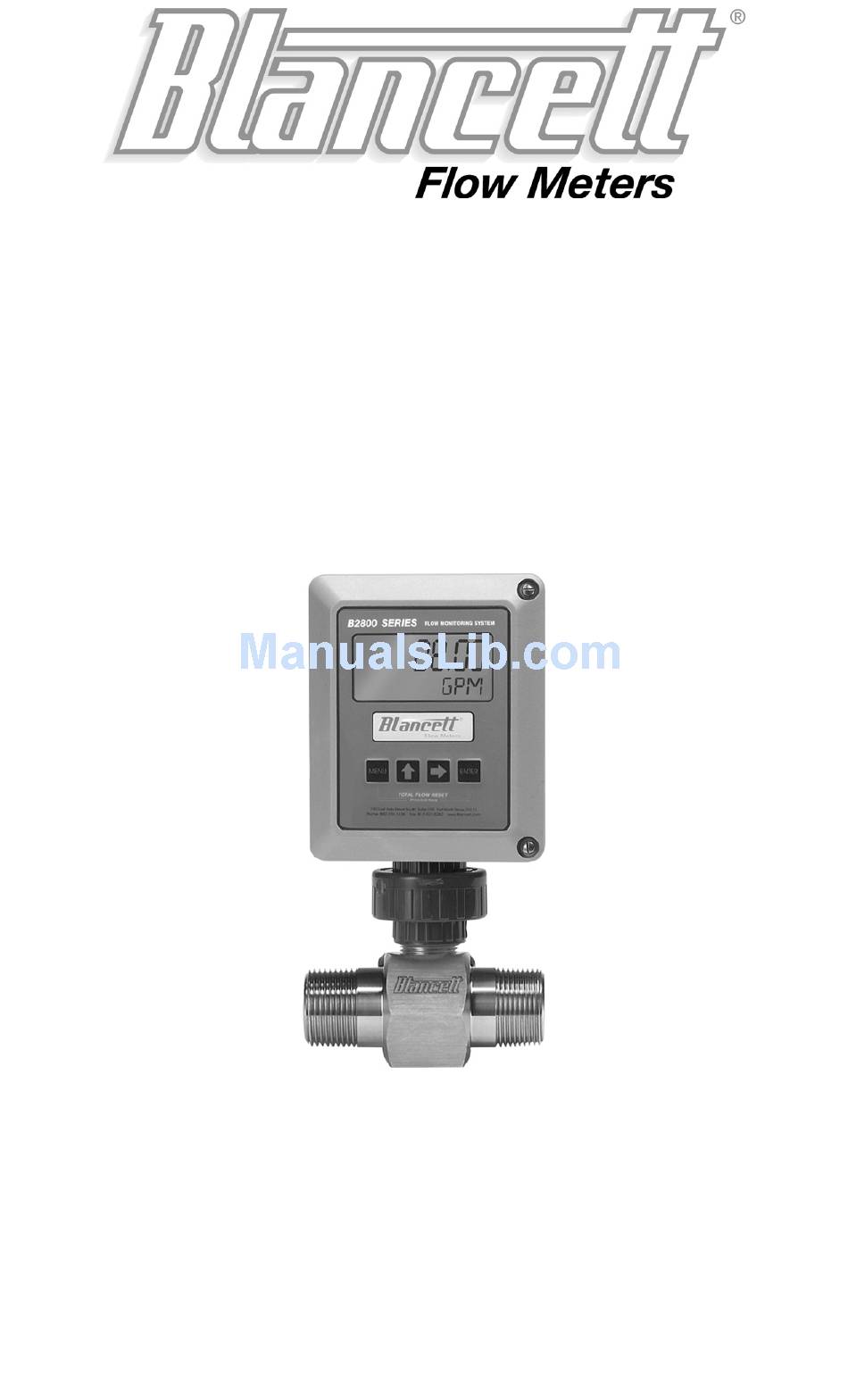

- Page 1 B2800 FLOW MONITOR - For Gas or Liquid Meters - PROGRAMMING AND INSTALLATION MANUAL Advanced - Version 1.05 8635 Washington Ave. Racine, Wisconsin 53406 Technical Toll-Free: 877.722.4631 Sales Toll-Free: 800.235.1638 Phone: 817.426.2888 Fax: 817.426.5303 www.blancett.com...
-
Page 2: Table Of Contents
Wiring Diagram………….………………………….17 Mounting Options…………………………………...19 Troubleshooting……………………………………...21 General Notes on Scaling……………………………22 Part Numbering Information……………………….25 Installation Drawing…………………………………26 Statement of Warranty……………………………...27 Notice: Blancett reserves the right to make any changes or improvements to the product described in this manual at any time without notice. -
Page 3: Introduction
This flow monitor is capable of accepting a low-level frequency input for calculating flow rate and total. These calculations can then be displayed in the desired units of measurement. All B2800 flow monitors come pre-calibrated, from the factory, if ordered with a Blancett Flow Meter. -
Page 4: Features
FEATURES • Displays Rate and/or Total • Large 0.75 Inch, 8 Digit Display for Easy Viewing • Simple, Front Panel Programming • Various Mounting Styles Available • 10 Point Linearization Capability • Gas Measurement Software Included • NEMA 4X Suitable for Outdoor Mounting •... -
Page 5: Specifications
SPECIFICATIONS Power Supply Options: Battery Powered: 1 “D” size 1.5 Volt alkaline battery Loop Powered: 4-20 mA loop power Power Consumption: Battery Powered: Less than 1 milliwatt Loop Powered: 25 mA (Maximum) Alphanumeric Rate and Total Display: 8 digit, .75” high numeric display 8 character, .38”... -
Page 6: Operating The Monitor
ENTER – Used to enter sub-menus, save programming infor- mation and in the reset process If your monitor was ordered with a Blancett flow meter, the two components ship from the factory, calibrated as a set. If the moni- tor is a replacement, the turbine’s K-factor has changed, or the monitor is being used with some other pulse generating device, programming will be necessary. - Page 7 tion, when supplied, can usually be found on the neck of the flow meter or stamped on the body. The K-factor represents the num- ber of pulses per unit of volume. The K-factor will be needed to program the monitor readout. ENTER PROGRAMMING MODE –...
- Page 8 SELECT THE METER SIZE – At the METER prompt, press the ENTER button once. The current meter size number will begin to flash. Using the arrow keys, scroll through the size choices until you find the bore size of your meter. Press ENTER once to save the meter size choice.
- Page 9 the current selection is correct, press the ENTER key to ad- vance to the next parameter. To change to an alternate time interval, use the arrow keys to scroll to the desired time inter- val and press ENTER to save the choice. Note: If flow rate is the only measurement of interest, skip to KFAC UNT to complete the programming process.
- Page 10 is currently set for. If the current selection is correct, press the ENTER key to advance to the next parameter. To change to an alternate multiplier, use the arrow keys to scroll to the de- sired multiplier unit and press ENTER to save the choice. Multiplier Choices –...
-
Page 11: Ma Programming
vance to the next parameter. The scale factor is used to force a global change to all variables. For example, under operating conditions the display is reading a consistent 3% below the expected values at all flow rates. Rather than changing all pa- rameters individually, the scale factor can be used to compen- sate for the 3% offset. - Page 12 prompt. The most significant digit will begin to flash. The RIGHT arrow key moves the active digit one place to the right for each press of the key. The UP arrow key increments the active digit one integer for each press of the key. When the correct 4mA flow rate has been entered, press ENTER once to store this value and move to the next parameter.
-
Page 13: Linearization
4mA ADJUSTMENT – While monitoring the ammeter, ad- just the 4mA value to obtain a 4mA reading. The UP arrow key increments the value and the RIGHT arrow key decre- ments the value. When a steady 4mA reading is obtained on the ammeter, press the ENTER key to lock in this value and move to the 20mA adjustment. -
Page 14: Password
RIGHT arrow moves the cursor between digits. When the number of points has been input, press the ENTER key once to move to the first linear segment. Press the ENTER key once and the first linear point’s fre- quency input will begin to flash (FREQ 1). Enter the fre- quency for the first linear point using the arrow keys. - Page 15 Pressing ENTER once will store the pass- word and take you back to the METER size screen, pressing MENU exits the programming mode. The B2800 Flow Moni- tor is now ready for use with its companion meter. Note: en-...
-
Page 16: Battery Replacement
ADDITIONAL INPUT OPTIONS The B2800 Flow Monitor is capable of receiving Magnetic Pick- up Input or a Contact Closure Input. Since most Blancett Flow Meters utilize a magnetic pick-up, the monitor is shipped config- ured for magnetic pick-up input. -
Page 17: Wiring Diagram
FIGURE 3 - CIRCUIT BOARD LAYOUT... - Page 18 FIGURE 4 - PROGRAMMING MENU FIGURE 5 - 4-20mA PROGRAMMING...
-
Page 19: Mounting Options
MOUNTING OPTIONS... -
Page 21: Troubleshooting
TROUBLE SHOOTING GUIDE Trouble Remedy • Battery Powered Version: Check battery voltage. Should be 1.5 VDC. Replace if low or bad. • No LCD Display Loop Powered Version: Check for current flow in the loop. Check polarity of the current loop connections for proper orientation. -
Page 22: General Notes On Scaling
GENERAL NOTES ON SCALING This information is supplied as a general introduction to the basic concepts used to scale rate displays. The applicability of the infor- mation is dependent on the type and capabilities of the specific display/monitor used. Flow meters producing an electronic signal are normally supplied in one of two output formats. - Page 23 lar volume such as gallon or liter. K-factors are indicated in pulsed per unit volume or counts per unit volume. An exam- ple of a K-factor, normally supplied by the manufacturer, might be 2000 counts per gallon. The K-factor is correlated to flow through a simple mathematical relationship: Frequency = K-factor x Volume per unit of time ÷...
- Page 24 calibration run is displayed below. **UUT Hz UUT K(Hz*60)/NK Error Frequency Counts/GAL % FS 15.00 769.7 3078.59 14.90 -0.65 -0.38 9.06 466.1 3086.75 9.03 5.49 285.2 3118.64 5.52 0.65 3.32 171.7 3103.95 3.32 0.17 2.00 103.6 3101.80 2.01 0.10 **UUT=Unit Under Test If this meter produced an actual linear output, the K-factor calcu- lation for the Unit Under Test would be exactly the same for each measurement point.
-
Page 25: Part Numbering Information
Power Option S = Swivel Mount Selectable* H = Hand-Held B = Battery P = Panel Mount L = Loop X = Explosion-Proof Note: *Advanced B2800 monitors only. The default is gallons per minute. COMPONENT PART NUMBER Keypad B260713 Battery B280601... -
Page 27: Statement Of Warranty
Blancett’s obligation under this warranty is lim- ited to the repair or replacement of a defective product, at no charge to the end purchase, if the product is inspected by Blancett and found to be defective. Repair or replacement is at Blancett’s discretion. A... - Page 28 8635 Washington Avenue • Racine, Wisconsin 53406 Technical Toll-Free: 877.722.4631 • Sales Toll-Free: 800.235.1638 Phone: 817.426.2888 • Fax: 817.426.5303 www.blancett.com Form: B2800 Advanced Manual Revision 03/06...
