Blancett B2800 Programming And Installation Manual

Flow monitor explosion proof
Hide thumbs Also See for B2800:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming & Installation Manual, User Manual
B
2
8
0
0
F
L
B
2
8
0
0
F
L
E
x
p
E
x
p

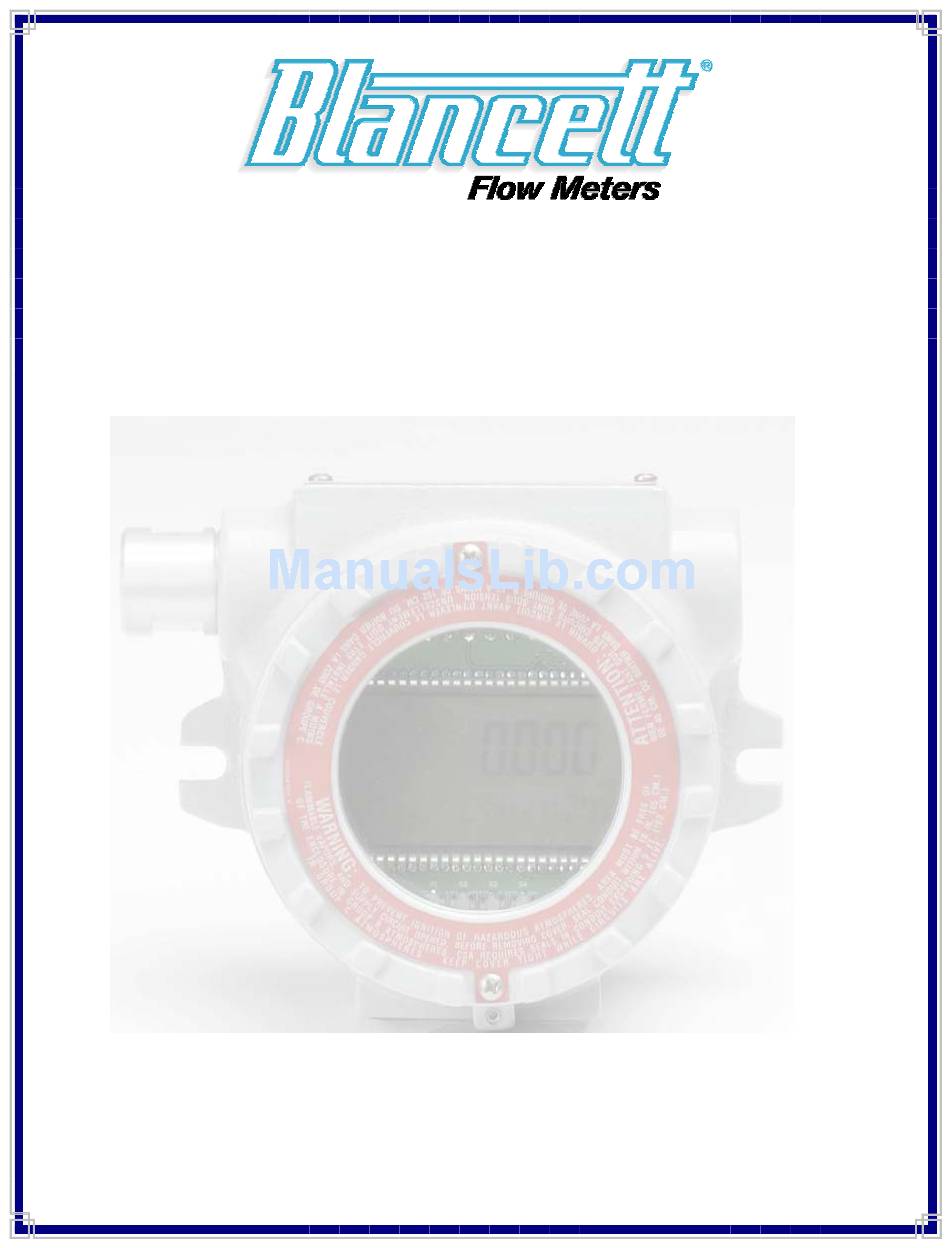

Programming and Installation Manual
Advanced - Version 1.01
Division of Racine Federated Inc.
100 East Felix Street South, Suite 190 Fort Worth, Texas 76115
Tel: 817-920-9998 • Fax: 817-921-5282 • Toll-Free: 800-235-1638
O
W
M
O
N
O
W
M
O
N
l
o
s
i
o
n
P
r
o
o
f
l
o
s
i
o
n
P
r
o
o
I
T
O
R
I
T
O
R
f

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B2800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blancett B2800

Summary of Contents for Blancett B2800

  • Page 1 Programming and Installation Manual Advanced - Version 1.01 Division of Racine Federated Inc. 100 East Felix Street South, Suite 190 Fort Worth, Texas 76115 Tel: 817-920-9998 • Fax: 817-921-5282 • Toll-Free: 800-235-1638...

  • Page 2: Table Of Contents

    Whenever this symbol appears please refer to accompanying documentation. Notice: Blancett reserves the right to make any changes or improvements to the product described in this manual at any time without notice. - 1 -...

  • Page 3: Introduction

    Though designed for use with Blancett Flow Meters, this display can be used with almost any flow meter producing a low amplitude AC output or contact closure signal(s).

  • Page 4: Specifications

    Specifications Power Supply Options: Battery Powered 1 D” size 1.5 Volt Alkaline Battery Loop Powered 4-20 mA Loop Powered Power Consumption: Battery Powered Less than 1 milli- watt Loop Powered 25mA (Maximum) Alpha-Numeric Rate and Totalization Display: 8 digit, .5” high numeric display 8 character, .25”...

  • Page 5: Operating The Monitor

    ENTER – Used to enter sub- menus, save programming information and in the reset process. If your monitor was ordered with a Blancett flow meter, the two components ship from the factory, calibrated as a set. If the monitor is a replacement, the turbine’s K-Factor has changed, or the monitor is being used with some other pulse generating device, programming will be necessary.
  • Page 6 Note: The meter connection size and the bore size are different. For example, many of the 1” NPT turbines have bore sizes that range from 3/8” up 1”. Be sure to use the correct bore size or the meter could report incorrect flows and totals. Select the Display Function –...
  • Page 7 Select the Total’s Display Multiplier – The monitor has a very versatile display that has the ability to accumulate the flow total in multiples of ten. For example, if the most desirable totalization unit is 1,000 gallons, the monitor can easily be set up for this requirement. Once the unit is back in RUN mode, every time the total display is incremented by one digit the actual total would be an additional 1,000 gallons.

  • Page 8: Additional Scaling Parameters

    Additional Scaling Parameters Note: Some of the following scaling parameters are model dependent and may not be displayed. Scale Factor – At the SCALE F prompt, press the ENTER key once. The current Scale Factor will begin to flash. If the current selection is correct, press the ENTER key to advance to the next parameter.
  • Page 9 4mA Adjustment – While monitoring the ammeter, adjust the 4mA value to obtain a 4mA reading. The arrow key increments the value and the arrow key decrements the value. When a steady 4mA reading is obtained on the ammeter, press the ENTER key to lock in this value and move to the 20mA adjustment.
  • Page 10 METER size screen, pressing MENU exits the programming mode. The B2800 Flow Monitor is now ready for use with its companion meter. Reset Total – To reset the monitor total display, in run mode press the MENU and ENTER simultaneously until TOTAL RST starts to flash.

  • Page 11: Wiring Diagram

    NOTES: - 10 -...

  • Page 12: Battery Replacement

    Battery Replacement Battery powered monitors use a single 1.5V, D size, alkaline battery. When replacement is necessary, use a clean fresh battery to insure continued trouble free operation. It is recommended that the total be saved to memory before the battery is removed. (See “Store Total”...

  • Page 13: Enclosure Installation

    Explosion Proof Enclosure Installation The EIH Instrument Enclosure is designed to house instrumentation and control equipment as well as act as a conduit outlet body in hazardous, abusive, and wet locations. The EIH enclosure is approved by Underwriters Laboratories Inc., Canadian Standards Association, Factory Mutual and CENELEC for use in Class I, Groups B*, C**, and D, Class II, Groups E, F, and G and Class II hazardous (classified) locations as defined by the National Electrical Code®...
  • Page 14 5. Pull wires into enclosure making certain they are long enough to make the required connections and to remove the instrument or power supply if servicing is required. Install instrument and power supply, if applicable and make all electrical connections. NOTE: When installing device be sure to check instrument dimensions to avoid interference with clamping ring on glass lens and the cover on standard units.

  • Page 15: Programming Flowchart

    - 14 -...
  • Page 16 - 15 -...

  • Page 17: Troubleshooting

    Troubleshooting 1) No LCD Display - For Battery powered version Check Battery Voltage. Should be 1.5VDC (replace is low or bad). For Loop powered version Check for current flow in the loop. Check polarity of the current loop connections for proper orientation. 2) No Rate or Total Displayed - Check connection from meter pickup to display input terminals.

  • Page 18: General Notes On Scaling

    General Notes on Scaling This information is supplied as a general introduction to the basic concepts used to scale rate displays. The applicability of the information is dependent of the type and capabilities of the specific display/monitor used. Flow meters producing an electronic signal are normally supplied in one of two output formats.
  • Page 19 Given that the meter has a maximum flow rate of 25GPM the maximum frequency would then Frequency = 2,000 x 25(gallons) ÷ 60 = 833.333Hz at 25GPM A programmable display requires at least two points. The first point is going to be the zero or minimum flow and the second would normally be the maximum flow rate.

  • Page 20: Blancett Part Numbering Information

    M = Meter Mount P = Panel Mount R = Remote Mount S= Swivel Mount X = Explosion Proof H = Handheld *Note: Advanced B2800 Monitors only. The default is gallons per minute Explosion Proof - Accessories Component Part Number Enclosure B280635...
