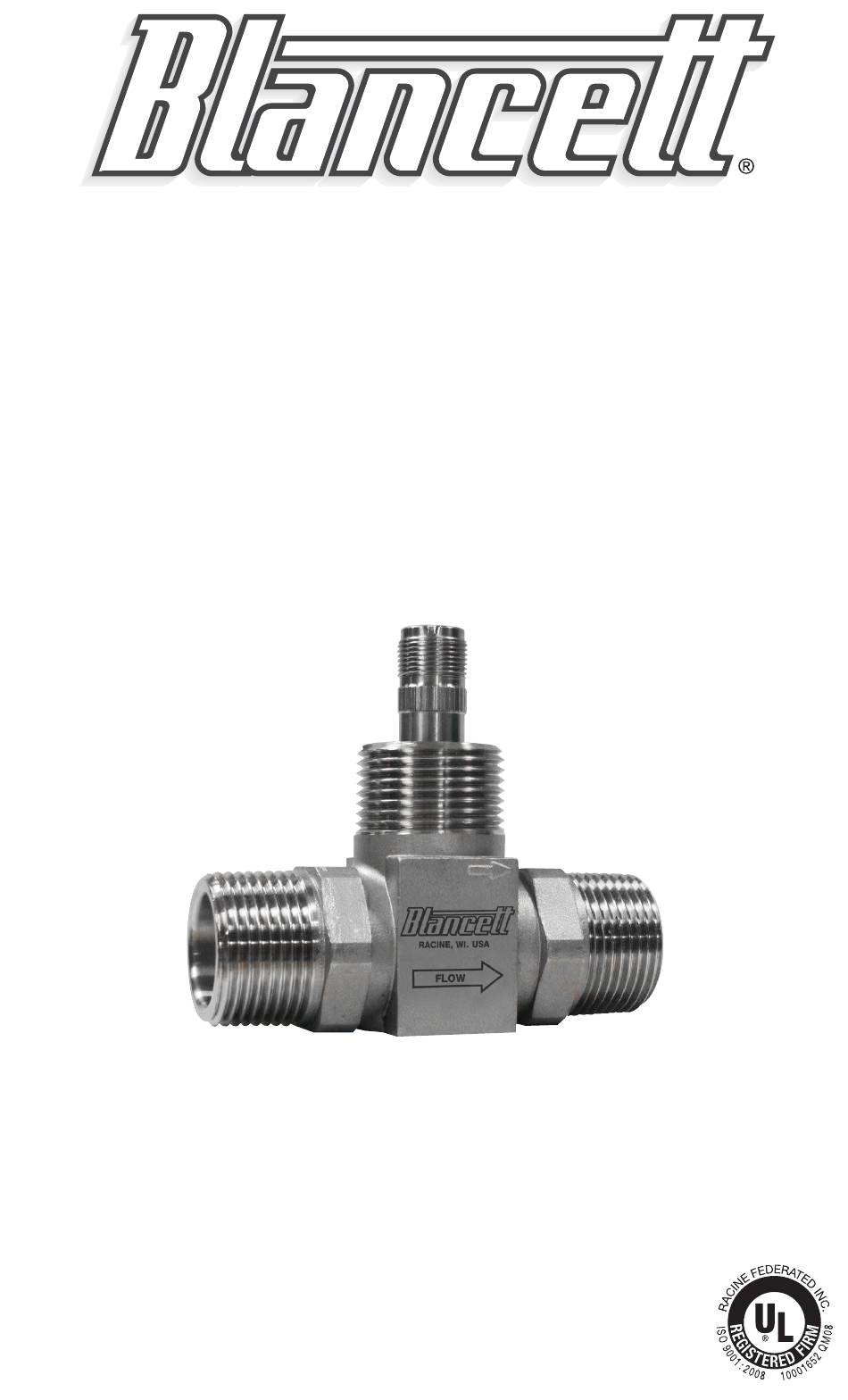

- Page 1 Model 1100 Turbine Flow Meter INSTALLATION & INSTRUCTION MANUAL 8635 Washington Avenue Racine, Wisconsin 53406 Toll Free: 800.235.1638 Phone: 262.639.6770 • Fax: 262.417.1155 www.blancett.com...
-
Page 3: Table Of Contents
Troubleshooting ..................11 Part Number Information ..............12 Repair Kit Information .................13 Statement of Warranty ................14 NOTE: Blancett reserves the right to make any changes or improvements to the product described in this manual at any time without notice. Form No. B110-001 08/10... -
Page 4: Introduction

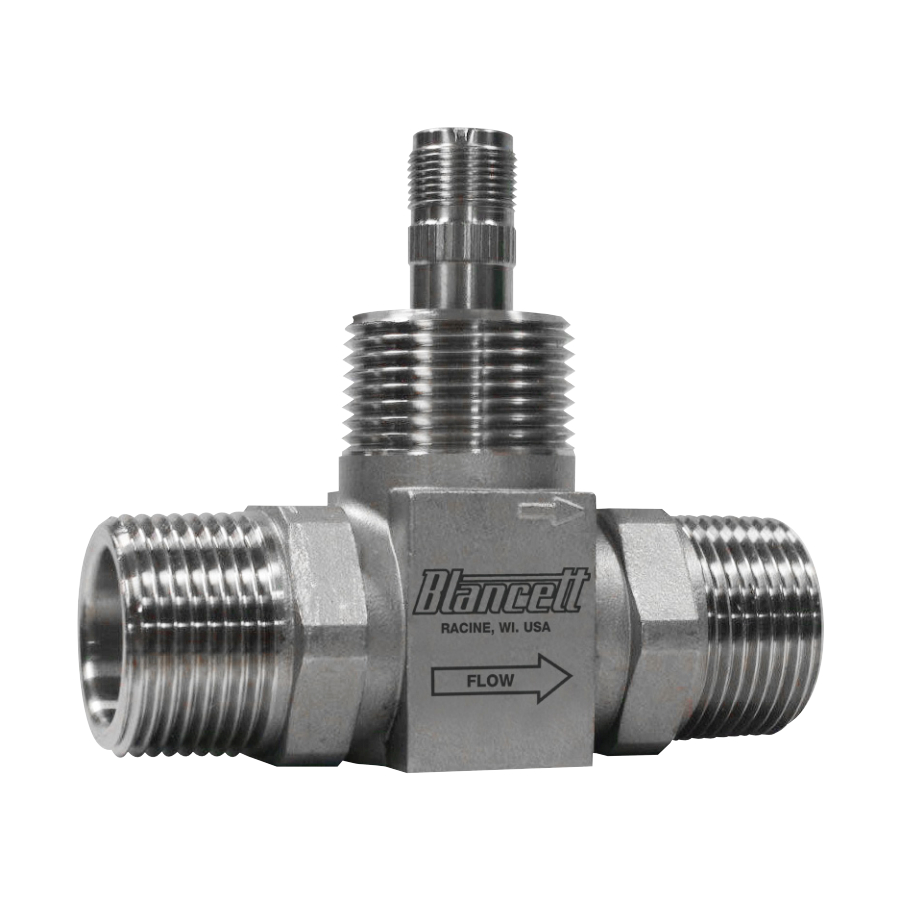

The Model 1100 Turbine Flow Meter is designed to withstand the demands of the most rigorous flow measurement applications. Originally developed for the secondary oil recovery market, the Model 1100 is an ideal meter for liquid flow measurement on or off the oil field. - Page 5 MAGNETIC PICK-UP * ROTOR AND CONDUIT ADAPTOR ROTOR SHAFT METER BODY * UPSTREAM ROTOR SUPPORT RETAINING RING GROOVE * RETAINING RING RETAINER PINS * DOWNSTREAM ROTOR SUPPORT * BEARING * THRUST BALL NOTE: * INDICATES PARTS CONTAINED IN REPAIR KITS Figure 2 Typical cross-section of B110-375 through B111-121 turbine flow meter...
-
Page 6: Specifications
3�8” and ½” meters Repeatability: ±0.1% Calibration: Water (NIST Traceable Calibration) Corrosion: All Blancett Model 1100 turbine meters are constructed of stainless steel and tungsten carbide. The operator must ensure that the operating fluid is compatible with these materials. -
Page 7: Installation
REPAIR KIT: The Model 1100 Turbine Flow Meter Repair Kit is designed for easy field service of a damaged flow meter, rather than replacing the entire flow meter. See Appendix C on page 13 for repair kit information. Repair... - Page 8 Part Number Strainer Mesh Clearance Filter Size B110-375 60 × 60 .0092 260 Micron B110-500 60 × 60 .0092 260 Micron B110-750 60 × 60 .0092 260 Micron B110-875 60 × 60 .0092 260 Micron B111-110 60 × 60 .0092 260 Micron B111-115 20 ×...
- Page 9 Do not locate the flow meter or connection cable close to electric motors, transformers, sparking devices, high voltage lines, or place connecting cable in conduit with wires furnishing power for such devices. These devices can induce false signals in the flow meter coil or cable, causing the meter to read inaccurately.
-
Page 10: Operational Start-Up
OPERATIONAL START-UP The following steps should be followed when installing and starting the meter. WARNING: Make sure that fluid flow has been shut off and pressure in the line released before attempting to install the meter in an existing system. AVERTISSEMENT: Assurez-vous que le flux de fluide a été... -
Page 11: Troubleshooting
APPENDIX A TROUBLESHOOTING GUIDE Trouble Possible Cause Remedy Meter indicates higher • Cavitation • Increase back pressure than actual flow rate • Debris on rotor support • Clean meter • Build up of foreign material • Clean meter on meter bore • Gas in liquid • Install gas eliminator ahead of meter Meter indicates lower • Debris on rotor... -
Page 12: Part Number Information
APPENDIX B PART NUMBER INFORMATION Flow Ranges Part Meter Number Size M³/D B110-375-1/2 3�8” 0.6 - 3 20 - 100 3.3 - 16 B110-500-1/2 ½” 0.75 - 7.5 25 - 250 4.1 - 41 B110-750-1/2 ¾” 2 - 15 68 - 515 10.9 - 81.75 B110-375 3�8”... -
Page 13: Repair Kit Information
APPENDIX C REPAIR KIT INFORMATION Repair Kit Fits Repair Kit Flow Meter Size Meter Part Number Part Number 3�8” B110-375, B110-375-1/2 B251-102 ½” B110-500, B110-500-1/2 B251-105 ¾” B110-750, B110-750-1/2 B251-108 7�8” B110-875 B251-109 1” B111-110 B251-112 1-½” B111-115 B251-116 2” Low B111-121 B251-116 2”... -
Page 14: Statement Of Warranty
Blancett assumes no responsibility or liability for any omissions or errors in connection with the use of its products. Blancett will under no circumstances be liable for any incidental, consequential, contingent or special damages or loss to any person or property arising out of the failure of any product, component or accessory. - Page 16 8635 Washington Avenue • Racine, Wisconsin 53406 Toll Free: 800.235.1638 Phone: 262.639.6770 • Fax: 262.417.1155 www.blancett.com • info@blancett.com BLANCETT is a registered trademark of Racine Federated Inc. Printed in USA UL is a registered trademark of Underwriters Laboratories. Form No. B110-001 08/10...
