Raisecom
ISCOM5508-GP (A) Hardware Description
ALM
AC
DC
RUN
LED
Status
Red
Green
Green
Red/Green Power working LED
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
Description
Power alarm LED
Red: the power is working improperly and an alarm is
generated.
Off: the power is working properly.
AC power working LED
Green: the power module is working properly.
Off: the power module is working improperly.
DC power working LED
Green: the power module is working properly.
Off: the power module is working improperly.
Red: the subcard is working properly.
Green: the subcard is working improperly.

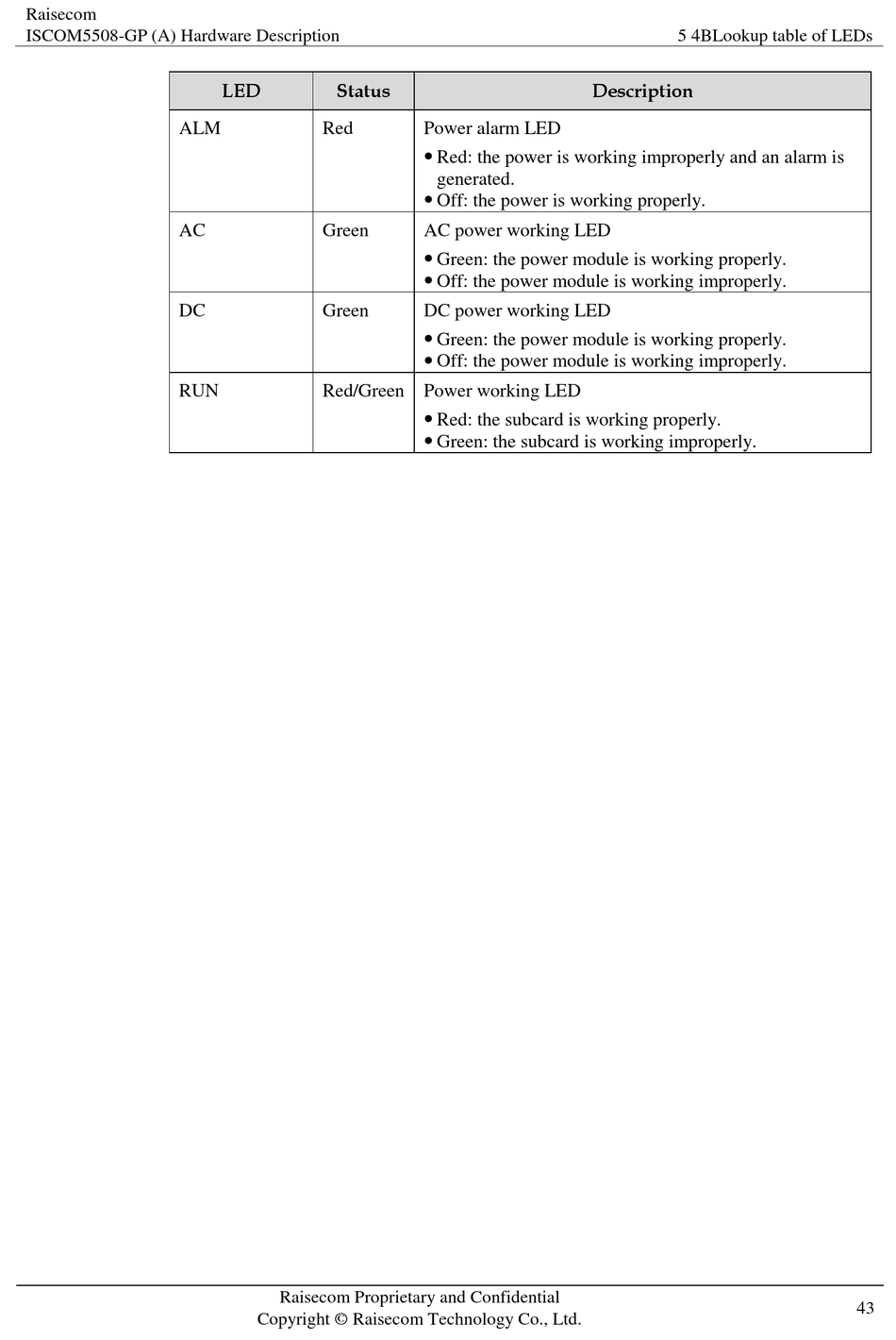

5 4BLookup table of LEDs
43
