DeDietrich SOLNEO SGC 24 SOL Technical Leaflet

F L O O R - S T A N D I N G G A S - F I R E D C O N D E N S I N G B O I L E R
Heating and solar domestic
hot water
Condensing
All natural gases, Butane,
Propane
Solar energy
EC identification No.:
0085BQ0052
SOLNEO
SGC 24 SOL: 6 to 23,7 kW for heating and solar domestic
hot water

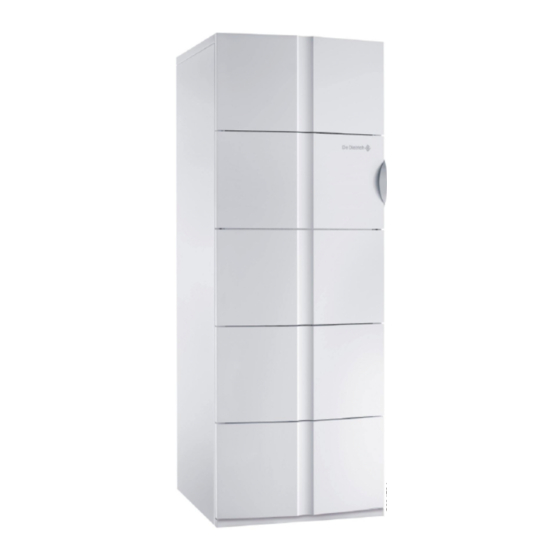

SGC 24 SOL
Floor-standing gas condensing boiler with integrated solar DHW calorifier
2
for connecting up to 4 m of solar collectors.
All-in-one multi-energy solution, combining a compact, efficient, easy-to-
install condensing boiler and a 200-litre double coil solar DHW tank placed
directly under the boiler.
C
ONDITIONS OF USE
Boiler:
Min. flow temperature: 15°C
Min. return temperature: none
Max. operating temperature: 90°C
Max. operating pressure: 3 bar
Thermostat adjustable from 30 to 90°C
Safety thermostat: 110°C
Power supply: 230 V/50 Hz
Protection index: IPX 2D
Domestic hot water calorifier:
DHW temperature adjustable from 40 to 60°C
Max. DHW operating pressure (tank + exchangers): 10 bar
Solar circuit:
Max. operating temperature: 130°C
Max. operating pressure: 6 bar
H
OMOLOGATION
B , C , C , C
23P 13x 33x 53
G
AZ CATEGORY
Fitted and preset to operate on natural gases
Butane or propane operating by modifying the setting
