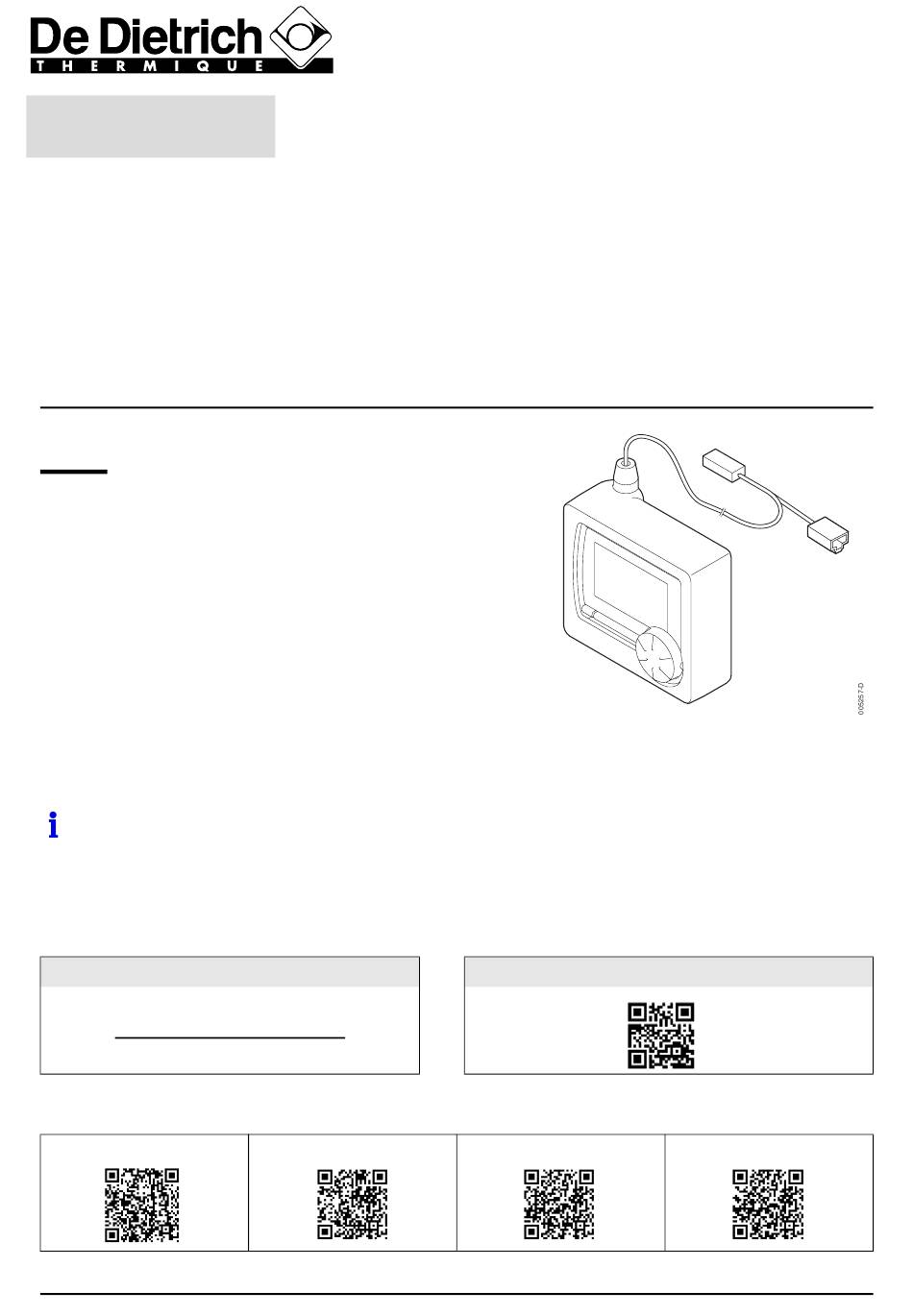

Technical Sales
Documentation Department
P5253 JS F 67580 Mertzwiller
EN

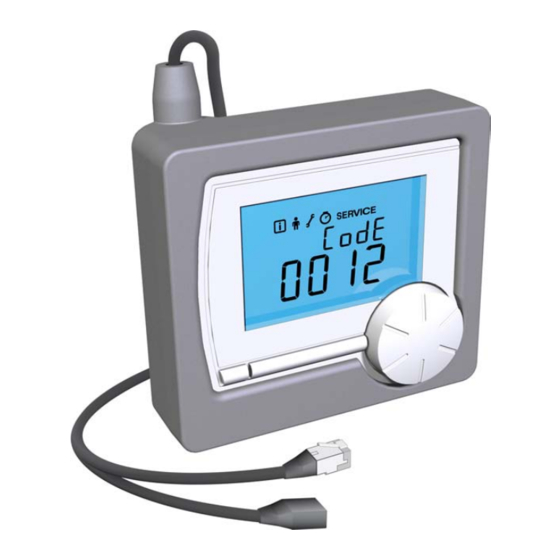

1. Service tool
The service tool is required to modify the factory settings of
EMC... / PMC... boilers
For example:
- Settings in case of gas conversion
- Modification of the heating gradient
- Modification of the maximum boiler temperature
- Modification of the fan speed
etc...
The service tool can also help in the diagnosis by displaying error codes.
Only the service tool assembly instructions are delivered with package HR83.
The user manual (first version attached) can be downloaded from our website in Product section.
2. After Sales Service information
A website with simplified After Sales Service information for different products is available:
Access from a computer:
http://sav.dedietrich-thermique.fr
After Sales Service information is currently available for the following products (NANEO to come):
INNOVENS MCA
PKR
N° IT2598
or
MODULENS AGC
1 / 1
Wall-hung gas condensing boilers
Service tool / After Sales Service information
Access via smartphone or tablet (QR code)
MIV II for ALEZIO
T
Technical information
Heading No 5
NANEO EMC ... - PMC...
Package HR83 (option)
15/02/2013
VIVADENS MCR
IT2598
Advertisement
Table of Contents
Related Manuals for DeDietrich NANEO EMC-PMC Series
Summary of Contents for DeDietrich NANEO EMC-PMC Series
- Page 1 A website with simplified After Sales Service information for different products is available: Access from a computer: Access via smartphone or tablet (QR code) http://sav.dedietrich-thermique.fr After Sales Service information is currently available for the following products (NANEO to come): INNOVENS MCA...
- Page 2 Service tool User Guide 7603161-01...
-
Page 3: Table Of Contents
Contents Control panel ....................2 Description ............2 1.1.1 Meaning of the symbols on the display ....2 Settings .......................3 Menu structure .............3 Information menu Q ..........3 User menu W ............4 Installer menu ? ..........4 Counter menu \ ..........5 Service menu K ..........5 Messages ....................7 Error messages .............7 Technical specifications ................8... -
Page 4: Control Panel
Service tool 1. Control panel Control panel Description Display Rotary and push button for operating the service tool The service tool is menu-controlled, making it very easy to operate. The service tool has just one button. The button is both a rotary button and a push button. Turn it to scroll through menus or change values. -
Page 5: Settings
2. Settings Service tool Settings Menu structure To access the menu, proceed as follows: 4 Press the rotary and push button for at least 3 sec. 4 Turn the button until you reach the required menu. 4 Press the button to confirm. 4 Amend the selected menu item. -
Page 6: User Menu W
Service tool 2. Settings User menu W Changes to parameter settings in this menu are only used while the service tool is connected. Use the Fitter menu ? to change the parameter settings permanently. Code Meaning Information Settings Factory setting Zvt;... -
Page 7: Counter Menu
2. Settings Service tool To change a required negative value to -15, the setting value must be set to 241 (241 - 256 = -15). Desired value 0 -10 -15 -20 -25 -30 0 255 251 246 241 236 231 226 Setting value Setting value 0 = Desired value 0. - Page 8 Service tool 2. Settings When the mleZr message is displayed, you can choose to either retain the service message or reset it. If no action is taken, the service message will remain. To reset the service message, proceed as follows: 1.
-
Page 9: Messages
3. Messages Service tool Messages Error messages If an error is present, a fault code and a fault indication will appear on the display. R000125-A Error codes Fault Probable causes Solution indication Faulty connection to boiler. Check the boiler’s connection to the service tool. f203 Incorrect room temperature Room temperature reading is incorrect. -
Page 10: Technical Specifications
Service tool 4. Technical specifications Technical specifications Technical specifications Dimensions 80 x 90 x 32,5 (l x b x h) mm Power supply Service tool OpenTherm OpenTherm Electrical connection Service tool OpenTherm OpenTherm communication. Low-voltage connection Ambient conditions Storage conditions Temperature: -25℃... - Page 13 © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing. 280113 7603161...
