RKC INSTRUMENT THV-1 Instruction Manual

RKC INSTRUMENT THV-1 Instruction Manual

Single-phase thyristor unit
Hide thumbs Also See for THV-1:

Advertisement

Quick Links

*00586183*

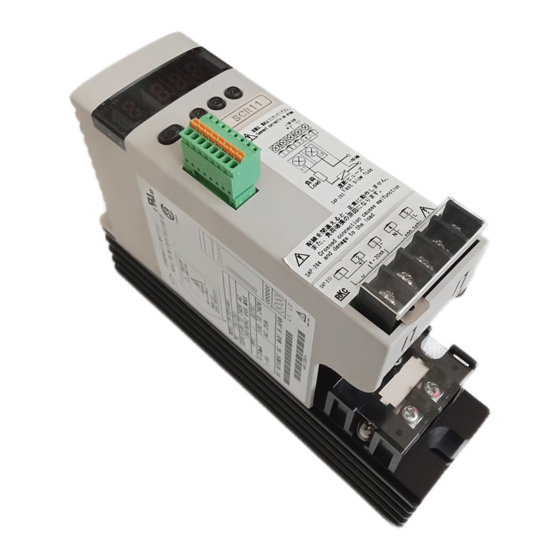

Single-phase Thyristor Unit
THV-1
Instruction Manual
IMR01M01-E16
Thank you for purchasing this RKC product. In order to
achieve maximum performance and ensure proper operation
of the instrument, carefully read all the instructions in this
manual. Please place the manual in a convenient location for
easy reference.
SYMBOLS
: This mark indicates precautions that must be
WARNING
taken if there is danger of electric shock, fire,
etc., which could result in loss of life or injury.
: This mark indicates that if these precautions
CAUTION
and operating procedures are not taken,
damage to the instrument may result.
: This mark indicates that all precautions should
!
be taken for safe usage.
: This mark indicates important information on
installation, handling and operating procedures.
: This mark indicates supplemental information
on
installation,
procedures.
: This
mark
information may be located.
!
WARNING
 An external protection device must be installed if
failure of this instrument could result in damage to
the instrument, equipment or injury to personnel.
 All wiring must be completed before power is turned
on to prevent electric shock, fire or damage to the
instrument and the equipment.
 This instrument must be used in accordance with the
specifications to prevent fire or damage to the
instrument and the equipment.
 This instrument is not intended for use in locations
subject to flammable or explosive gases.
 Do not touch high-voltage connections such as
power supply terminals, etc. to avoid electric shock.
 When the withstand voltage test or each test is
performed, please contact RKC sales office or the
agent. If you make a mistake in the test method, the
instrument failure may result.
 RKC is not responsible if this instrument is repaired,
modified
or
disassembled
factory-approved personnel. Malfunction may occur
and warranty is void under these conditions.
High temperature caution:
Do not touch the heat radiation fin while the
power is turned on or just after the power is
turned off as it may be at high temperatures.
If touched, burning may result.
 This product is intended for use with industrial machines,
test and measuring equipment. (It is not designed for use
with medical equipment and nuclear energy plant.)
 This is a Environment A instrument. In a domestic environment,
this instrument may cause radio interference, in which case the
user may be required to take additional measures.
All Rights Reserved, Copyright  2002, RKC INSTRUMENT INC.
handling
and
operating
indicates
where
additional
by
other
CAUTION
 Be sure to provide an appropriate surge control circuit
respectively for the following:
− If input/output or signal lines within the building are
longer than 30 meters.
− If input/output or signal lines leave the building,
regardless the length.
 This product is manufactured on the assumption that it is
mounted
within
connections such as power supply terminals must be
enclosed in the control panel to avoid electric shock to
operating personnel.
 All precautions described in this manual should be taken to
avoid damage to the instrument or equipment.
 All wiring must be in accordance with local codes and
regulations.
 Always use this product at the rated power supply voltage,
load current and power frequency.
 All wiring must be completed before power is turned on to
prevent electric shock, instrument failure, or incorrect
action.
 To prevent instrument damage or failure, protect the power
line and the input/output lines with a protection device such
as fuse, etc.
 If this product is used for phase control, higher harmonic
noise may be generated. Therefore in this case, take such
measures as separating the power line from the
high-voltage line for load drive.
 Prevent metal fragments or lead wire scraps from falling
inside instrument case to avoid electric shock, fire or
malfunction.
 Tighten each terminal screw to the specified torque found
in the manual to avoid electric shock, fire or malfunction.
 For proper operation of this instrument, provide adequate
ventilation for heat dissipation.
 Do not connect wires to unused terminals as this will
interfere with proper operation of the instrument.
 Turn off the power supply before cleaning the instrument.
 Do not use a volatile solvent such as paint thinner to clean
the instrument. Deformation or discoloration may occur.
Use a soft, dry cloth to remove stains from the instrument.
 To avoid damage to the instrument display, do not rub with
an abrasive material or push the front panel with a hard
object.
 This manual assumes that the reader has a fundamental
knowledge of the principles of electricity, process control,
computer technology and communications.
 The figures, diagrams and numeric values used in this
manual are only for explanation purpose.
 RKC is not responsible for any damage or injury that is
caused as a result of using this instrument, instrument
failure or indirect damage.
than
 RKC is not responsible for any damage and/or injury
resulting from the use of instruments made by imitating this
instrument.
 Periodic maintenance is required for safe and proper
operation of this instrument. Some components have a
limited service life, or characteristics that change over time.
 Every effort has been made to ensure accuracy of all
information contained herein. RKC makes no warranty,
expressed or implied, with respect to the accuracy of the
information. The information in this manual is subject to
change without prior notice.
 No portion of this document may be reprinted, modified,
copied,
transmitted,
retrieved through any mechanical, electronic, optical or
other means without prior written approval from RKC.
RKC INSTRUMENT INC.
®
a
control
panel.
All
NOTICE
digitized,
stored,
processed
high-voltage
or

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THV-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RKC INSTRUMENT THV-1

  • Page 1  This is a Environment A instrument. In a domestic environment, other means without prior written approval from RKC. this instrument may cause radio interference, in which case the user may be required to take additional measures. All Rights Reserved, Copyright  2002, RKC INSTRUMENT INC. RKC INSTRUMENT INC. ®...
  • Page 2 To control the primary side of the transformer, it is recommended to purchase a of primary side of a transformer functions THV-1 with a protection function for control of primary side of a transformer. (The current limiter, constant current control and...
  • Page 3 3. PARTS DESCRIPTION The 20 A and 30 A types are used in the following figures for explanation, but the same explanations also apply to 45 A, 60 A, 80 A and 100 A types. Power lamp Display Lights when the power is turned on. Display the input signal values and parameters.
  • Page 4 4.2 Dimensions 20 A and 30 A types  Unit: mm Dimensions Mounting dimensions 133.5 2-M5 Dimensions when connector plug (optional) connected. When connecting the connector plug, install the thyristor by taking enough space for its wiring into account. Minimum space when mounted closely side by side. Some space for heat radiation is required in the vertical direction between the lower and upper ends of the instruments.
  • Page 5  80 A and 100 A types Unit: mm Dimensions Mounting dimensions 158.5 104 ± 0.2 4-M5 Dimensions when the connector plug (optional) is connected. When connecting the connector plug, install the thyristor by taking enough space for its wiring into account. Minimum space when mounted closely side by side.
  • Page 6 Power supply Fast-blow 100 to 240 V AC fuse  THV-1 conforms to CE marking by using the noise filter. The noise filter specified: SOSHIN ELECTRIC CO., LTD. 20 A/30 A: LF2030A-NH 60 A: HF2060A-UP 100 A: HF2100A-UP 45 A:...
  • Page 7  Make sure that the any wiring such as solderless terminal is not in contact with the adjoining terminals. Wiring diagram of main circuit Power supply Terminal screws size 100 to 240 V AC THV-1 (50/60 Hz) 20 A/30 A 45 A/60 A 80 A/100 A Main circuit Always conduct wiring so that the...
  • Page 8 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Main circuit terminal (1/L1) The number of THV-1 that can be connected depends on the Main circuit allowable load resistance of terminal (2/T1) temperature controller being used.
  • Page 9 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Main circuit terminal (1/L1) The number of THV-1 that Main circuit can be connected depends terminal (2/T1) on the allowable load resistance of temperature controller being used.
  • Page 10 Set value of the Low limit setter: 40 % 80 % × 40 % = 32 % Low limit output value 32 % Low limit setter High limit setter Controller Controller THV-1 connector ON/OFF signal ON/OFF signal THV-1 connector +5 V output Short Short...
  • Page 11: Table Of Contents

    6. SETTING This chapter describes the display menus on the LED display. 6.1 Display Flowchart for Monitor and Setting Parameters The instrument has two Monitor/Setting modes. • Parameter group 1 includes parameters for both monitoring and setting such as Input signal monitor 1, Phase angle monitor, Phase/Zero-cross control selection, and others.
  • Page 12: Input Signal Monitor 1

    6.2 Display Sequence 6.2.1 Selecting parameter group After power-on to the instrument, the display automatically goes to Input signal monitor 1 in Parameter group 1. To go to Parameter group 2 display, press and hold the Parameter Key for 2 seconds. Parameter group 1 Parameter group 2 8.8.
  • Page 13 6.2.4 Setting procedure of protection function for control of primary side of a transformer The following parameters need to be adjusted to suit your system. (If the factory set values satisfy the requirements, they can be used as they are) After having the following parameters properly adjusted, enable the protection function for primary side of a transformer.
  • Page 14: Output Limiter High

    6.2.5 Parameter list  Parameter group 1 Parameter Display range or Factory Reference Name Details Symbol Setting range set value page ⎯ P. 17 Input signal 0 to 100 % Displays one of the following values monitor 1 parameter depending on the Control mode and the setting of Contact input action.
  • Page 15: Maximum Load Current Set Value For Alarm

    Parameter group 1 Parameter Display range or Factory Reference Name Details Symbol Setting range set value page Contact input 0: External manual mode Select the contact input action. Refer to ↔ Auto mode action This selection also affects the display 7.1 on 1: Internal manual mode of the Input signal monitor 1.
  • Page 16: Power Frequency Monitor

    Parameter group 1 Parameter Display range or Factory Reference Name Details Symbol Setting range set value page Current limit value 0.0 to 32.0 A (20 A/30 A) 32.0 Set the Current limit value. P. 23 setting If a current limit value is set to its 1, 2, 3 0 to 55 A (45 A)
  • Page 17 Internal manual set value Input signal from controller closed ↔ Auto mode (Manual mode) 2: Internal manual mode THV-1 Internal manual set value (fixed)  Select Manual mode type Example: Select Manual mode with Internal manual set value. J.8. 8. 1.
  • Page 18 The following two types of gradient setting are available. Internal gradient External gradient scale set value • Internal gradient setting set by the THV-1 front keys 1.00 • External gradient setting set by the external gradient setter (external potentiometer) 0.80 The output value is adjusted by Gradient setting function as follows.
  • Page 19 Continued from the previous page.  Constant current control This is the function used to keep the output current constant in proportion to the input signal. This function is effective when a heater with large resistance changes caused by temperature variations is used (such as tantalum, superkanthal, tungsten, platinum, or molybdenum).
  • Page 20 7.9 Heater Break Alarm Function The Heater break alarm monitors the current flowing through the load by a dedicated current transformer (CT). The THV compares the measured value with the set values, and detects a fault in the heating or cooling circuit. In addition, there are several types of Heater break alarms depending on control methods and applications of these Heater break alarms.
  • Page 21  How alarm is checked If the alarm occurs, the relevant error number is shown on the display unit. Therefore in this case, check the alarm contents. Error number Description E.1. 2. 8. Heater break alarm 1 Thyristor break-down Error display Heater break alarm 2 (heater deterioration) For the Error display, refer to the 8.
  • Page 22 7.9.3 Zero-cross control The following usage is available in Zero-cross control. (Refer to  Application) Heater break alarm 1 set value: The alarm can be output when a heater break occurs by setting the Heater break alarm set value. Heater break alarm 2 set value: This alarm set value can be used as an auxiliary alarm. For example, it can be used as a Heater deterioration alarm if set to any value slightly larger than the Heater break alarm set value to output the alarm before a Heater break alarm occurs when the load current decreases due to heater deterioration, etc.
  • Page 23 7.10 Current Limiter Function This is the function of limiting a measured current value to a value not exceeding the preset current limit value. A current value is measured for each constant cycle and then the maximum phase angle not exceeding the Current limit value is computed from the above current value thus measured.
  • Page 24 7.12 Protection Function for Control of Primary Side of a Transformer If momentary power failure occurs during execution of the control of primary side of a transformer, inrush current is generated. Protection function for control of primary side of a transformer is to protect the thyristor from the inrush current. With this protection function enabled, when momentary power failure occurs, the instrument determines that the secondary side of a transformer was disconnected and suppresses the output.
  • Page 25  Display in case of break of secondary side of a transformer When the signal level goes below the determination set value in case of a break on the secondary side of the transformer, the displayed value flashes. (Parameters of input signal monitor 1 and phase angle ratio monitor flash) When the instrument is automatically released from the break (momentary power failure), the display stops flashing and remains lit.
  • Page 26 8. ERROR OR ALARM DISPLAYS When the error or alarm occurs, the display changes to the Error display. When two or more errors occur simultaneously, the error code numbers are totaled and displayed as one number. Error display E.1. 2. 2. Display the error number.
  • Page 27 External gradient set value: 0 to 100 % (Set by the setter Internal gradient set value: 0 to 100 % (0.00 to 1.00) (Set by the THV-1 front keys) Output limiter high set value: 0.0 to 99.9 % (Set by the THV-1 front keys) Output limiter low set value: 0.0 to 99.9 %...
  • Page 28 Safety standards: UL: UL508 (file No. E177758) cUL: C22.2 No.14 (file No. E177758) CE marking: THV-1 conforms to CE marking by using the noise filter. (Refer to P. 6) LVD: EN 60947-4-3 (Form 4) EMC: EN 60947-4-3 (Form 4) EMC test standards: Emissions The EMC emissions test standards required by the standard EN 60947-4-3 ‘Contactors and motor-starters...
  • Page 29 10. ACCESSORIES (OPTIONAL)  Setter (Potentiometer, Knob and Scale plate) Unit: mm 40 50 60 M9 × 0.75 Set the potentiometer full counterclockwise and combine with a scale plate.    φ16.1 When setting the knob on the scale plate, 13.5 10 10 φ2.8...
  • Page 30  Fuse holder (UL approved instrument) for 20 A and 30 A (1 circuit type) THVP-H04 Unit: mm 79.5 71.2 53.4 35.6 17.8 Rated current of fast-blow fuse (UL approved instrument) Details Rating Fast-blow fuse (UL approved 20 A instrument) for 20 A Fast-blow fuse (UL approved 32 A instrument) for 30 A...
