Sun Microsystems SPARCstation 10SX System Configuration Manual page 14

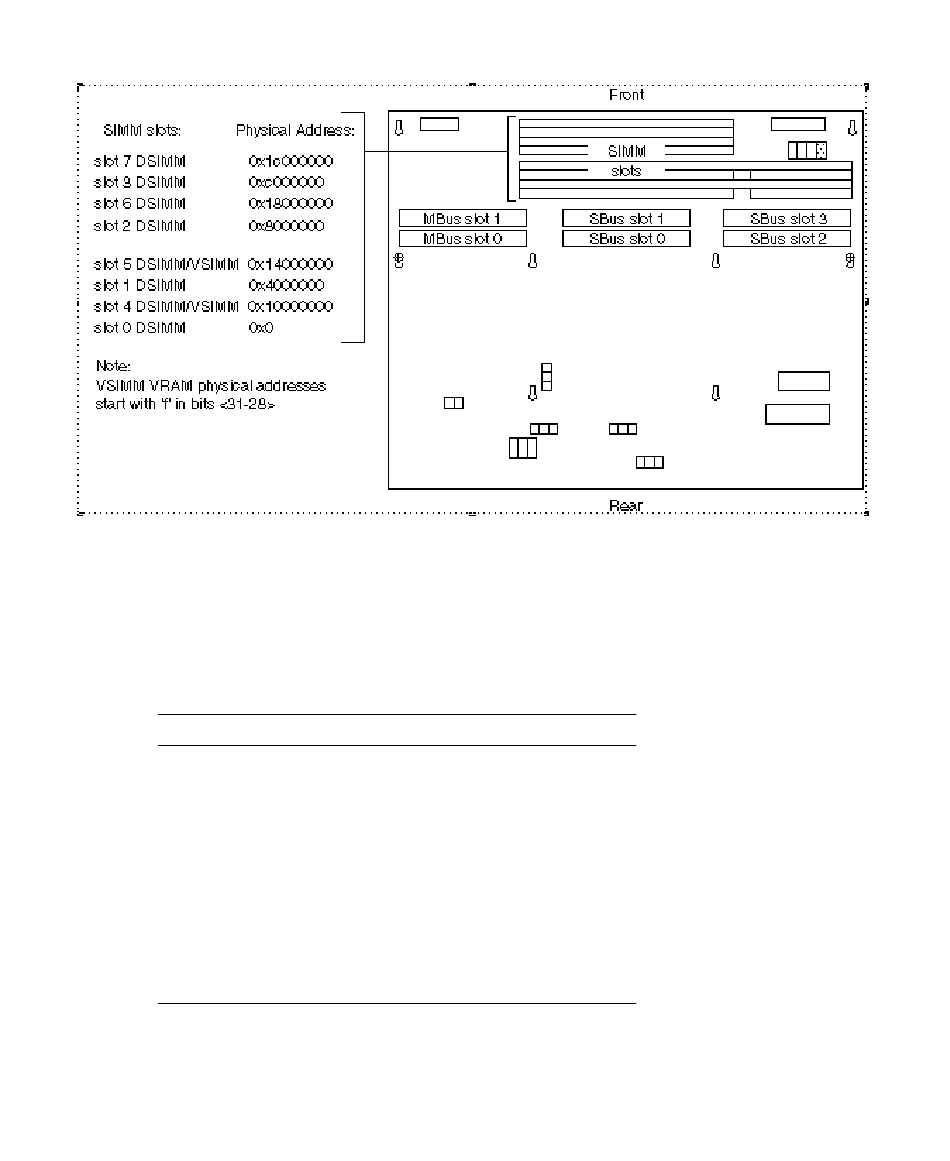

FIGURE 2-1
The table below illustrates the physical address map of a system configured with 16
MByte DSIMMS in all the slots
TABLE 2-1
SIMM Slots
Slot 7
Slot 3
Slot 6
Slot 2
Slot 5
Slot 1
Slot 4
Slot 0
6 Platform Notes: SPARCstation 10SX and SPARCstation 20 System Configuration Guide • February 2000
Memory Layout on Mother Board of SPARCstation 10SX
SPARCstation 10SX System Memory Layout
16 MByte DSIMMs only
DSIMM Size
16 MByte DSIMM
16 MByte DSIMM
16 MByte DSIMM
16 MByte DSIMM
16 MByte DSIMM
16 MByte DSIMM
16 MByte DSIMM
16 MByte DSIMM
Physical Address
0x1c000000
0xc000000
0x18000000
0x8000000
0x14000000
0x4000000
0x10000000
0x0
