Eaton Bussmann Series Installation Manual

Installation manual 3A3749 Rev B

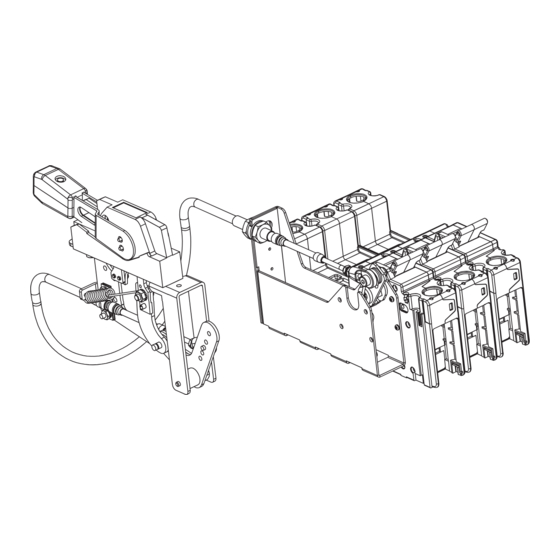

CCP2-FLC2-___ flange-cable operating mechanism
General information
These instructions cover the installation and
operation of the following Bussmann series flange
cable operating mechanisms installed on 2- or
3-pole versions of the fused 200 and 400 amp
Compact Circuit Protector (CCP2) switches, and
3-pole versions of the non-fused 200 and 400 amp
Compact Circuit Disconnect (CCD2) switches.
Catalog no.
CCP2-FLC2-36
CCP2-FLC2-36X
CCP2-FLC2-60
CCP2-FLC2-60X
CCP2-FLC2-120
CCP2-FLC2-120X
When installing the optional auxiliary contacts
(cat. no. CCP2-AUX-225) with the flange cable
operating mechanism, the auxiliary contacts must
be installed on the switch's left side.
Contents
Description
General information
Required tools
Hardware contents
Installation and adjustment
Flange drilling pattern
Effective October 2018
Supersedes July 2018
NEMA
Description rating
36" Cable with painted 1, 3R,
handle 12
36" Cable with chrome
4X
handle
60" Cable with painted 1, 3R,
handle 12
60" Cable with chrome
4X
handle
120" Cable with painted 1, 3R,
handle 12
120" Cable with chrome
4X
handle
Page
2-5
HAZARD OF ELECTRIC SHOCK,
EXPLOSION OR ARC FLASH
MAY RESULT IN DEATH OR
SERIOUS INJURY
Working on or near energized circuits
poses a serious risk of electric
shock. De-energize all circuits before
installing or servicing this equipment
and follow all prescribed safety
procedures.
Do not install or perform maintenance on
•
equipment while it's energized.
Death, severe personal injury or substantial
•
property damage can result from contact
with energized equipment. Always verify
that no voltage is present, and prescribed
safety and lockout/tagout procedures are
followed.
Eaton is not liable for the misapplication or
•
mis-installation of this product.
The user is cautioned to observe all
•
recommendations, warnings and cautions
relating to personnel and equipment safety,
as well as all general and local health and
safety laws, codes and procedures.
The recommendations and information
•
contained herein are based on experience
and judgment, but should not be
considered to be all-inclusive or covering
every application or circumstance which
may arise. If any questions arise, contact
the Bussmann Division for further
information or instructions.
1
2
2
6
