Owner's Manual
3-Port 4K Compact
HDMI Switch
Este manual está disponible en español en la página de
Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de
Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-
Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di
Eaton: Tripplite.Eaton.com/support

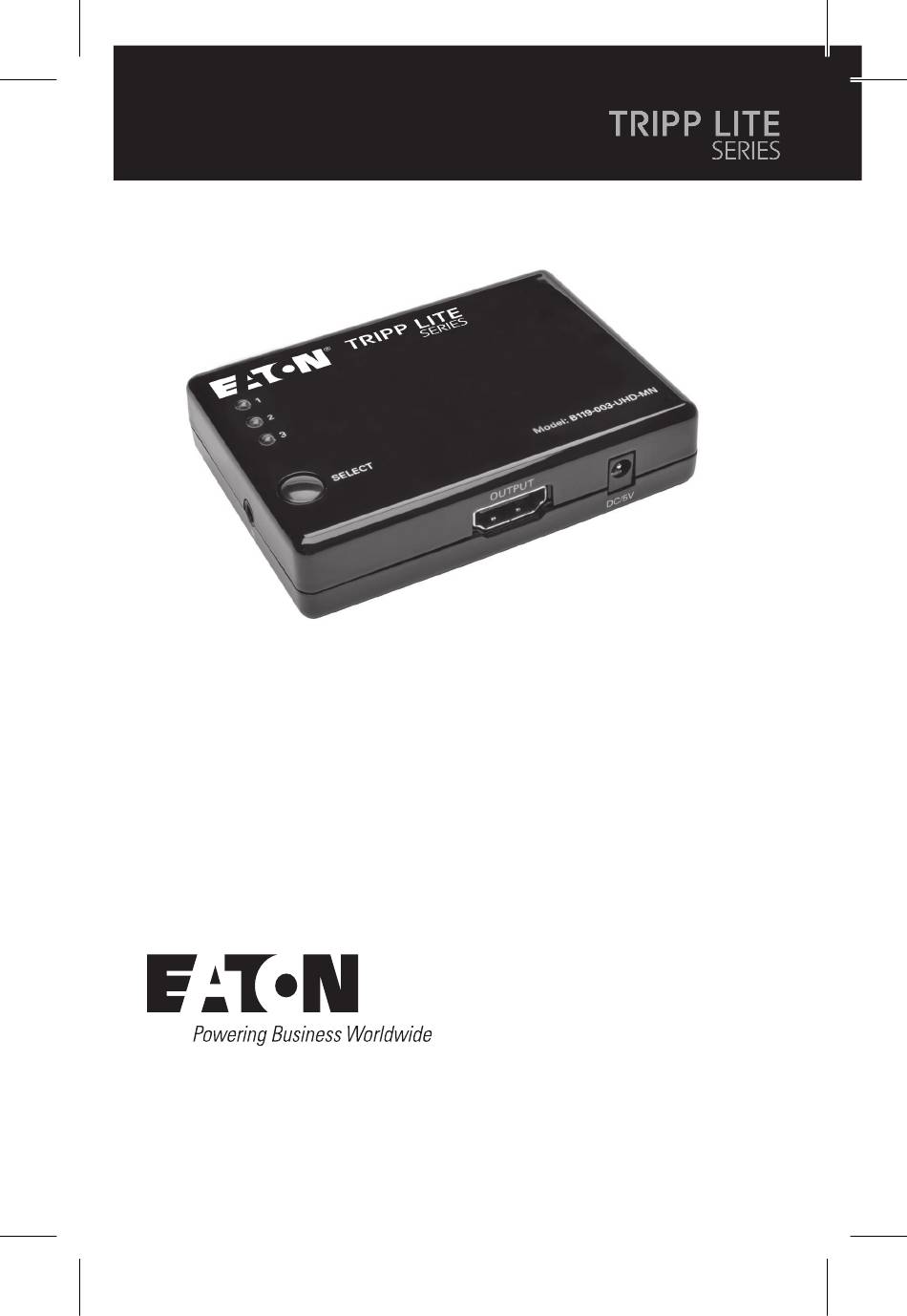

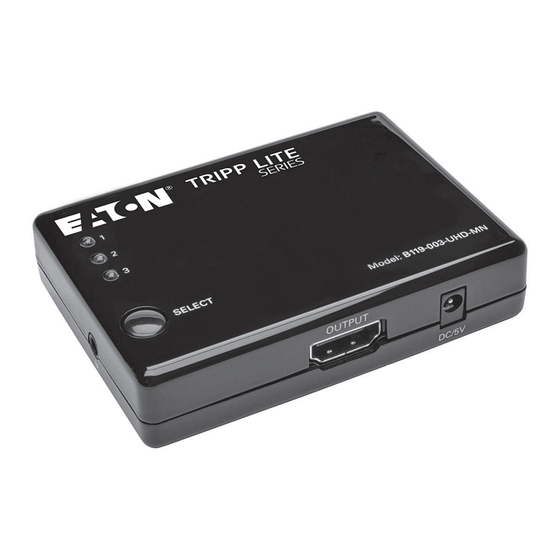

Model:
B119-003-UHD-MN
Purchased product
may differ from image.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE B119-003-UHD-MN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton TRIPP LITE B119-003-UHD-MN

Summary of Contents for Eaton TRIPP LITE B119-003-UHD-MN

  • Page 1 Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton- Website verfügbar: Tripplite.Eaton.com/support Questo manuale è disponibile in italiano sul sito web di Eaton: Tripplite.Eaton.com/support...

  • Page 2: Table Of Contents

    Table of Contents Package Contents ............2 Optional Accessories ..........2 Product Features ............3 Installation Instructions ..........4 Troubleshooting ............6 Specifications ..............8 Warranty and Product Registration ......9 Package Contents • B119-003-UHD-MN Compact 4K x 2K UHD HDMI Switch •...

  • Page 3: Product Features

    Product Features • Switch between three HDMI source devices connected to a single port on a monitor • Switch devices via pushbutton or the included remote control • Intelligent Auto Switching functionality automatically switches to the next powered-on device when the power to the current device is turned off* •...

  • Page 4: Installation Instructions

    Installation Instructions 1. Make sure the power to all devices that you will be connecting is turned off. 2. Optional: If you wish to extend the range of the included remote control, connect the included IR Extender Receiver to the IR port on the switch. Locate the receiver unit in an area that allows for a direct line of sight between it and the remote.
  • Page 5 Installation Instructions 7. Switch between source devices via the Select pushbutton on top of the unit or the included remote control. You can also let the Auto Switch functionality automatically switch to ports that are powered on. When multiple ports have powered-on devices connected to them, the B119-003-UHD-MN will switch to the lowest numbered port.

  • Page 6: Troubleshooting

    Troubleshooting If you are unable to get an acceptable image after following the installation instructions, try these troubleshooting tips: 1. Most HDMI source devices are able to provide the necessary power for the operation of the HDMI switch. However, in some situations, the power supply of the HDMI source device is insufficient, and additional power is required.
  • Page 7 Troubleshooting 5. What length HDMI cable are you using? (See the Installation section in this manual for details on the maximum cable distance.) The shorter the cable being used, the higher the resolution you will be able to obtain. If you are not able to get an acceptable image, try using a shorter cable or lowering your source’s video resolution or color depth settings.

  • Page 8: Specifications

    Specifications Connectors Input (x3) HDMI Female Output HDMI Female Video Maximum Resolution 3840 x 2160 (24 Hz or 30 Hz) Color Depth 48-bit Deep Color (16 bits per channel) Video Amplifier Bandwidth 3.4 Gbps / 340 Mhz Environmental Operating Temperature 32°...

  • Page 9: Warranty And Product Registration

    Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
  • Page 10 The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment.
  • Page 11 Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to: • Send old equipment for recycling on a one-for- one, like-for-like basis (this varies depending on the country) •...
  • Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 93347A United States Eaton.com © 2023 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 23-10-229 / All trademarks are 93-347A_RevC property of their December 2023 respective owners.
