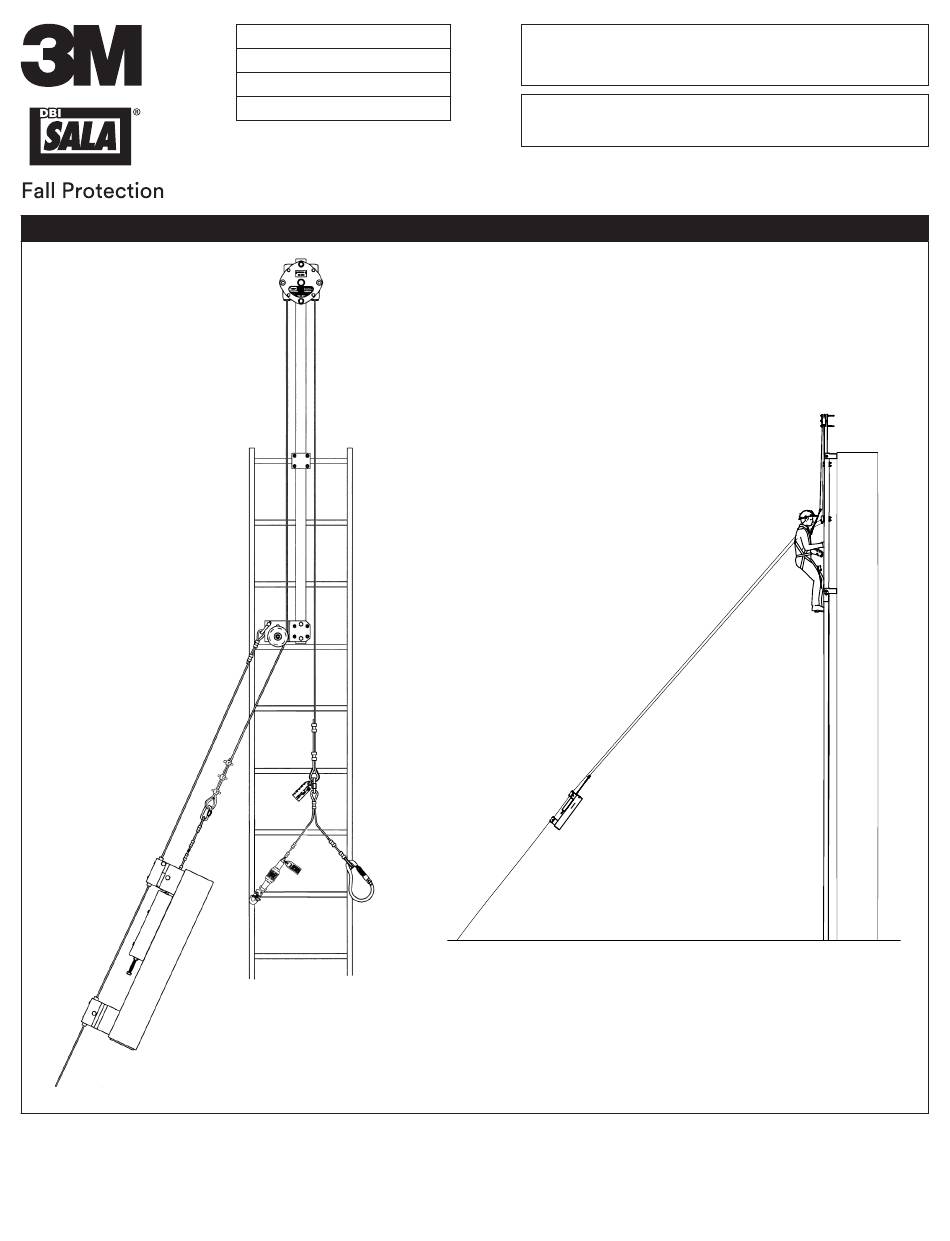

- Page 1 COUNTERwEIghT CLIMb ASSIST OSHA 1926.502(d)(12) OSHA 1926.502(d)(16)(iv) Climb Assist/Fall Arrest System OSHA 1926.502(d)(16)(ii) INSTRUCTION MANUAL OSHA 1910.140 5902147 REV. J © 3M 2019...
- Page 2 7-1/16” 4x 1/2” 9503194 7-1/16” 9501600 9501599 2104153 1200017 1200014...
- Page 5 ≤4 ft 20-25 ft-lbs 20-25 ft-lbs 45° 60° 75° 40 ft. 57 ft. 46 ft. 41 ft. (12.2 m) (17.4 m) (14 m) (12.5 m) 50 ft. 71 ft. 58 ft. 52 ft. (15.2 m) (21.6 m) (17.7 m) (15.8 m) 60 ft.
- Page 7 45° 60° 75° 130 lbs. 100 lbs. 90 lbs. 80 lbs. (59 kg) (45.4 kg) (40.8 kg) (36.3 kg) 140 lbs. 109 lbs. 97 lbs. 87 lbs. (63.5 kg) (49.4 kg) (44 kg) (39.5 kg) 150 lbs. 117 lbs. 104 lbs. 93 lbs.
- Page 9 THIS PRODUCT COMPLIES WITH THE FOLLOWING STANDARDS ONLY IF MARKED WITH THE CORRESPONDING LETTER CODE UNDER "STDS" SECTION BELOW: B = OSHA 1910.140 & 1926.502 D = ASTM F887 E = ANSI Z359.3 F = ANSI Z359.4 G = ANSI Z359.18 TYPE A MATERIAL DESIGNATION: LENGTH (FT.) IS DENOTED (IDENTIFIED AFTER MODEL NO.)
- Page 10 BE FOLLOWED. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH. MEMBERS ON RIG. CONTACT 3M FALL PROTECTION GROUP IF INSTRUCTION SHEET IS NEEDED. INSPECT BEFORE EACH USE. DO NOT USE IF WEAR OR DAMAGE IS PRESENT. * BLOCK MUST BE FIXED RIGID TO THE RIG USING MOUNTING HOLES PROVIDED.
-
Page 11: Safety Information
Ensure there is adequate fall clearance when working at height. Never modify or alter your fall protection equipment. Only 3M or parties authorized in writing by 3M may make repairs to the equipment. Prior to use of fall protection equipment, ensure a rescue plan is in place which allows for prompt rescue if a fall incident occurs. -
Page 12: Product Description
Before using this equipment, record the product identification information from the ID label in the ‘Inspection and Maintenance Log’ at the back of this manual. Always ensure you are using the latest revision of your 3M instruction manual. Visit the 3M website or contact 3M Technical Services for updated instruction manuals. -
Page 13: Component Specifications
Table 1 – Specifications Component Specifications: Parent Figure 2 Number Reference Component Materials Application Notes: 3511063 Safety Block Housing: Aluminum, Alloy Cover: Aluminum, alloy Pawl: Stainless Steel Drum: Steel, Plated Shaft: Steel, Plated Bearing: Bronze 3512XXX Cable Assembly 1/4 inch, 7x19 Galvanized Aircraft, 7000 lbs. The last three digits indicate 3530XXX 1/4 inch, 7x19 Stainless Steel Aircraft, 7000 lbs. -
Page 14: Product Application
4 Inspection Frequency: Extreme working conditions (harsh environments, prolonged use, etc.) may require increasing the frequency of Periodic Examinations. 5 Certified Installer: A person certified by 3M with extensive knowledge, training, and experience in the fall protection and rescue field who is capable of designing,... - Page 15 3M connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions. See Figure 4 for examples of inappropriate connections. Do not connect snap hooks and carabiners: To a D-ring to which another connector is attached.
-
Page 16: Installation
INSTALLATION Installation of the DBI-SALA Climb Assist/Fall Arrest System must be supervised by a Qualified Person¹. The installation must be certified by a Competent Person as meeting the criteria for a Certified Anchorage, or that it is capable of supporting the potential forces that could be encountered during a fall. PLANNING: Plan your fall protection system prior to installation of the Climb Assist/Fall Arrest System. - Page 17 Section 2 and a formal Rescue Plan is in place. Inspect the Climb Assist/Fall Arrest System per the ‘User’ inspection points defined in the “Inspection and Maintenance Log” (Table 2). If inspection reveals an unsafe or defective condition, do not use the system. Remove the system from service and destroy, or contact 3M regarding replacement or repair. INSPECTION INSPECTION FREQUENCY: The Climb Assist/Fall Arrest System must be inspected at the intervals defined in Section 2.
- Page 18 SERVICE: Only 3M or parties authorized in writing by 3M may make repairs to this equipment. If the Climb Assist/Fall Arrest System has been subject to fall force or inspection reveals an unsafe or defective conditions, remove the system from service and contact 3M regarding replacement or repair.
-
Page 19: Components: Inspection
Table 2 – Inspection and Maintenance Log Inspection Date: Inspected By: Competent Person or Certified Components: Inspection: User Installer Climb Assist/Fall Arrest Inspect the Climb Assist/Fall Arrest system for damage: Look for cracks, dents, or deformities. Look for bending or wear on the hooks, carabiners, wire rope clips, mast, counterweight, guy (Figure 2) wire, and safety block. - Page 20 LIMITED REMEDY: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M’s control.
