Frigidaire CRA122CT11 Installation Instructions

Compact window mounting (10-12k btu)
Hide thumbs

Advertisement

Quick Links

READ BEFORE INSTALLING
UNIT

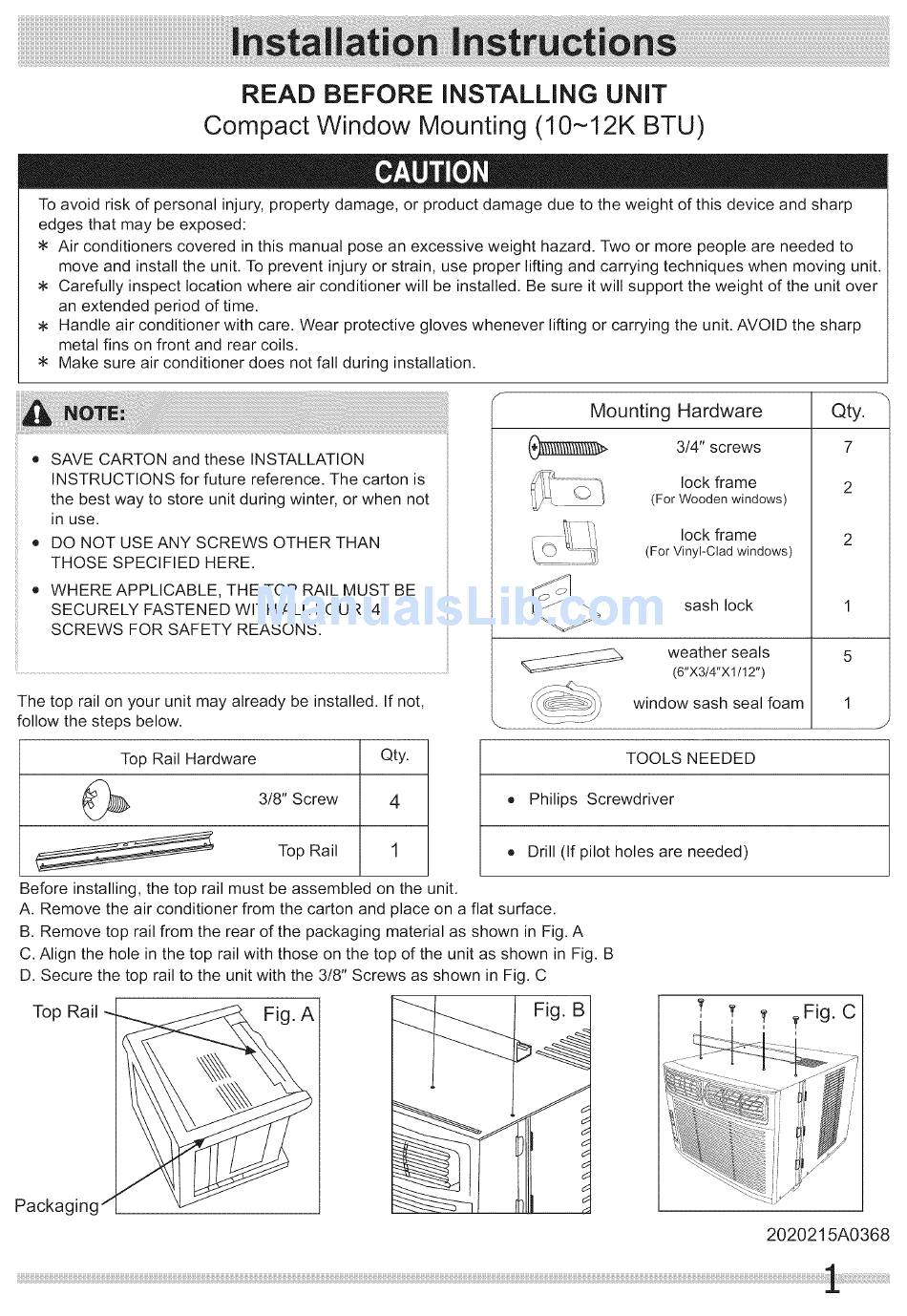

Compact Window Mounting (10-12K
BTU)
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp
edges that may be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to
move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit over
an extended period of time.
Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp
metal fins on front and rear coils.
Make sure air conditioner does not fall during installation.
• SAVE CARTON and these INSTALLATION
INSTRUCTIONS
for future reference. The carton is
the best way to store unit during winter, or when not
in use.
• DO NOT USE ANY SCREWS OTHER THAN
THOSE SPECIFIED HERE.
• WHERE APPLICABLE, THE TOP RAIL MUST BE
SECURELY FASTENED WITH ALL FOUR (4)
SCREWS FOR SAFETY REASONS.
The top rail on your unit may already be installed. If not,
follow the steps below.
f
Qty.
Mounting
Hardware
3/4" screws
lock frame
(For Wooden windows)
lock frame
(For Vinyl-Clad windows)
sashlock
weather seals
(6"X3/4"X 1/12")
window sash seal foam
7
2
Top Rail Hardware
Qty.
3/8" Screw
4
Top Rail
1
TOOLS NEEDED
Philips Screwdriver
• Drill (If pilot holes are needed)
Before installing, the top rail must be assembled on the unit.
A. Remove the air conditioner from the carton and place on a flat surface.
B. Remove top rail from the rear of the packaging material as shown in Fig. A
C. Align the hole in the top rail with those on the top of the unit as shown in Fig. B
D. Secure the top rail to the unit with the 3/8 °'Screws as shown in Fig. C
Top Rail
Fig. A
_
Fig. B
Packaging
_.
[
2020215A0368

Advertisement

loading

  Summary of Contents for Frigidaire CRA122CT11

  • Page 1 READ BEFORE INSTALLING UNIT Compact Window Mounting (10-12K BTU) To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may be exposed: Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install the unit.
  • Page 2 LEFT + RIGHT FILLER PANEL ASSEMBLY NOTE: Top Rail and Side Panels at each side are offset to provide the proper pitch to the rear of (5/16"). This is necessary for proper condensed water utilization and drainage, if you are not using the Side Panels for any reason, this pitch to the rear must be maintained! Place unit on floor, a bench or a table.
  • Page 3 Keepa firmgripontheairconditioner, carefully placetheunitintothewindow opening sothebottom oftheair conditioner frameis against thewindow sill(FIG. 6 A& FIG. 6 B).Carefully c lose thewindow behind thetop rail oftheunit. FIG. 6B _" OUTSIDE OUTSIDE INSIDE 1 Wooden Windows Vinyl-Clad Windows Extend the side panels out against the window frame (FIG. 7A for wooden windows), (FIG.
  • Page 4 To secure lower sash in place, attach right angle sash lock with 3/4" (19mm) screw as shown (FIG. 10). NOTE: It is difficult to lock the windows with the sash lock for Vinyl-Clad windows, so you can use lock by window itself.
