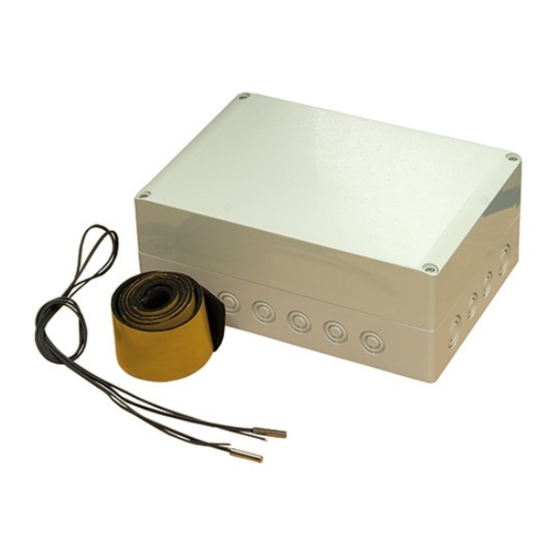

Nibe AXC 40 Installer Manual
Accessory card for s1155/s1255/vvm s320/vvm s325/f1145/f1155/f1245/f1255/vvm 225/vvm 320/vvm 325
Hide thumbs
Also See for AXC 40:
- Installer manual (72 pages) ,
- Installer manual (64 pages) ,
- Installer manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for Nibe AXC 40
Summary of Contents for Nibe AXC 40
- Page 1 IHB EN 1934-9 031444 AXC 40 Installer Manual S1155/S1255/VVM S320/VVM S325 Accessory card F1145/F1155/F1245/F1255/VVM 225/VVM 320/VVM 325...
-
Page 3: Table Of Contents
Electrical circuit diagram 5 Step controlled additional heat General Pipe connections Outline diagram Electrical connection Program settings Electrical circuit diagram 6 Hot water comfort General Pipe connections Outline diagram Electrical connection Program settings Electrical circuit diagram AXC 40 Chapter |... -
Page 4: Important Information
This symbol indicates danger to person or ma- chine . Caution This symbol indicates important information about what you should consider when installing or servicing the installation. This symbol indicates tips on how to facilitate using the product. Chapter 1 | Important information AXC 40... -
Page 5: General
This accessory, which includes a freestanding electric Compatible products control module, is used to allow connection and control of the following accessory functions. An AXC 40 is re- AXC 40 is suitable for the following main products: quired for each function. -
Page 6: Component Placing Axc Module (Aa25)
AA25-X1 ELECTRICAL COMPONENTS Accessory card AA5-S2 DIP switch AA5-X2 Terminal block, inputs AA5-X4 Terminal block, communication AA5-X9 Terminal block, outputs AA25-FC1 Miniature circuit-breaker AA25-X1 Terminal block, power supply Designations according to standard EN 81346-2. Chapter 2 | General AXC 40... -
Page 7: Common Electrical Connection
VVM S320/VVM S325 to 50 m, for example EKKX, LiYY or equivalent. AA2-X30 • AXC 40 must be installed via an isolator switch. The cable area has to be dimensioned based on the fuse rating used. • Mark the relevant electrical cabinet with a warning... -
Page 8: Power Connection
Power connection Connect the power supply cable to terminal block AA25- X1 as illustrated. Tightening torque: 0.5-0.6 Nm. External AXC 40 Externt ProduktNamn AA25-X1 Chapter 3 | Common electrical connection AXC 40... -
Page 9: Shunt Controlled Additional Heat
(BT25). The heat pump/indoor module controls a shunt valve SHUNT VALVE (QN11) and a circulation pump (GP10) via AXC 40. If the The shunt valve (QN11) must be placed on the supply heat pump/indoor module cannot manage to maintain... -
Page 10: Outline Diagram
An external switch function (NO) can be connected to AA5-X2:21-22 to block additional heat. The switch must EXPLANATION be potential-free and a closed switch results in blocking. Mixing valve controlled additional heat, boiler AA5-X2 AA25 AXC 40 BT52 Boiler sensor GP10 External circulation pump AXC-kort AXC 40 QN11... - Page 11 Connect a twin core cable of the type LiKK, EKKX or equivalent to AA5-X2:5 (0-10 V) and AA5-X2:6 (GND). AA5-X2 AA5-X2 AXC 40 External At 0 V the shunt is closed and at 10 V the shunt is open. AXC 40 Chapter 4 | Shunt controlled additional heat...
-
Page 12: Program Settings
Here you can force control the various components in Program settings the installation. The most important safety functions remain active however. Program setting of AXC 40 can be performed via the start guide or directly in the menu system. NOTE Start guide Forced control is only intended to be used for troubleshooting purposes. -
Page 13: Electrical Circuit Diagram
Electrical circuit diagram AXC 40 Chapter 4 | Shunt controlled additional heat... -
Page 14: Step Controlled Additional Heat
With AXC 40, three potential-free relays can be used for additional heat control, which then gives max. 3 linear or 7 binary steps. -
Page 15: Outline Diagram
Real installations must be planned according to applic- able standards. More system principles can be found at nibe.eu. EXPLANATION Step controlled additional heat AA25 AXC 40 GP10 Circulation pump, heating medium external EB100 Heat pump BT25 External supply temperature sensor... -
Page 16: Electrical Connection
The DIP switch (S2) on the accessory card (AA5) must Caution be set as follows. The relay outputs on the accessory board can have a max load of 2A (230V) in total. CONNECTION OF THE CIRCULATION PUMP (GP10) Chapter 5 | Step controlled additional heat AXC 40... -
Page 17: Program Settings
Program settings Program setting of AXC 40 can be performed via the start guide or directly in the menu system. START GUIDE The start guide appears upon first start-up after the heat pump installation, but is also found in menu 7.7. - Page 18 Forced control is only intended to be used for troubleshooting purposes. Using the function in any other way may cause damage to the components in your climate system. Caution Also see the Installer Manual for the main product. Chapter 5 | Step controlled additional heat AXC 40...
-
Page 19: Electrical Circuit Diagram
Electrical circuit diagram AXC 40 Chapter 5 | Step controlled additional heat... -
Page 20: Hot Water Comfort
AB (always open). • Connect the outgoing hot water from the water heater to the mixer valve to port A (opens on signal) Chapter 6 | Hot water comfort AXC 40... -
Page 21: Outline Diagram
Real installations must be planned according to applic- able standards. More system principles can be found at nibe.eu. -X10 Hot water comfort AA25 AXC 40 GP11 Hot water circulation pump Mixer valve, hot water 12 13 14 15 16 17 18 19... - Page 22 Connect the auxiliary relay for switching the additional heat on and off to AA5-X9:1 (N) and AA5-X9:2 (230V). External AXC 40 Externt Produktnamn AA5-X9 AA5-X9 External auxiliary relay Externt hjälprelä Extra Extra varmvatten hot water Chapter 6 | Hot water comfort AXC 40...
-
Page 23: Program Settings
Activated if mixer valve is here. During the set periods, the hot water circulation installed and it is to be controlled from AXC 40. When pump will run according to the settings above. the option is active, you can set the outgoing hot water "Operating time."... -
Page 24: Electrical Circuit Diagram
Electrical circuit diagram Chapter 6 | Hot water comfort AXC 40... -
Page 25: Ground Water System
Ground water system General NOTE Sensor and communication cables must not With AXC 40 a ground water pump can be connected be laid near power cables. to the heat pump if the software controlled output (AUX output) is used for something else. -
Page 26: Electrical Connection
Blocking stops automatically, when the temperature on (BT58) rises by two degrees above the set temperature. The default setting for the alarm is deactivated. Connect (BT57) to AA5-X2:17-18 on AXC 40 the access- ory board. DIP SWITCH Connect (BT58) to AA5-X2:19-20 on AXC 40 the access- The DIP switch (S2) on the accessory card (AA5) must ory board. -
Page 27: Program Settings
Program settings Program setting of AXC 40 can be performed via the start guide or directly in the menu system. START GUIDE The start guide appears at first start-up after the heat pump installation, but can also be found in menu 7.7. -
Page 28: Electrical Circuit Diagram
Electrical circuit diagram Chapter 7 | Ground water system AXC 40... -
Page 29: Technical Data
-25 – 70 Ambient temperature °C 5 – 35 Program cycles, hours 1, 24 Program cycles, days 1, 2, 5, 7 Resolution, program min. Dimensions LxWxH 175x250x100 Weight 1.47 AXC 40 Part No. 067 060 AXC 40 Chapter 8 | Technical data... - Page 30 Electrical circuit diagram 13 Step controlled additional heat General Pipe connections Outline diagram Electrical connection Program settings Electrical circuit diagram 14 Hot water comfort General Pipe connections Outline diagram Electrical connection Program settings Electrical circuit diagram Chapter | AXC 40...
-
Page 31: Important Information
This symbol indicates danger to person or ma- chine . Caution This symbol indicates important information about what you should consider when installing or servicing the installation. This symbol indicates tips on how to facilitate using the product. AXC 40 Chapter 1 | Important information... -
Page 32: General
This accessory, which includes a freestanding electric Compatible products control module, is used to allow connection and control of the following accessory functions. An AXC 40 is re- AXC 40 is suitable for the following main products: quired for each function. -
Page 33: Component Placing Axc Module (Aa25)
AA25-X1 ELECTRICAL COMPONENTS Accessory card AA5-S2 DIP switch AA5-X2 Terminal block, inputs AA5-X4 Terminal block, communication AA5-X9 Terminal block, outputs AA25-FC1 Miniature circuit-breaker AA25-X1 Terminal block, power supply Designations according to standard EN 81346-2. AXC 40 Chapter 2 | General... -
Page 34: Common Electrical Connection
0.5 mm² up AA3-X4 AA3-X4 to 50 m, for example EKKX, LiYY or equivalent. • AXC 40 must be installed via an isolator switch. The cable area has to be dimensioned based on the fuse rating used. AA3-X4 •... -
Page 35: Power Connection
Power connection Connect the power supply cable to terminal block X1 as illustrated. Tightening torque: 0.5-0.6 Nm. AXC 40 External ProduktNamn Externt AXC 40 Chapter 3 | Common electrical connection... -
Page 36: Shunt Controlled Additional Heat
(BT25). The heat pump/indoor module controls a shunt valve SHUNT VALVE (QN11) and a circulation pump (GP10) via AXC 40. If the The shunt valve (QN11) must be placed on the supply heat pump/indoor module cannot manage to maintain... -
Page 37: Outline Diagram
AA5-X2:21-22 to block additional heat. The switch must EXPLANATION be potential-free and a closed switch results in blocking. Mixing valve controlled additional heat, boiler External blocking AA25 AXC 40 BT52 BT52 Boiler sensor GP10 External circulation pump QN11 Mixing valve, addition... - Page 38 Connect a twin core cable of the type LiKK, EKKX or equivalent to AA5-X2:5 (0-10 V) and AA5-X2:6 (GND). Externt External AXC 40 AXCkort AA5-X2 At 0 V the shunt is closed and at 10 V the shunt is open. Chapter 4 | Shunt controlled additional heat AXC 40...
-
Page 39: Program Settings
Program settings Caution Also see the Installer Manual for the main Program setting of AXC 40 can be performed via the product. start guide or directly in the menu system. Start guide The start guide appears at first start-up after the heat pump installation, but can also be found in menu 5.7. -
Page 40: Electrical Circuit Diagram
Electrical circuit diagram Chapter 4 | Shunt controlled additional heat AXC 40... -
Page 41: Step Controlled Additional Heat
With AXC 40, three potential-free relays can be used for additional heat control, which then gives max. 3 linear or 7 binary steps. -
Page 42: Outline Diagram
Real installations must be planned according to applic- able standards. More system principles can be found at nibe.eu. EXPLANATION Step controlled additional heat AA25 AXC 40 GP10 Circulation pump, heating medium external EB100 Heat pump BT25 External supply temperature sensor... -
Page 43: Electrical Connection
The relay outputs on the accessory board can have a max load of 2A (230V) in total. The DIP switch (S2) on the accessory card (AA5) must be set as follows. AXC 40 Chapter 5 | Step controlled additional heat... -
Page 44: Program Settings
Program settings Program setting of AXC 40 can be performed via the start guide or directly in the menu system. START GUIDE The start guide appears upon first start-up after the heat pump installation, but is also found in menu 5.7 . -
Page 45: Electrical Circuit Diagram
Electrical circuit diagram AXC 40 Chapter 5 | Step controlled additional heat... -
Page 46: Hot Water Comfort
T-pipe to port B on the mixer valve (closes at signal). • Connect the mixed water to the do- mestic hot water taps from the mix- er valve to the common port AB (always open). Chapter 6 | Hot water comfort AXC 40... -
Page 47: Outline Diagram
Real installations must be planned according to applic- able standards. More system principles can be found at nibe.eu. -X10 Hot water comfort AA25 AXC 40 GP11 Hot water circulation pump Mixer valve, hot water 12 13 14 15 16 17 18 19... - Page 48 Connect the auxiliary relay for switching the additional heat on and off to AA5-X9:1 (N) and AA5-X9:2 (230V). AXC 40 External External auxiliary relay External auxiliary relay AA5-X9 Additional Extra Hot Water Hot water Chapter 6 | Hot water comfort AXC 40...
-
Page 49: Program Settings
Program settings Caution Also see the Installer Manual for the main Program setting of AXC 40 can be performed via the product. start guide or directly in the menu system. START GUIDE The start guide appears at first start-up after the heat pump installation, but can also be found in menu 5.7. -
Page 50: Electrical Circuit Diagram
Electrical circuit diagram Chapter 6 | Hot water comfort AXC 40... -
Page 51: Ground Water System
Ground water system General NOTE Sensor and communication cables must not With AXC 40 a ground water pump can be connected be laid near power cables. to the heat pump if the software controlled output (AUX output) is used for something else. -
Page 52: Electrical Connection
Blocking stops automatically, when the temperature on (BT58) rises by two degrees above the set temperature. The default setting for the alarm is deactivated. Connect (BT57) to AA5-X2:17-18 on AXC 40 the access- ory board. Connect (BT58) to AA5-X2:19-20 on AXC 40 the access- ory board. -
Page 53: Program Settings
The DIP switch (S2) on the accessory card (AA5) must be set as follows. Program settings Program setting of AXC 40 can be performed via the start guide or directly in the menu system. START GUIDE The start guide appears at first start-up after the heat pump installation, but can also be found in menu 5.7. -
Page 54: Electrical Circuit Diagram
Electrical circuit diagram Chapter 7 | Ground water system AXC 40... -
Page 55: Technical Data
-25 – 70 Ambient temperature °C 5 – 35 Program cycles, hours 1, 24 Program cycles, days 1, 2, 5, 7 Resolution, program min. Dimensions LxWxH 175x250x100 Weight 1.47 AXC 40 Part No. 067 060 AXC 40 Chapter 8 | Technical data... -
Page 59: Contact Information
Tel: +46 (0)433-27 3000 kuzmin@evan.ru info@nibe.se nibe-evan.ru nibe.se SWITZERLAND NIBE Wärmetechnik c/o ait Schweiz Industriepark, CH-6246 Altishofen Tel. +41 (0)58 252 21 00 info@nibe.ch nibe.ch For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information. - Page 60 WS release date: 2019-08-29 16:23 Publish date: 2019-09-03 09:46 This manual is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this manual.
