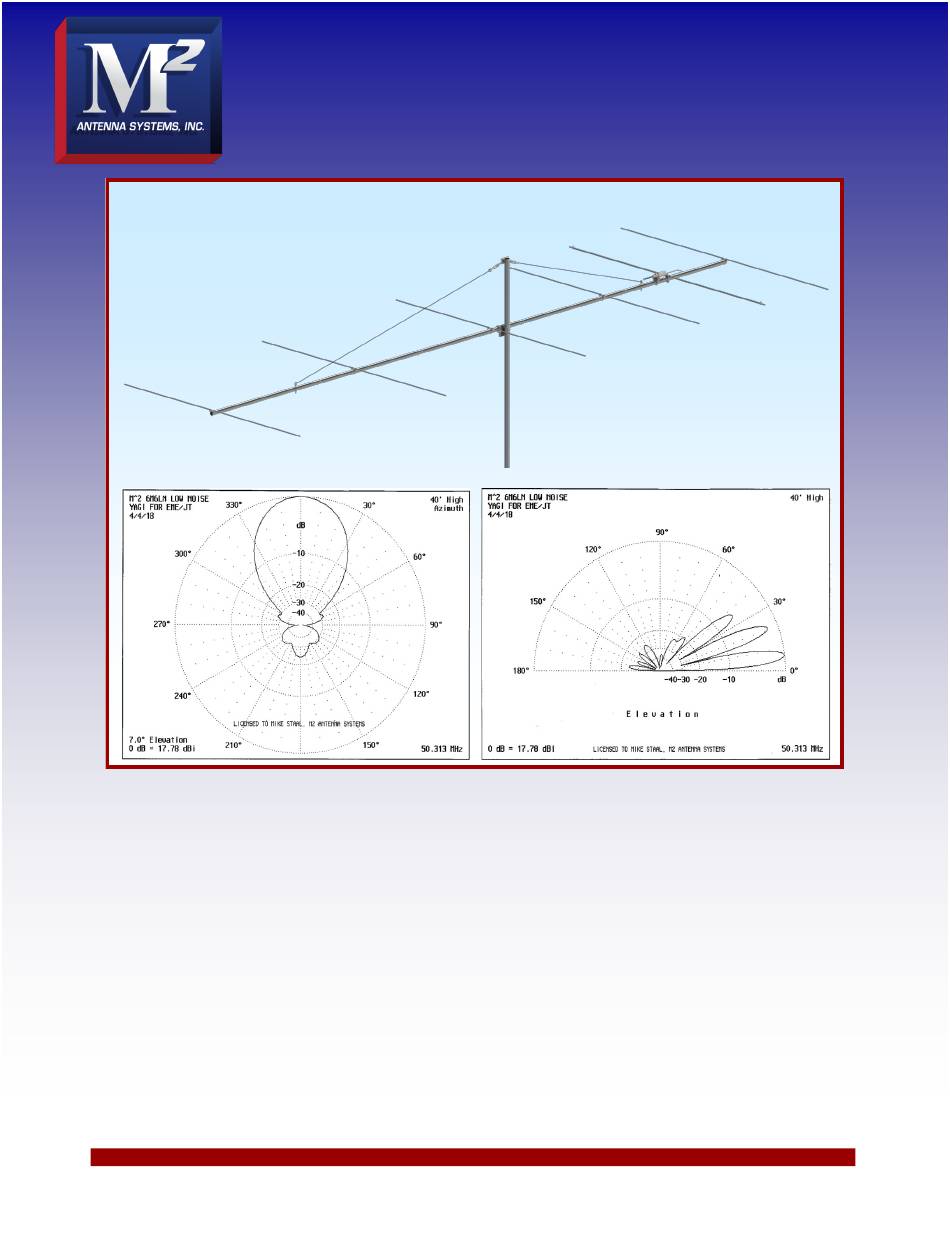

M2 Antenna Systems 6M6LN Manual

SPECIFICATIONS:
Model ........................................ 6M6LN
Frequency Range ...................... 50.0 To 50.7 MHz
Gain ........................................... 11.9 dBi*
*Gain Ref to Ground 40' ............ 17.75 dBi **
Front to back .............................. 24 dB Min.**
Beamwidth ............................... E=50° H=54°
Feed type ................................... Hairpin Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR........................ 1.5:1 Nominal
*Subtract 2.14 from dBi for dBd
FEATURES:

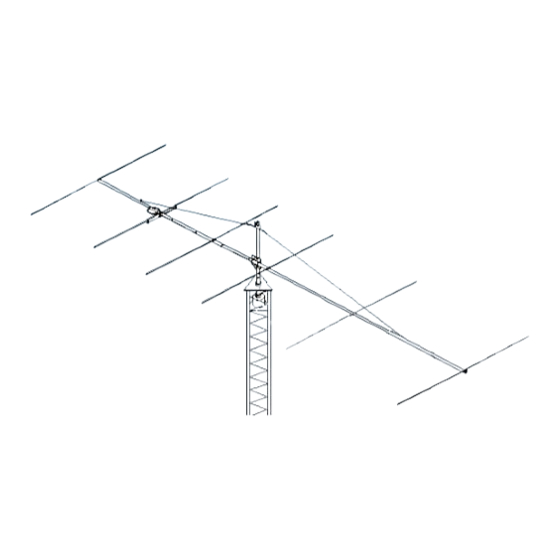

The 6M6LN is M2 Antenna Systems' newest 6M Yagi. The design requirements for this antenna were low noise
and wide bandwidth. With the current trend up in frequency for FT8 and other digital modes, many antennas have a high-
er VSWR at the current activity centers. The 6M6LN was designed with this in mind. The 6M6LN was optimized for low
noise in both the E and H planes, providing a low, total noise pattern. The 6M6LN is made with the same M2 Quality as
all of our products and uses no hose clamps or unsealed feed points. It is also a great building block for a two or four Ya-
gi array, with a stacking distance similar to our 6M5XHP. The boom length is a manageable 24 feet long.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 6M6LN
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2018 M2 Antenna Systems Incorporated
Input Connector.......................... "UHF" Female
Power Handling .......................... 1.5 kW
Boom Length / Dia ..................... 24' 0" / 1-1/2"
Maximum Element Length ......... 9' 8-1/8"
Turning Radius: .......................... 13' 7"
Stacking Distance ...................... 20' High & 20' Wide
Mast Size ................................... 2" (1-1/2" optional)
Wind Area / Survival .................. 2.7 Sq. Ft. / 85 MPH
Weight / Ship Wt. ....................... 18 Lbs. / 20 Lbs.
**Referenced at a 40' install height.
4/452018
REV B
