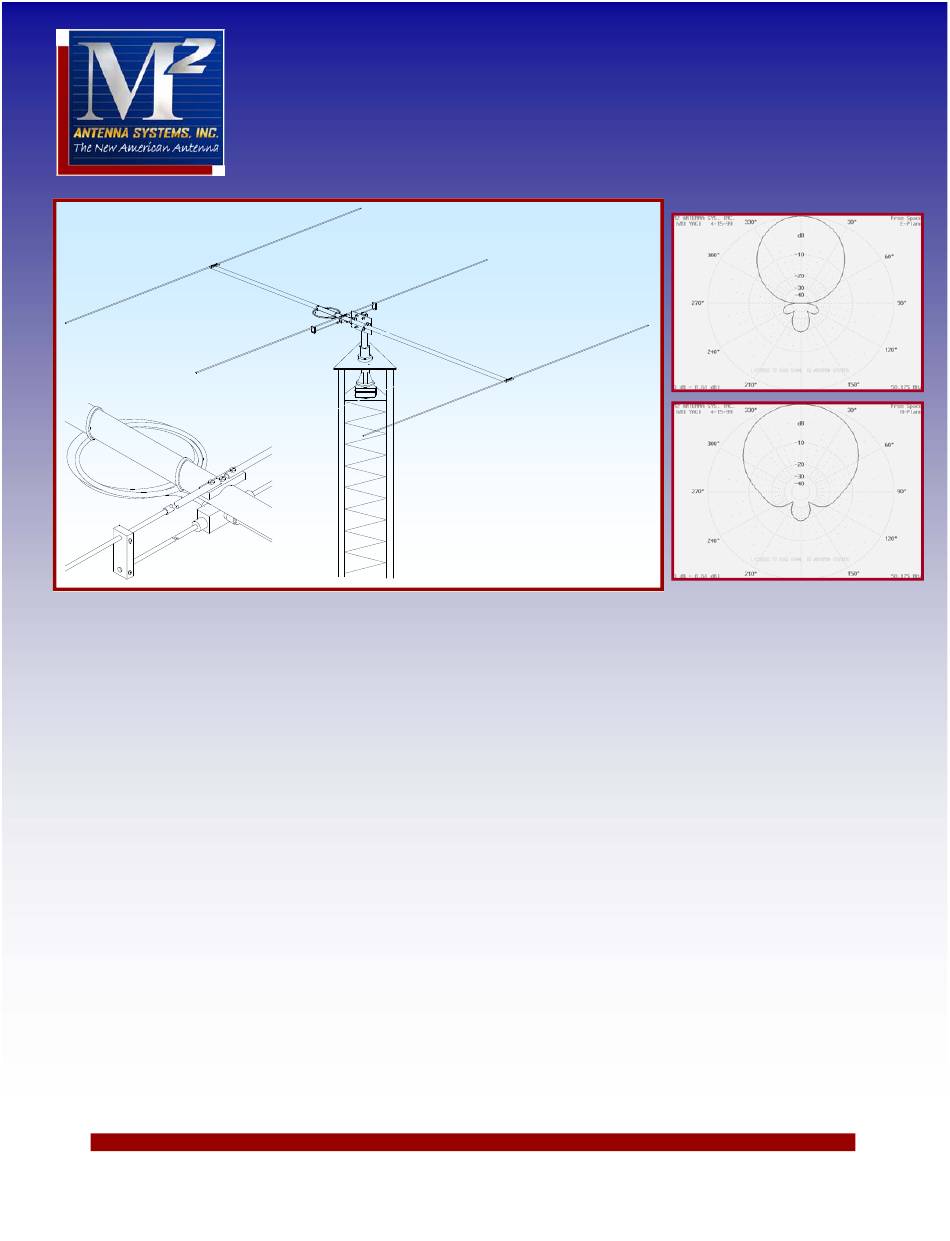

M2 Antenna Systems 6M3 Quick Start Manual

SPECIFICATIONS:
Model ........................................ 6M3
Frequency Range ...................... 50.0 To 50.6 MHz
Frequency Range ...................... 51.0 To 54.0 MHz
*Gain .......................................... 8.2 dBi
Front to back.............................. 20 dB Typical
Beamwidth ............................... E=64° H=90°
Feed type ................................... "T" Match
Feed Impedance........................ 50 Ohms Unbalanced
Maximum VSWR ....................... 1:1 @ 50.75 mHz
FEATURES:

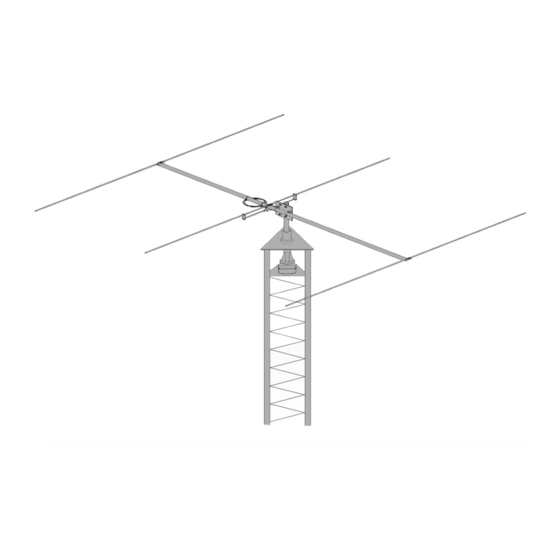

The 6M3 is a light but rugged computer optimized Yagi offering low wind load and great performance for its size.
It will compliment the rest of your antennas and tower system. Quick and easy to assemble, it is also great for mountain
topping, grid expeditions and DXpeditions. The 6M3 features the same machined aluminum mounting blocks and sealed
'T' match block that its big brothers use. The 6M3 is perfect for the ham trying 6 meters for the first time or the the sea-
soned vet who may stack them for improved gain. For the serious 6 meter enthusiast, it provides and effective, inexpen-
sive building block for vertical stacks and MOONBOUNCE arrays. A tuning chart is included for the FM band
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2011 M2 Antenna Systems Incoporated
Model No: 6M3
Input Connector ......................... SO-239
Power Handling.......................... 3 kW
Boom Length / Dia ..................... 6' 9" / 1-1/2"
Maximum Element Length ......... 9' 8"
Turning Radius:.......................... 6' 3"
Stacking Distance ...................... 14' High & 18' Wide
Mast Size ................................... 1-1/2" to 2" Nom.
Wind area / Survival................... 1.2 Sq. Ft. / 100 MPH
Weight / Ship Wt. ....................... 6 Lbs. / 8 Lbs.
7/20/11
Rev.01
