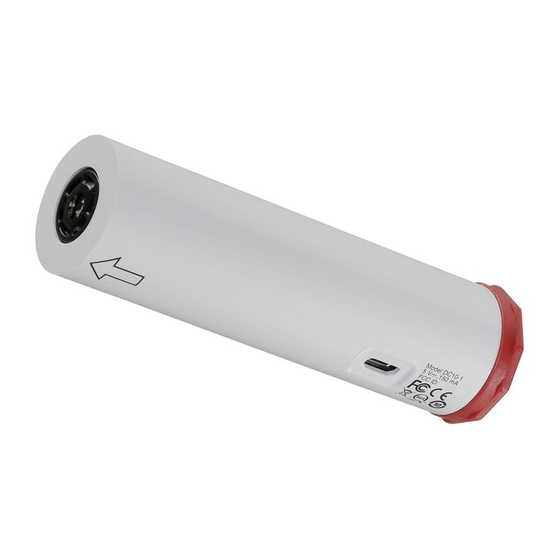

- Page 1 Datacolor ColorReaderPRO Model DC10-1 User Guide...
- Page 2 Rev B, October 2018 All efforts have been made to ensure the accuracy of the information presented in this format. However, should any errors be detected, Datacolor appreciates your efforts to notify us of these oversights. Changes are periodically made to this information and are incorporated into forthcoming versions.
-
Page 3: Table Of Contents
CONTENTS DATACOLOR COLORREADERPRO ............................1 ..................................... 1 NTRODUCTION PRO G ........................2 ATACOLOR OLOR EADER ENERAL NFORMATION GETTING STARTED ................................4 ’ ? ..................................4 S IN THE ............................4 NSTRUMENT ONTROLS AND NDICATORS ....................................6 LEEP MOBILE APPLICATION ................................7 .................................. - Page 4 This page intentionally left blank • iv Datacolor ColorReaderPRO...
-
Page 5: Datacolor Colorreaderpro
You can also use Datacolor ColorReaderPRO as a stand-alone tool. When you measure a color in stand-alone mode, the OLED screen displays the top 3 color numbers of the closest matches within the fan decks synced with the device. -
Page 6: Datacolor Colorreaderpro General Information
• Compliance and certification information Serial Number The serial number is programmed into Datacolor ColorReaderPRO. It is displayed on the side panel display during product startup, bottom of the box, and in the mobile application under the device tab. Instrument Maintenance There are no user-serviceable parts for this equipment. - Page 7 Follow all instructions and warnings provided with the unit. • Read all instructions carefully before connecting the device to charge. Mobile Application Requirements The requirements to run Datacolor ColorReaderPRO mobile application include: Device Operating System iPhone® IOS® v. 9.3 or higher iPad®...
-
Page 8: Getting Started
On/Off and Measurement Button • Press the button to activate the device. • Press the button to measure a color. • To turn off the device, press and hold the button until the display goes blank. • 4 Datacolor ColorReaderPRO... - Page 9 They include the collection name and color number. Battery Information and LED Indicator Datacolor ColorReaderPRO is equipped with a rechargeable lithium battery. A micro-USB cable is provided to charge the unit. When fully charged, the charge is good for 500 measurements.
-
Page 10: Sleep Mode
Sleep Mode Datacolor ColorReaderPRO will go to sleep when it is inactive for more than 5 minutes. When the device is in sleep mode and you try to access it through the mobile application, it will ask you to wake the unit. -
Page 11: Mobile Application
Mobile Application Getting Started To install the Datacolor ColorReader mobile application: • Install the ColorReader mobile application from the Apple App Store or Google Play Store. • Plug in your device to charge, then Wake the unit by pressing the on/off button at the top. -
Page 12: Device Registration
Device Registration When you connect your charged Datacolor ColorReaderPRO to the mobile application for the first time, the software guides you through a registration process. You must register the Datacolor ColorReaderPRO to use it. 1. Launch the Datacolor ColorReader mobile application. -
Page 13: Main Screen
Main Screen Below is the Datacolor ColorReaderPRO main screen. You can access the application features from the icons at the bottom of the screen. Device History Colors Palettes Calibration Calibrate the device every 8 hours to account for any changes in the device over time. This ensures that the measurements remain consistent over time. -
Page 14: Sample Measurement
Press the button at the top of the instrument. The display screen and/or mobile application screen immediately displays the results. Search Results When you measure a sample, Datacolor ColorReader mobile application finds the closest matches stored in its fan deck database. It automatically displays the 3 closest matches on the portable device. -
Page 15: Device
This option gives you access to Sync Fan Decks, Registration, Device Info, Calibration, and Support options. Registration Use this option if you are given an access code after you have registered your device. 1. Tap Device, Registration. Enter the access code you were provided. 2. Tap Register. • 11 Datacolor ColorReaderPRO... - Page 16 Calibration for instructions. Support Use this option to be sent directly to our Datacolor ColorReaderPRO online support site where you can submit a ticket or call our representatives for any issues you may be experiencing. 1. Tap Device, then Support. Click Contact Customer Support to open the support site in a internet browser window.
-
Page 17: Sync Fan Decks
Fan deck names in gray identify the fan decks available in the cloud that you can add to your device. NOTE If you purchased Datacolor ColorReaderPRO from a paint manufacturer or other 3 party supplier, they may download fan deck data to your unit before sending it to you. If you find fan deck data installed on your unit immediately after registration, use the Sync option to add fan decks that you want to use. - Page 18 3. Tap Sync Fan Decks to start the sync. IMPORTANT Each time you sync the device, it erases all the fan decks from the Datacolor ColorReaderPRO device. When you sync the device again, the procedure downloads all of the fan decks selected for the current sync.
-
Page 19: Manage Project Colors
Manage Project Colors Datacolor ColorReader mobile application includes three data management options: History, Colors and Palettes. • History. Displays the colors measured using Datacolor ColorReaderPRO • Colors. Displays the fan decks included in the database • Palettes. Displays the colors selected for each project you are... - Page 20 See for instructions. Fan Deck Search Selection 4. Once you have decided on your coordinated colors, you can tap Save as Palette. See for instructions. Palette Management • 16 Datacolor ColorReaderPRO...
- Page 21 2. You can now take readings and see if the new measurements are within an acceptable deltaE specified by the manufacturer (1 deltaE is recommended) of the original measurement that was set as your standard with easy to read Pass/Fail indicators. • 17 Datacolor ColorReaderPRO...
-
Page 22: Colors Management
Search in the top right corner and select select one of the fan decks. a color. You will see the details of the color you selected. You can add this color to a palette. Add to Palette for instructions. • 18 Datacolor ColorReaderPRO... - Page 23 Get Match; or measure a color. You will see a list of all the fan Tap on an individual fan deck to activate or deactivate decks on the device. for the search. Tap Match. • Red: Activated • Gray: Deactivated • 19 Datacolor ColorReaderPRO...
- Page 24 Color Journeys was activated, the results were immediately updated: Color Preview Matches Color Journeys Matches You can select multiple fan The application will find the best matches from all fan decks for the search. decks selected. • 20 Datacolor ColorReaderPRO...
-
Page 25: Palette Management
Palette Management Using the Datacolor ColorReader mobile application, you measure samples and find the closest color matches in your database. When you make a final color selection, you can store it in a palette. Palettes are collections of the colors you select for a specific project. - Page 26 Replace the default palette name with one of your choice. 5. Tap in the default color label field and enter a label as needed. Tap Back. The color you added displays in the palette on the Palettes List. • 22 Datacolor ColorReaderPRO...
- Page 27 Tap one to display the details. or measure a color. Tap to select one of the View Palette displays. Tap Back. palettes. You can add a label to the color as an additional reference. See Edit Palette Colors for instructions. • 23 Datacolor ColorReaderPRO...
- Page 28 1. Tap on Palettes, select a palette and select the pencil icon next to the individual color to be edited. 2. Tap in the color label field to display the keyboard. Enter the label. Click Back. • 24 Datacolor ColorReaderPRO...
- Page 29 3. Choose the application you would like to use to share. A link will be created and added to the message section of your chosen platform. • 25 Datacolor ColorReaderPRO...
-
Page 30: Stand-Alone Functions
Display device information Color Lookup When you are not connected to the mobile application and you measure a color, Datacolor ColorReaderPRO will display the 3 closest matches it finds on the device display. It displays the fan deck name on the first line and color number on the second line. -
Page 31: Appendix
Consult the dealer or an experienced radio/TV technician for help. Pursuant to Part 15.21 of the FCC rules, any changes or modifications to this equipment not expressly approved by Datacolor may cause harmful interference and void the FCC authorization to operate this equipment.
