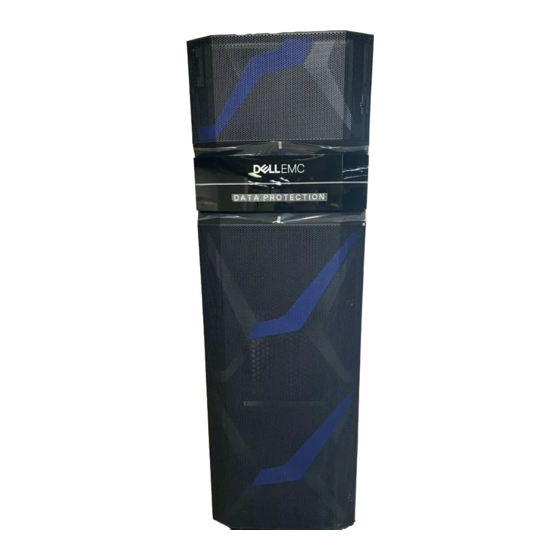

40U-P Cabinet
Unpacking and Setup Guide
Rev. Rev 02
July 2020
This Unpacking and Setup Guide contains information about the 40U-P cabinet. Topics include:
•
.........................................................................................................................................................................................................2
•
required..............................................................................................................................................................................................................2
•
acclimation.................................................................................................................................................................................................2
•
•
•
•
ramp........................................................................................................................................................................................ 6
•
•
cabinet................................................................................................................................................................................... 8
•
requirements................................................................................................................................................................................................... 8
•
brackets........................................................................................................................................................................................11
•
strip.........................................................................................................................................................................................12
•
cabinet................................................................................................................................................................................................... 13
•
•
help......................................................................................................................................................................................................... 15
Regulatory Model: 300-000-239
cabinet..........................................................................................................................................................................3
cabinet................................................................................................................................... 3
brackets....................................................................................................................................................................5
ramp................................................................................................................................................................................7
only)......................................................................................................................................14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40U-P and is the answer not in the manual?

Questions and answers

Related Manuals for Dell EMC 40U-P

Summary of Contents for Dell EMC 40U-P

  • Page 1: Table Of Contents

    40U-P Cabinet Unpacking and Setup Guide Rev. Rev 02 July 2020 This Unpacking and Setup Guide contains information about the 40U-P cabinet. Topics include: • Before you start .........................................2 • Tools required..........................................2 • Hardware acclimation.........................................2 • Steps to unpack and setup cabinet..................................3...

  • Page 2: Before You Start

    Before you start This section contains important information you should read prior to unpacking and setting up the 40U-P cabinet. CAUTION: Some products are designed for installation by trained service personnel only. Attempts by unqualified personnel to set up and start certain products may result in system damage and may void product warranties. Contact your representative for detailed warranty, installation, and initialization policies.

  • Page 3: Steps To Unpack And Setup Cabinet

    If the last 24 hours of the TRANSIT/STORAGE environment …and the OPERATING …then let the system or was: environment is: component acclimate in the new environment this many hours: Damp >30% RH Hot >72°F (22°C) Dry <30% RH Humid 30–45% RH Hot >72°F (22°C) Humid 45–60% RH <86°F (30°C)
  • Page 4 CL4691 2. Do not pull a ramp down from the top. To release the ramp from the pallet, grasp the ramp, pull it straight back toward you, then pull it straight up to free it from the screws.

  • Page 5: Remove The Cabinet Shipping Brackets

    Rear Bracket Bracket Screws Rotated 90 EMC3552 3. Remove the plastic covering from the cabinet. Remove the cabinet shipping brackets Steps 1. At the rear of the cabinet, remove the rear shipping bracket, by removing the bolts that go through the bracket to the cabinet and into the pallet.

  • Page 6: Attach The Unloading Ramp

    Attach the unloading ramp Steps 1. Insert the ramp brackets into the pallet notches in the rear of the pallet. 2. If your shipment includes a two-piece ramp, attach part A to the pallet and part B to part A.

  • Page 7: Roll The Cabinet Down The Ramp

    CL4692 Roll the cabinet down the ramp About this task NOTE: Make certain the leveling feet are secured in the UP position before moving the cabinet. Secured feet allow the cabinet to roll off the ramp and into position. If you need to adjust the leveling feet, use the 6mm hex key (top access) or an adjustable wrench (bottom access) to turn the feet counter-clockwise.

  • Page 8: Position And Level The Cabinet

    To determine your site requirements, use the published technical specifications and device rating labels. This will help provide the current draw of the devices in each rack. The total current draw for each rack can then be calculated. For Dell EMC products, visit the "Dell EMC Power Calculator"...
  • Page 9 Table 1. Single-phase power connection requirements (continued) Specification North American International and Australian 3 wire connection (2 L and 1 G) 3 wire connection (1 L, 1 N, and 1 G) Frequency 50 - 60 Hz 50 - 60 Hz Circuit breakers 30 A 32 A...
  • Page 10 Table 3. Three-phase AC power connection requirements (continued) Specification North American (Delta) International and Australian (Wye) 4 wire connection (3 L and 1 G) 5 wire connection (3 L, 1 N, and 1 G) • One 32 A, three-phase drop per zone •...

  • Page 11: Attach (Optional) Brackets

    Attach (optional) brackets We strongly recommend that you secure your cabinet to the floor with stabilizing brackets. Make sure the cabinet is in its final location before attaching the brackets, then use the supplied bolts and mounting holes to attach them to the cabinet and floor About this task CL4830 Figure 1.

  • Page 12: Install The Lower Trim Strip

    CL4833 Figure 3. Seismic bracket (installed on the front, back, and sides of the cabinet) Install the lower trim strip This procedure describes how to install the lower trim strip. About this task NOTE: If the cabinet is shipped with a front door, there is no need to install the lower front bezel/trim strip. Steps 1.

  • Page 13: Ground The Cabinet

    Figure 5. Attaching lower trim strip Ground the cabinet Equipment correctly installed within the cabinet is grounded through the AC power cables and connectors. In general, supplemental grounding is not required. About this task If your site requires external grounding (for example, to a common grounding network beneath the site floor), you can use the grounding lugs provided on each of the cabinet’s lower power distribution panels (PDP).

  • Page 14: Repackaging Shipping Material (2-Piece Ramp Kits Only)

    Repackaging shipping material (2-piece ramp kits only) About this task Follow these steps to repackage the shipping material: Steps 1. Lay each of the outer sleeves flat, then fold it lengthwise before collapsing the three sections, as shown: CL4690 2. Stack the shipping brackets on the pallet, as shown: CL4697 3.

  • Page 15: If You Need Help

    6. Band the unit with shipping straps as shown: CL4751 7. Use the following information to determine how to return the repackaged shipping material: • If the carrier unpacked the cabinet, the carrier handles the return shipment to the packaging supplier. •...
  • Page 16 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
